Installation
Signal cable connection
for use with LightwaveRF
2-Way Dimmer only
(LOW VOLTAGE: Do not
connect to live mains!)

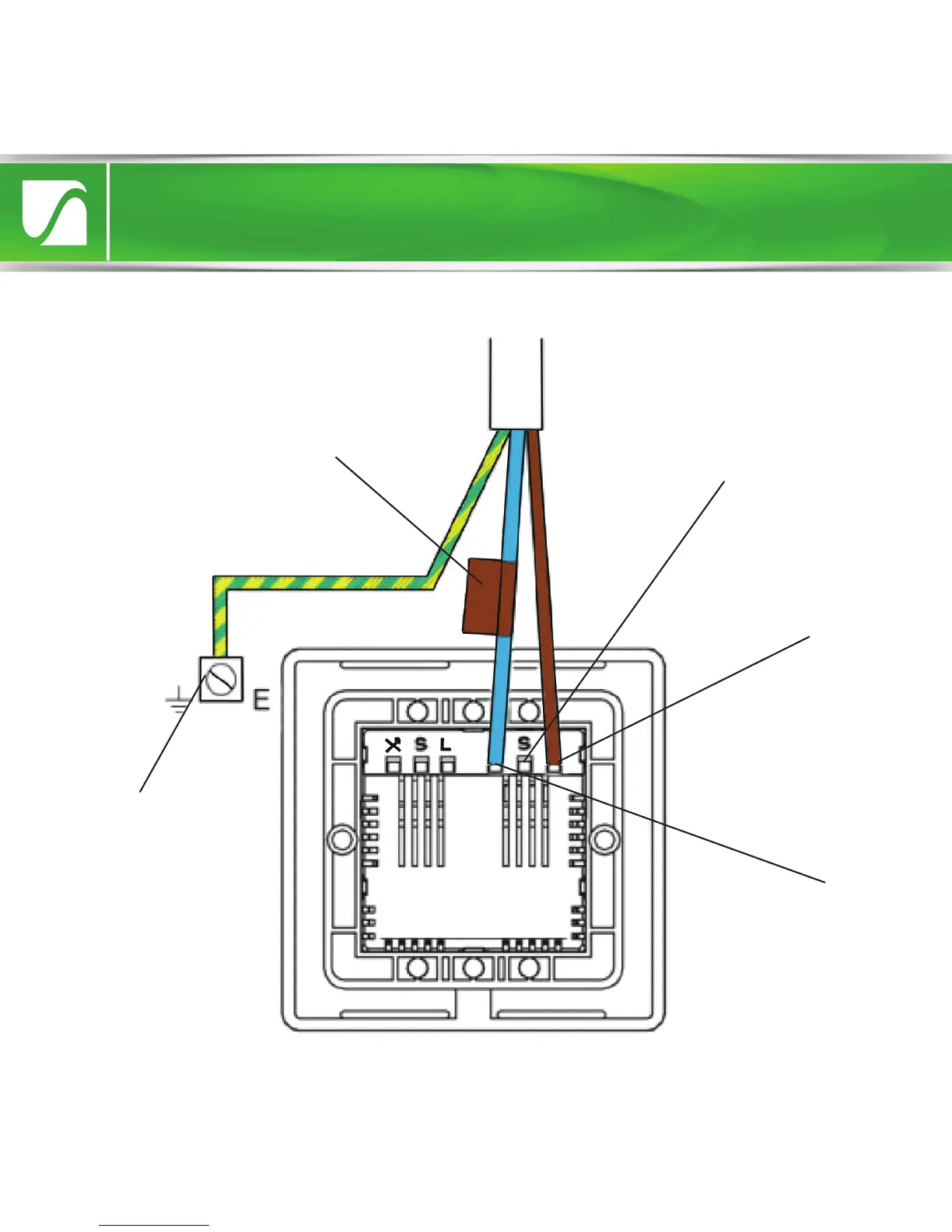

Earth wire connects
to terminal in back
box (can be capped
o instead if no
terminal present).
Live wire In. This
should be brown
or red in colour.
Switched live
wire out. This
should be
blue or black
in colour.
The switched live may
be marked by brown/red
tape to emphasise that
it is not a neutral wire.
NOTE: Wiring shown for one of two
gangs. Please repeat for other gang.
