3. MATCHED CABLES
Match cable

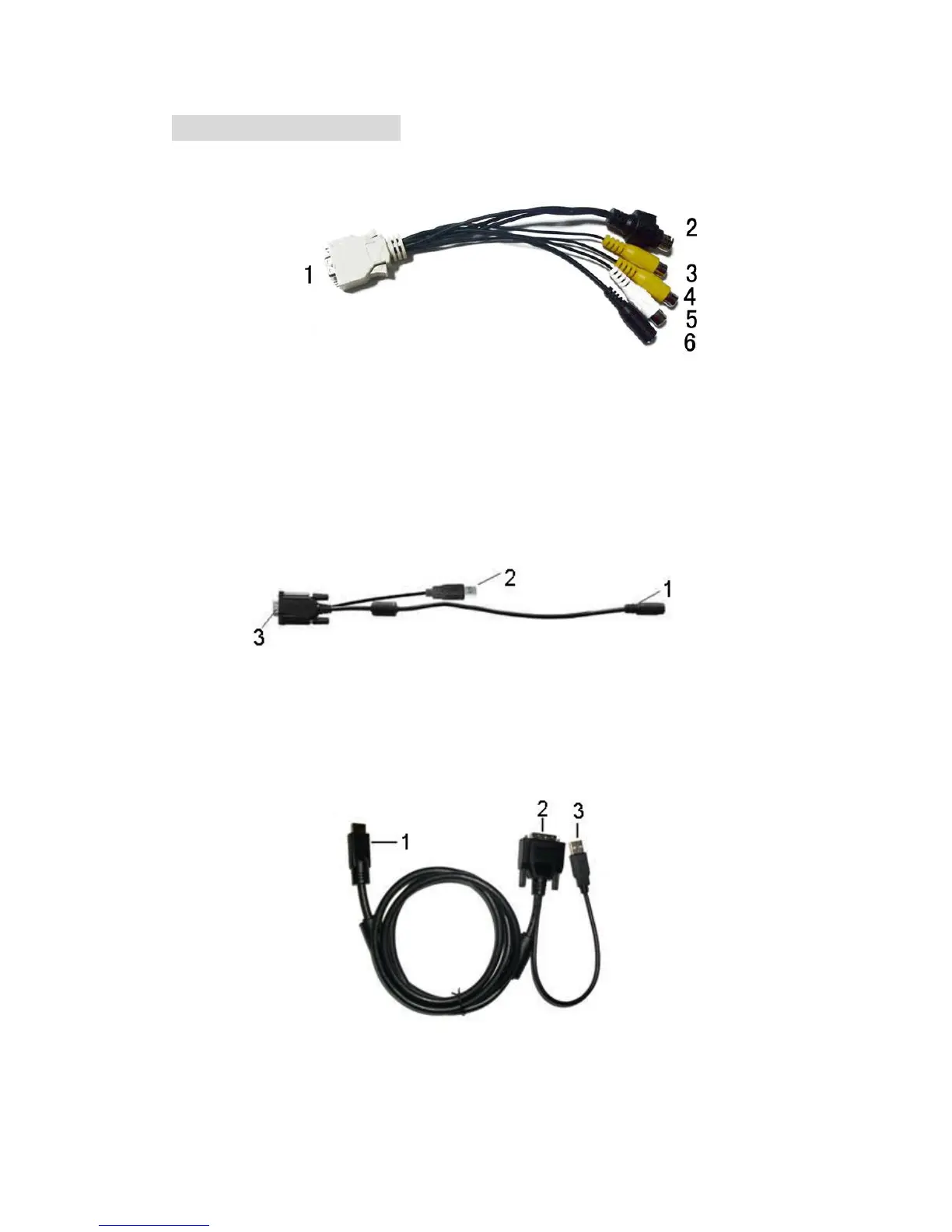

SKS cable:
1. 14P SKS Input Jack: all kinds of AV signal input, note that put it correctly into the
SKS input jack of the monitor
2. Black 9-pin VGA signal input jack
3. Yellow RCA: Video signal 1 input
4. Yellow RCA: Video signal 2 input
5. White RCA: Audio signal input
6. Black Jack: DC 12V Power input
VGA cable
1. Black 9-pin VGA connector, contact to the 9-pin VGA signal input jack of SKS
cable.
2. USB end connect the USB port of computer for touch screen function.
3. 15-pin VGA signal input end connect VGA port of the computer.
HDMI to DVI cable:
1. HDMI signal input end
2. DVI signal input connect with device with DVI signal
3. USB connect with the USB port of computer for touch functionOptional
