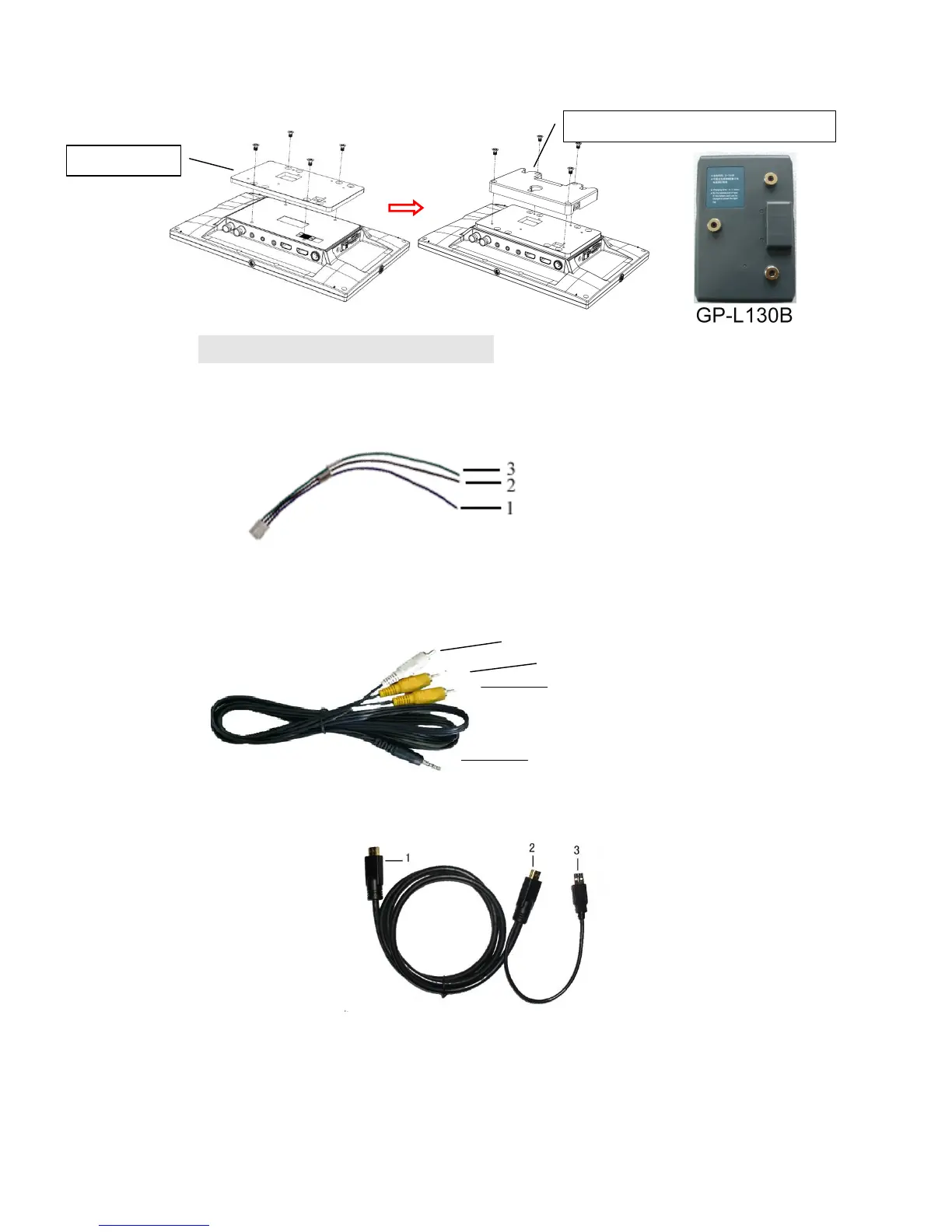

Anton Bauer mount battery plate (optional): Please refer to
GP-L130B type battery specifications.
4. WIRING INSTRUCTIONS
I/O control line
1. Blue: Video trigger 1
2. Back: GND
3. Green: Video trigger 2
Composite cable
White: audio
Yellow: video 1
Yellow: video 2
A/V signal input
HDMI to HDMI cable
1. HDMI signal input end
2. HDMI signal input connect device with HDMI signal
3. USB port connect computer for touch function (optional)
Plate Bracket
Anton Bauer Mount Battery Plate
