Page 145 of 295
The adapter 1015W9003 includes a screw that is halfway mounted, thus everything as one part.
Screw head torx size: T15
Screw torque: 1.2 ± 0.2 Nm

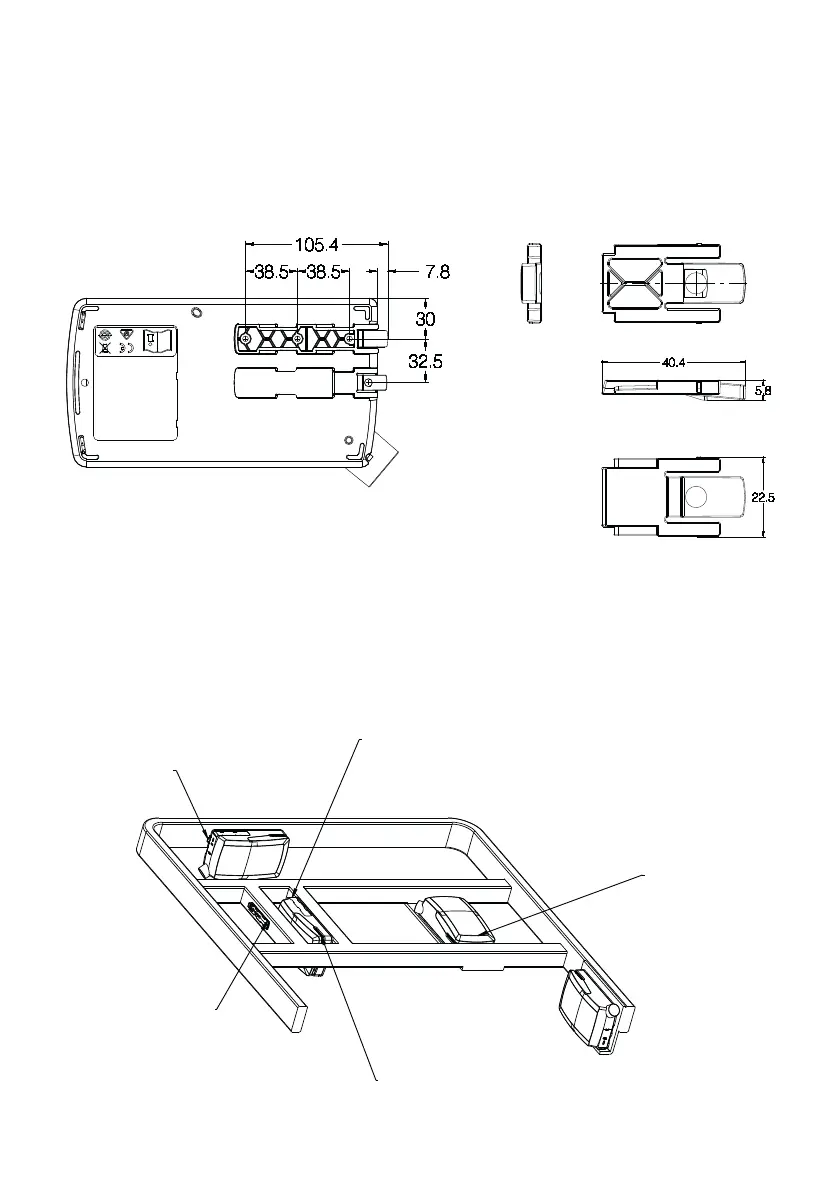

Mounted on frame
Drawing No.: 1013W4008
Screw bracket spacer
Article No. 1015W1001
Drawing No.: 1054W4001
Release hookRelease hook
Easy-mount bracketEasy-mount bracket
3-way cable exit3-way cable exit
Very small built-in dimension:Very small built-in dimension:
Height: min. 80 mm (lid can be removed)Height: min. 80 mm (lid can be removed)
Length: + 20 mm (locking system)Length: + 20 mm (locking system)
Service lidService lid
Integrated hingeIntegrated hinge
Removable if neededRemovable if needed
