MJB5 Plus mounting without bracket
MJB5 Plus can be mounted directly on the application from the MJB5 Plus side or via the top.
It is recommended to use screw type DIN912 M4 for mounting without the bracket.
When mounting, ensure that a screw torque limit of 1.0 Nm is not exceeded.

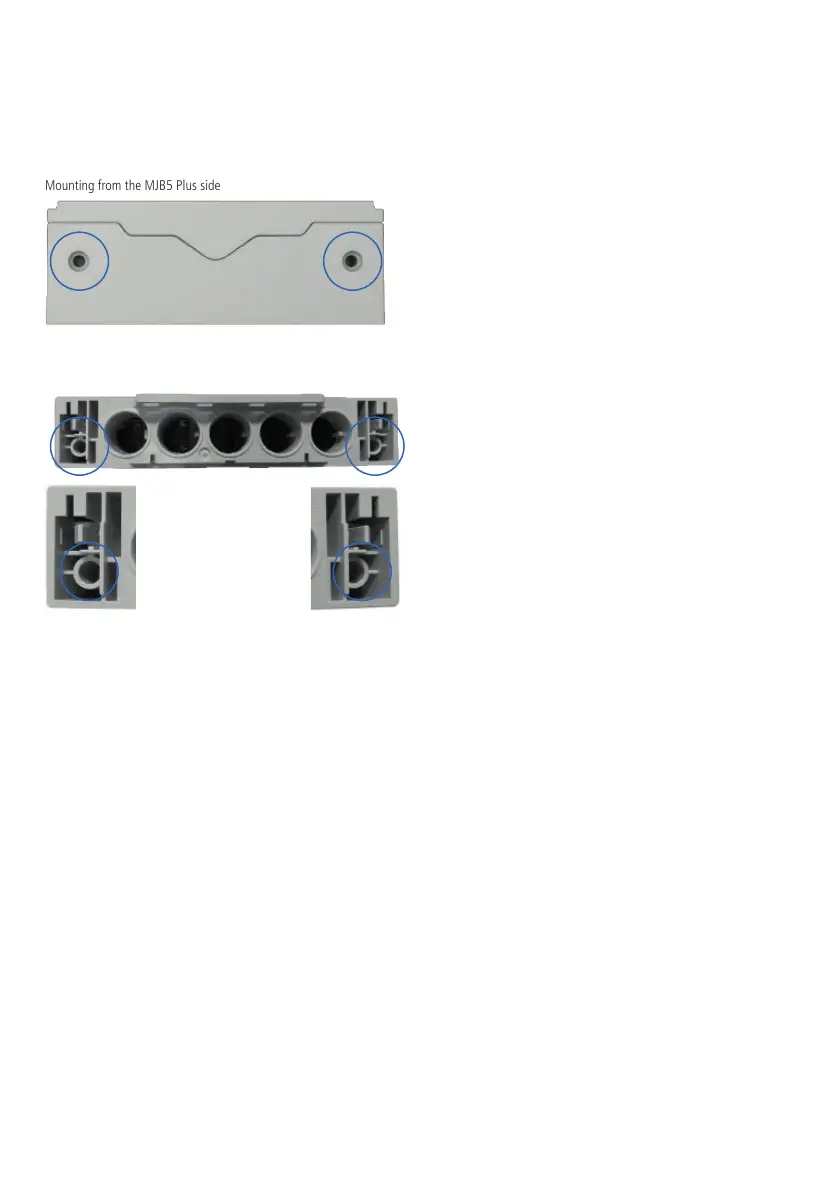

Mounting from the MJB5 Plus side
Mounting from the MJB5 Plus top
