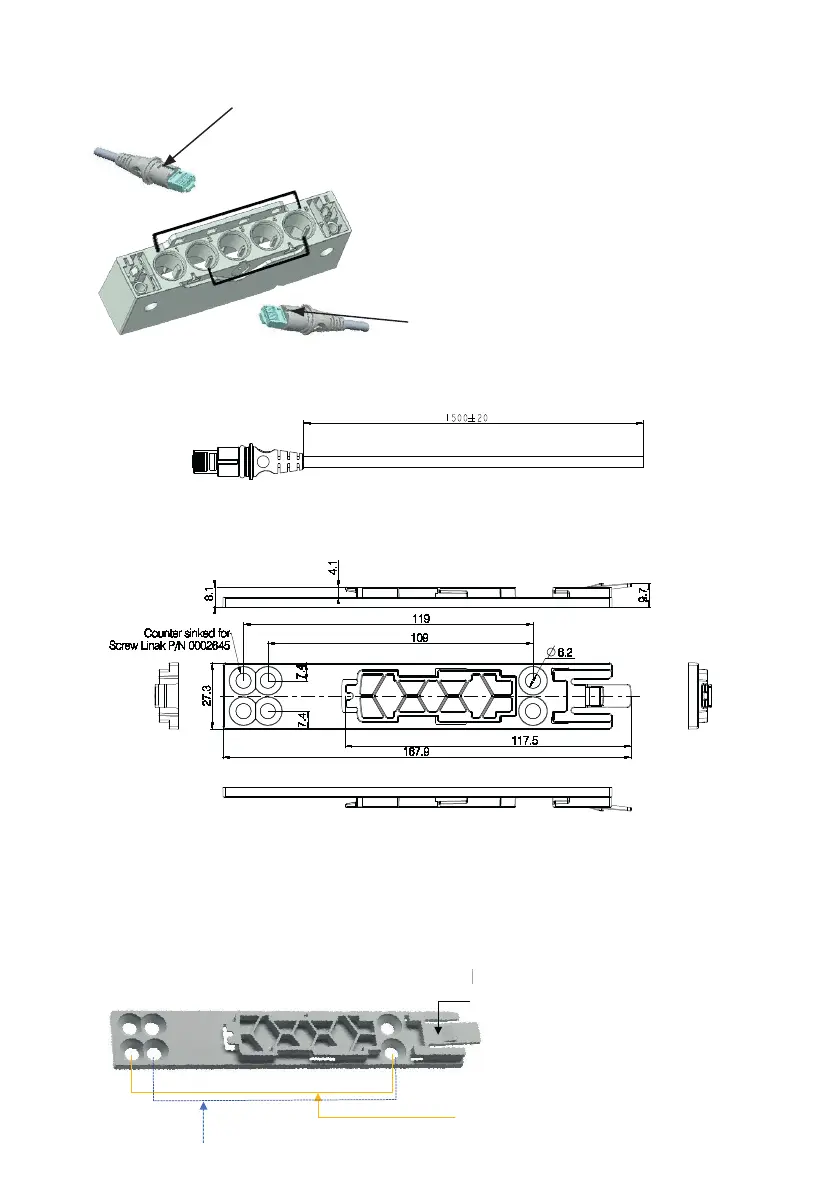

Modular plug cable, narrow/wide alignment grooves:
Modular plug with wide alignment groove.
To be used with LINAK products.
Can be connected to all ports in the MJB5 Plus, both ports with narrow and wide alignment grooves.
Modular plug with narrow alignment groove.
To be used with 3
rd
party products.
Can only be connected to ports in the MJB5 Plus with narrow slit. This is to
prevent 3
rd
party products to interfere with the OpenBus™ connections.
Open-end cable:
0964399: Open end cable for Under Bed Light internal and external and switch input.
Length 1500 mm.
Multi-flexible mounting bracket for MJB5 Plus - article no. 1015W1010-A
Mount the bracket on the side or the back of the MJB5 Plus.
If it is necessary to dismount the MJB5 Plus from the application, we recommend to use the bracket for mounting.
Use special screws type WN1423 K60x16, ordering no. 0002645.
The screws must be mounted with a torque of maximum 1,0 Nm. The screw head will then be flush with the bracket.
Snap function for mounting and release of the bracket from the
control box
Used for fixation of the bracket to MJB5 Plus back
Used for fixation of the bracket to MJB5 Plus side
Drawing no.: 0835012
