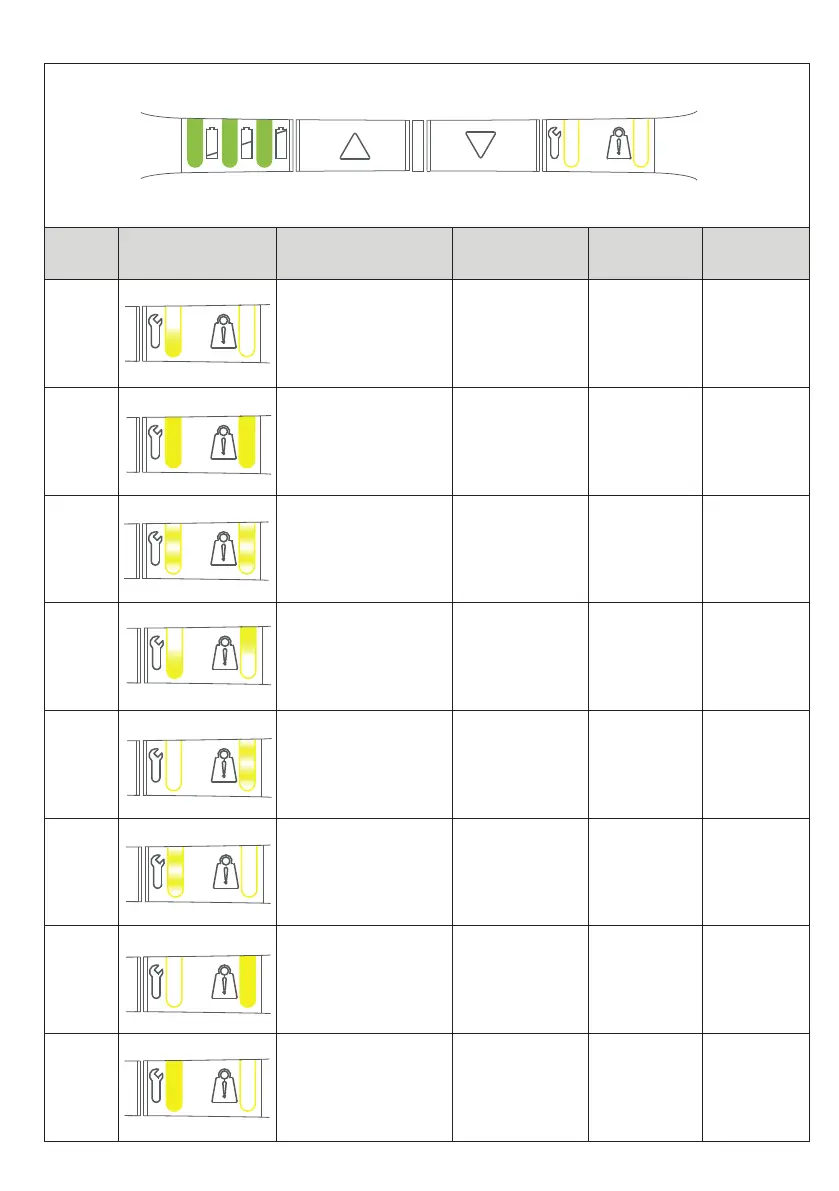

PRIORITY LED 4 + LED 5 LED state (Not listed = off) States in normal use Comments Reset
0
LED 4 flashing according to
BLE pairing state*
Pairing BLE Not ready to drive Wait until ready
1 LED 4+5 constantly on
Emergency stop
activated
Not ready to drive
Reactivate
emergency stop
2
LED 4+5 flashing fast
(synchronous)
FATAL ERROR
Cannot drive, has to
be reset
No movement
possible
Reset fatal error
routine
3
LED 4+5 flashing slowly
(asynchronous toggling)
Not learned/configured
correctly
Not ready to drive
Learn device,
configure correct
4 LED 5 flashing slowly OVERLOAD on CH1
Momentary not
ready to LIFT
Reduce load
5 LED 4 flashing slowly Duty cycle guard
Momentary not
ready to LIFT
Wait until ready
6 LED 5 constantly on
Position not to be
trusted
Drive is possible Drive into EOS
7 LED 4 constantly on Service needed Drive is possible SDT, App, HB.
LED indicators
