Installation
Placing the DPG

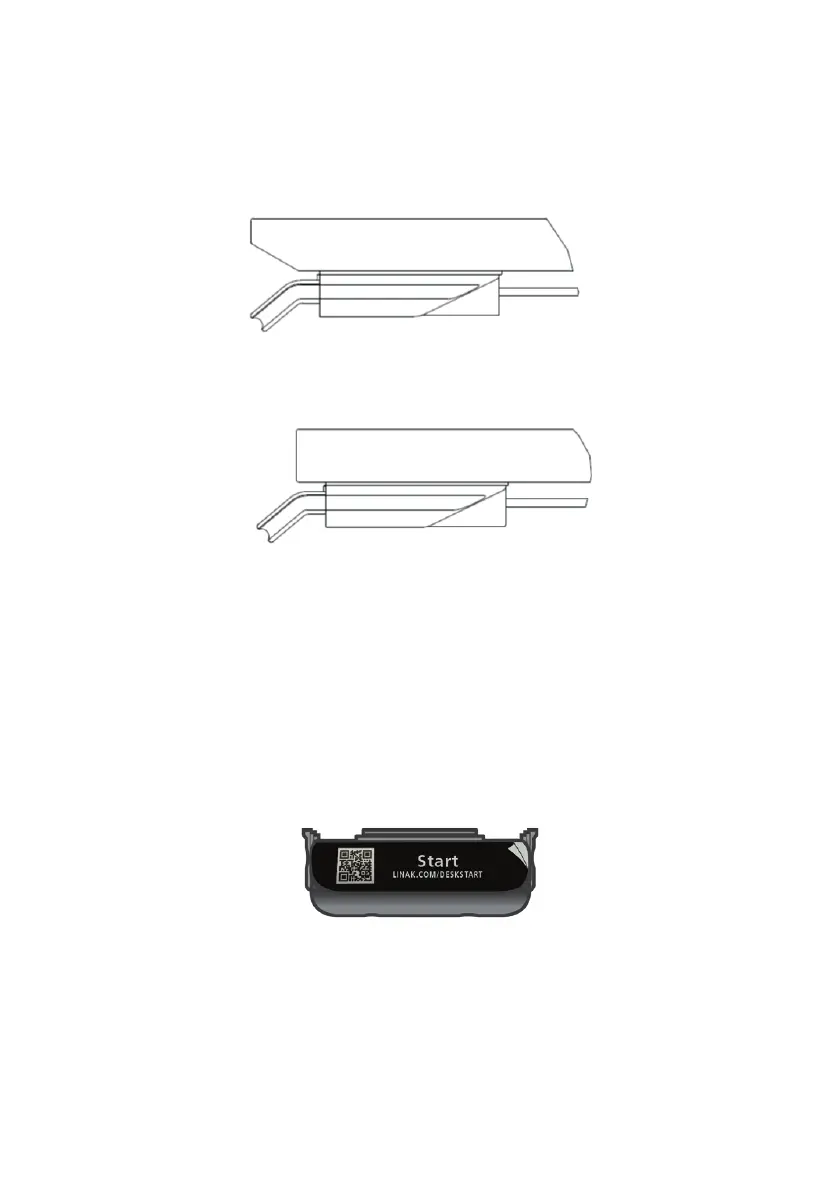

The drawings below are side view examples on how to position the DPG proportionally to the edge of the tabletop.
1. Place DPG so it is easy to operate and LED is in a visible position (DPG1K does not have an LED).
Figure 1: Alignment in proportion to tabletop edge
Front label
The DPG (SW 1.29 and later from factory) is delivered with the removable product label attached to the display.
1. Peel the label off and place it on a visible spot, so the information is easily available.
Figure 2: Removable product label
