Linak DPG1K

Page 17 of 71

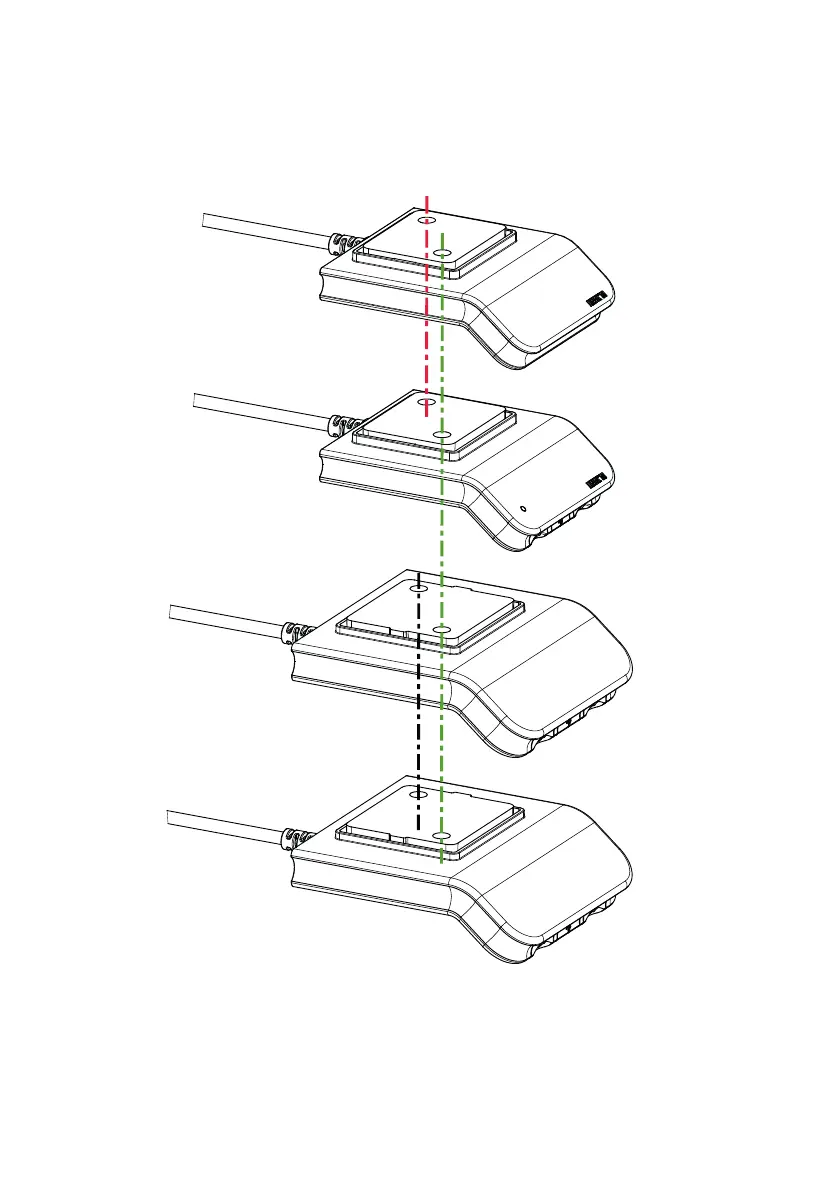

All four DPG variants share the front hole indicated by the green line.
The DPG1K and the DPG1M are the same size and share the hole indicated by the red line.
The DPG1B and the DPG1C are the same size and share the hole indicated by the black line.
Drawing No.: DPG_ASSEMBLY_ALL
DPG1K
DPG1M
DPG1B
DPG1C
Figure 4: Holes shared by the various DPGs
