Owner Manual

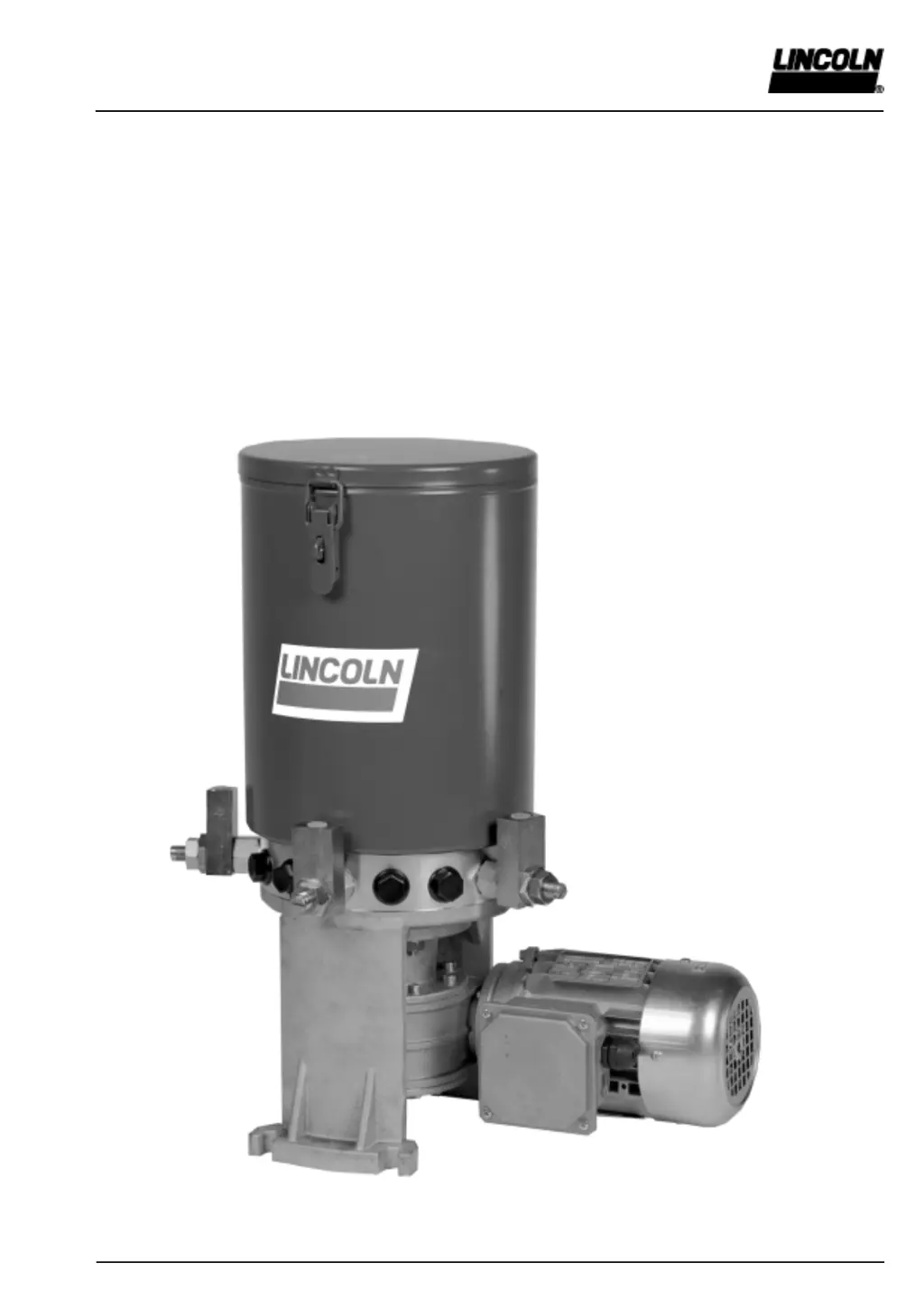

Multiline Pump Model 215
Multiline Pump Model 215

Questions and Answers

  • J
    Jamie HendersonOct 29, 2025
    What to do if my Lincoln 215 Water Pump does not dispense lubricant?
    • J
      Jessica AliOct 29, 2025
      If your Lincoln Water Pump isn't dispensing lubricant, several factors could be at play. First, ensure the reservoir is filled; if empty, replenish it and vent the pump. Be aware that, depending on the ambient temperature or the type of lubricant, the pump elements might need around 10 minutes to become fully operational. Another potential cause is air bubbles in the lubricant. To resolve this, try loosening the screwed outlet fitting on the pump element and letting the pump run until the lubricant flows without air bubbles. Also, the suction borehole of the pump element might be clogged. In this case, disassemble the pump element and check for any foreign particles lodged in the suction borehole, removing them if found. A defective or clogged check valve could also be the culprit, requiri...

Summary

Safety Instructions

Hazard Marking in the Operating Instructions

Explains safety symbols and their meanings for hazard warnings.

Staff Qualification and Training

Emphasizes the need for qualified and trained personnel for operation and maintenance.

Hazards Resulting from Failure to Observe the Safety Instructions

Details potential damage and injury from not following safety warnings.

Safety-Conscious Working

Advises observing safety instructions, national regulations, and shop regulations.

Safety Instructions for the User;Operator

Inadmissible Operating Modes

Specifies operating modes that are not permitted for safety and warranty reasons.

Appropriate Use

Defines the intended purpose and applications of the pump model 215.

Description

Operation

Technical Data

Lists key technical specifications of the pump, such as outlets, pressure, and lubricants.

Adjustment of the pump elements

Details how to adjust the lubricant output of individual pump elements.

Maintenance and Repair

Assembly and Disassembly of Pump Elements

Provides instructions for assembling and disassembling pump elements.

Troubleshooting

Fault: The pump does not dispense the lubricant

Lists common causes and remedies for the pump failing to dispense lubricant.

Fault: Blockage in the progressive system connected downstream of the pump

Addresses blockages in the system downstream of the pump and their resolution.

Component Parts of Pumps Model 215

Data Sheets

Data Sheet for Ultrasonic Sensor

Lincoln 215 Series Specifications

General IconGeneral
Power1.5 hp
Horsepower1.5 hp
Weight45 lbs
TypeCentrifugal
Suction Size2 inches
