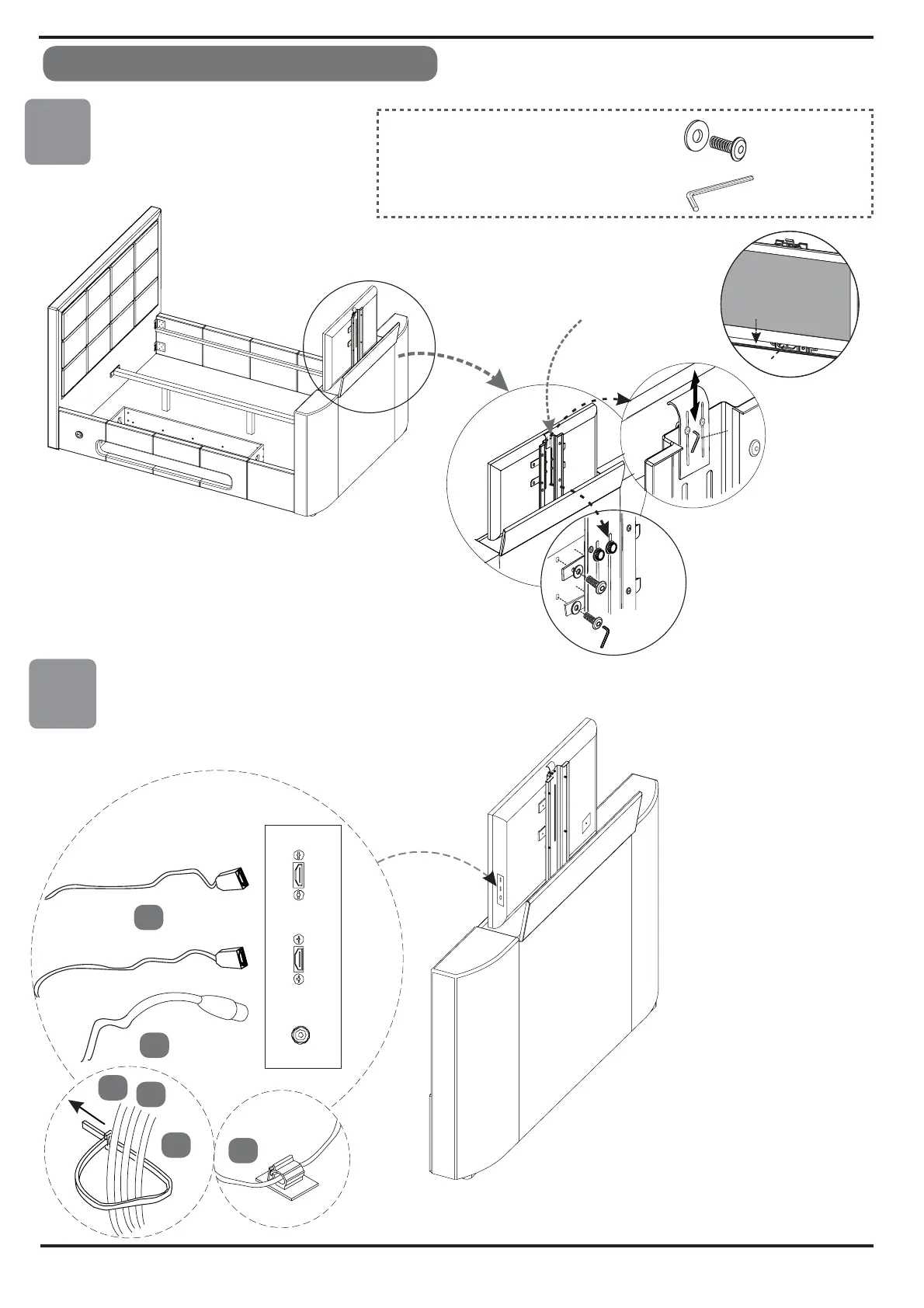

Lincoln DOUBLE - Bed Assembly Stage 6 & 7; TV Mounting Bracket Adjustment; Connecting TV Cables

TV INSTALLATION KIT
BED ASSEMBLY
Stage
6
Page 11 of 13
PlatformPlatform
M
N
TELEVISION INSTALLATION
TV
HDMI 1
HDMI 2
Stage
7
CONNECT CABLES
18
17
Aerial Lead
HDMI Lead
17
18
16
Cable
Tie
19
Cable
Clip
N
x4
Screw-Washer set (M8/M6/M4)
x1
Allen Key (5mm/4mm/3mm)
M
N
This layout depends on the size
of TV that can be fitted and also
where the connections are on the
TV - please follow the suggestions
how to route cables.
TV mounting bracket - Max load is 20 kg.
Dimensions of TVs that can be fitted
to this TV lift:
Width 84 cm
Depth 5.5 cm
Height between 43 & 49.5 cm
Adjust the TV mounting brackets
up or down to suit your TV vesa
mounting holes. Keep bottom of
TV sitting on the platform.
Then adjust the upper bracket
so it sits just above your TV.
=
=
=
