Stage
5
Page 10 of 13
FOOTBOARD
2
2
3
&
4

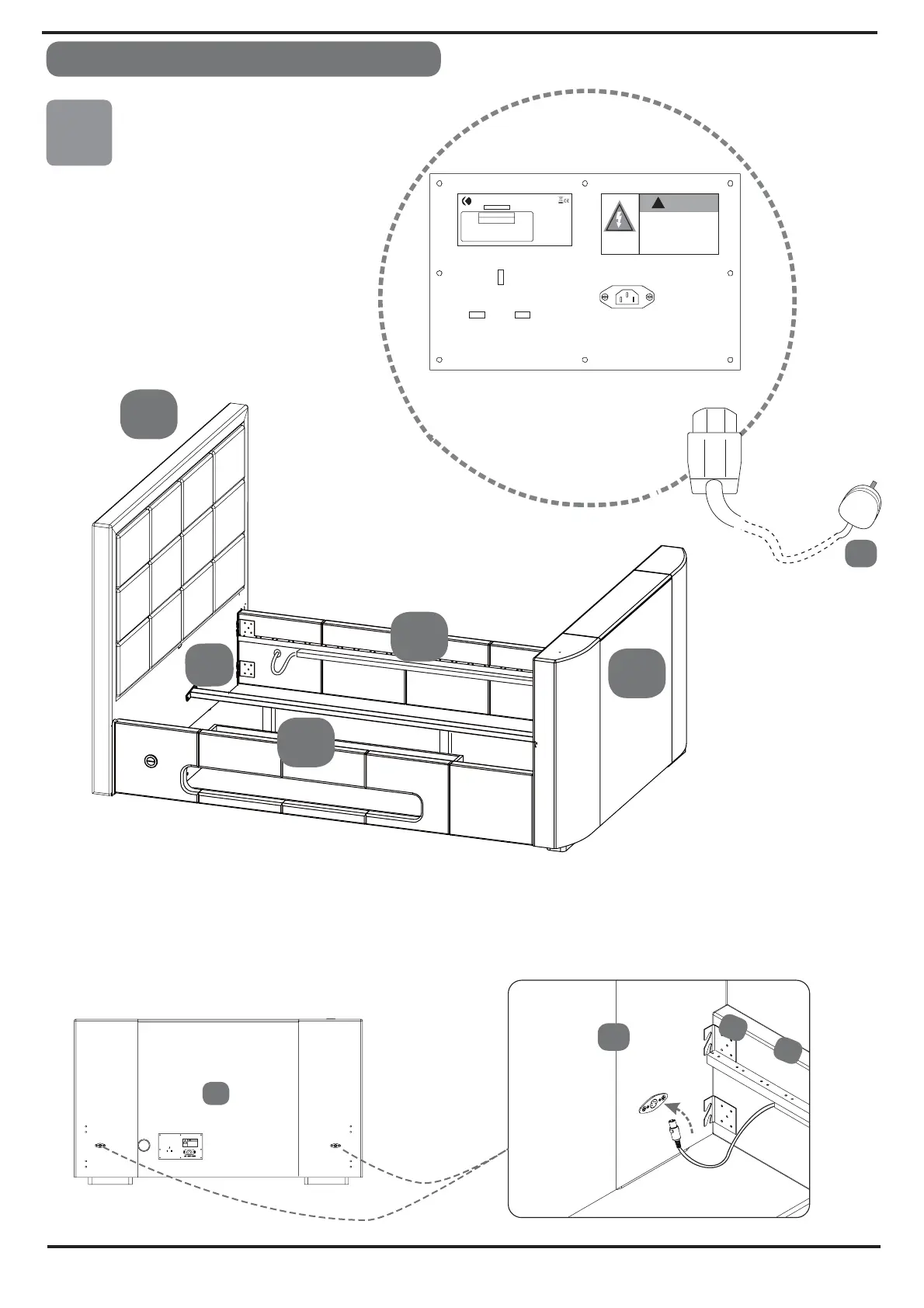

Connect the power cable (12)
into the socket
located at the bottom of the footboard (2)
and then connect to your wall socket.
Note that the plug has an earth blade and the
wall socket must have an earth terminal too.
The plug connection must be easy to reach
if you need to disconnect the power.
On each side panel of the bed is a switch to
operate the TV Lift.
The switches are connected to the TV Lift by
a DIN plug on each side of the footboard - make
sure you plug them in properly - align the arrows
on the labels and push right in.
Switch DIN plug
Power Lead
AC 220V ~ 240V
!
WARNING
HAZARDOUS VOLTAGE
Contact mav cause
electric shock or burn.
This unit is to be ser
trained personnel only.
viced by
!
WARNING
HAZARDOUS VOLTAGE
Contactmav cause
electricshockor burn.
Thisunit is tobe ser
trainedpersonnelonly.
vied by
12
T
MODEL: LINCOLN
POWER SUPPLY: AC 220-240V~50Hz
POWER CONSUMPTION:
S/N:
20140322
TV : MAX 56W
TV LEFT : 50W
Radio: 15W
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK)
NO-USER SERVICEABLE PARTS INSIDE REFER
SERVICING TO QUALFIED SERVICE PERSONNEL
MADE IN CHINA
POWER OUT
TO TV ONLY
POWER IN FROM
AN EARTHED WALL
SOCKET
4
2
3
10
1
BED ASSEMBLY
To Next Page
