Lincoln DOUBLE - Bed Assembly Stage 1; Footboard and Side Panel Attachment; Centre Support Bar Installation

Bed Assembly
Stage
1
Stage
1
Page 6 of 13
A
x20
B
x16
C
x24

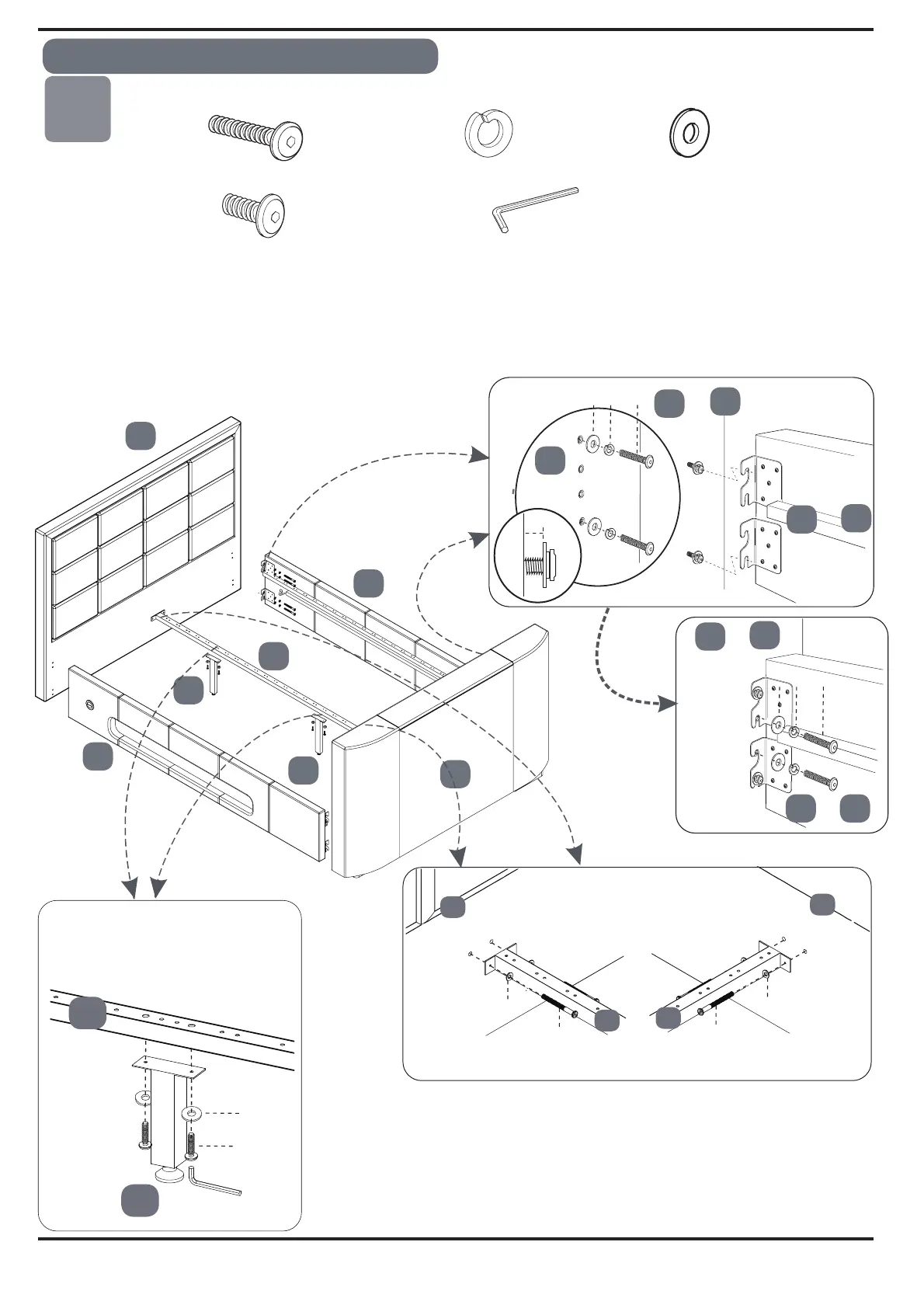

Fit the bolts (A), spring washers (B) , and flat washers (C) to the holes in the footboard (2) as shown.
Note: Do not fully locate the bolts, but leave 10mm protruding.
Fit the side panels (3 & 4) to the footboard locating the brackets behind the flat washers.
Fit the bolts (A), spring washers (B) , and flat washers (C) through the brackets in the central set of holes.
Once all four corners are located, make sure the bed is square.
.
A
B
C
3
&
4
1
&
2
A
B
C
10mm
2
3
&
4
&
1
2
1
2
3
4
11
11
10
H
x4
11
10
E
C
Footboard
2
10
A
C
1
10
A
C
Headboard
Fix support legs to centre support bar (10), using the bolts (H)
and washer (C) ; fully tighten using Allen Key .
Push bolts (A) and flat washer (C),
fixing centre support bar to
vely
as shown - screw in the x4 bolts.
When all bolts are screwed in place, tighten them 100%.
Carefully adjust the feet (11) so support bar is supported evenly.
The holes for slats must point upwards
E
x1
headboard & footboard respecti
(E)
11
H
