FlowMaster™ Rotary Driven Electric Pump
Maintenance and Repair
Form 402753

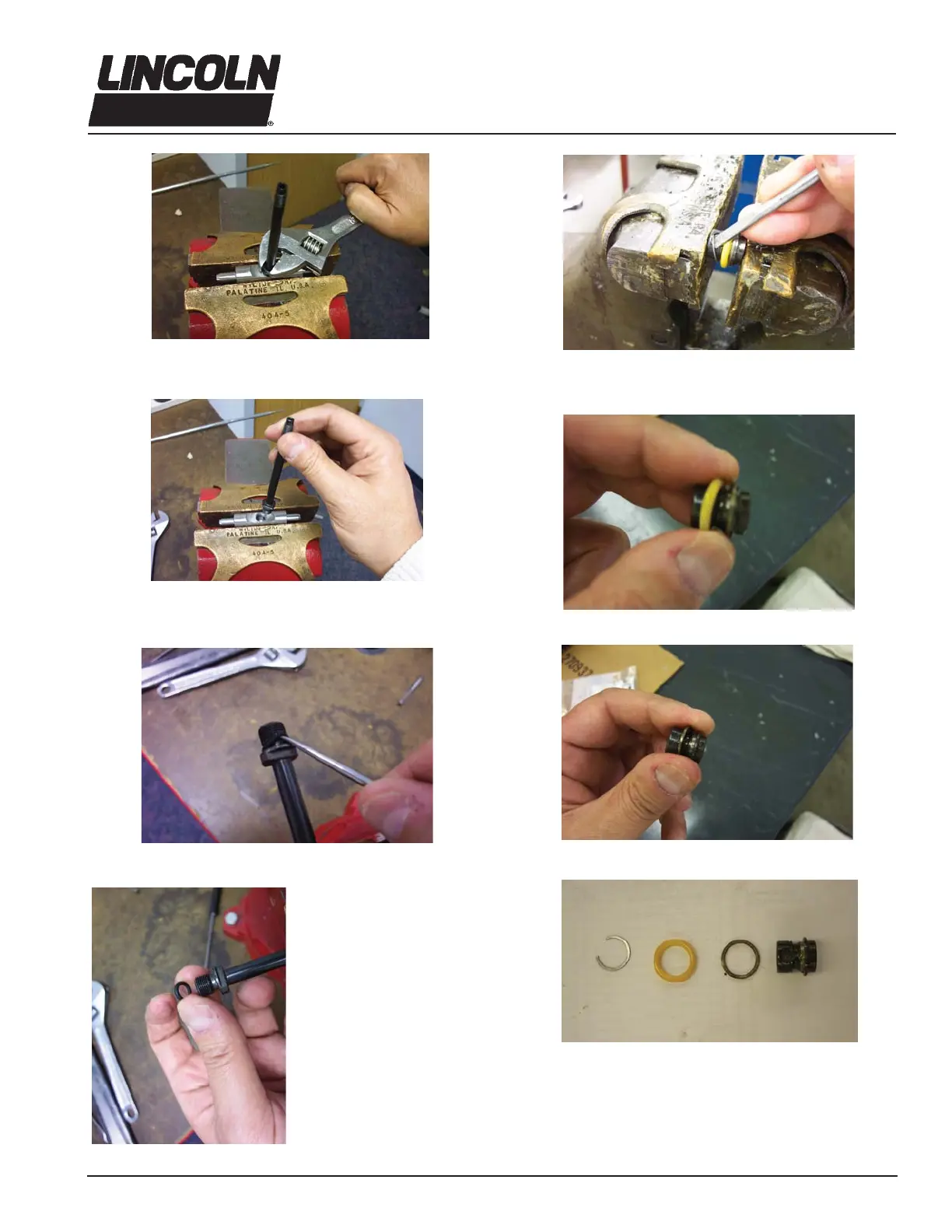

46. Loosen plunger tube (Item 10) from outlet pin (Item 8). (re-
assembly torque: 100-110 in.-lbs. (11.3 - 12.4 Nm).)
47. Remove plunger tube (Item 10). (Ressembly recommenda-
tions; replace o-ring (item 9). use Loctite 242 or equivalent on
plunger tube threads.)
48. Remove O-ring (Item 9).
49. View of O-ring (Item 9)
removed.
50. Remove C-clip (Item 10d).
51. Remove O-ring (Item 10c).
52. Remove backup washer (Item 10b).
53. View of upper bushing and seals (Items 10-10d).
