Page Number - 19
FlowMaster™ Rotary Driven Electric Pump
Maintenance and Repair
Form 402753

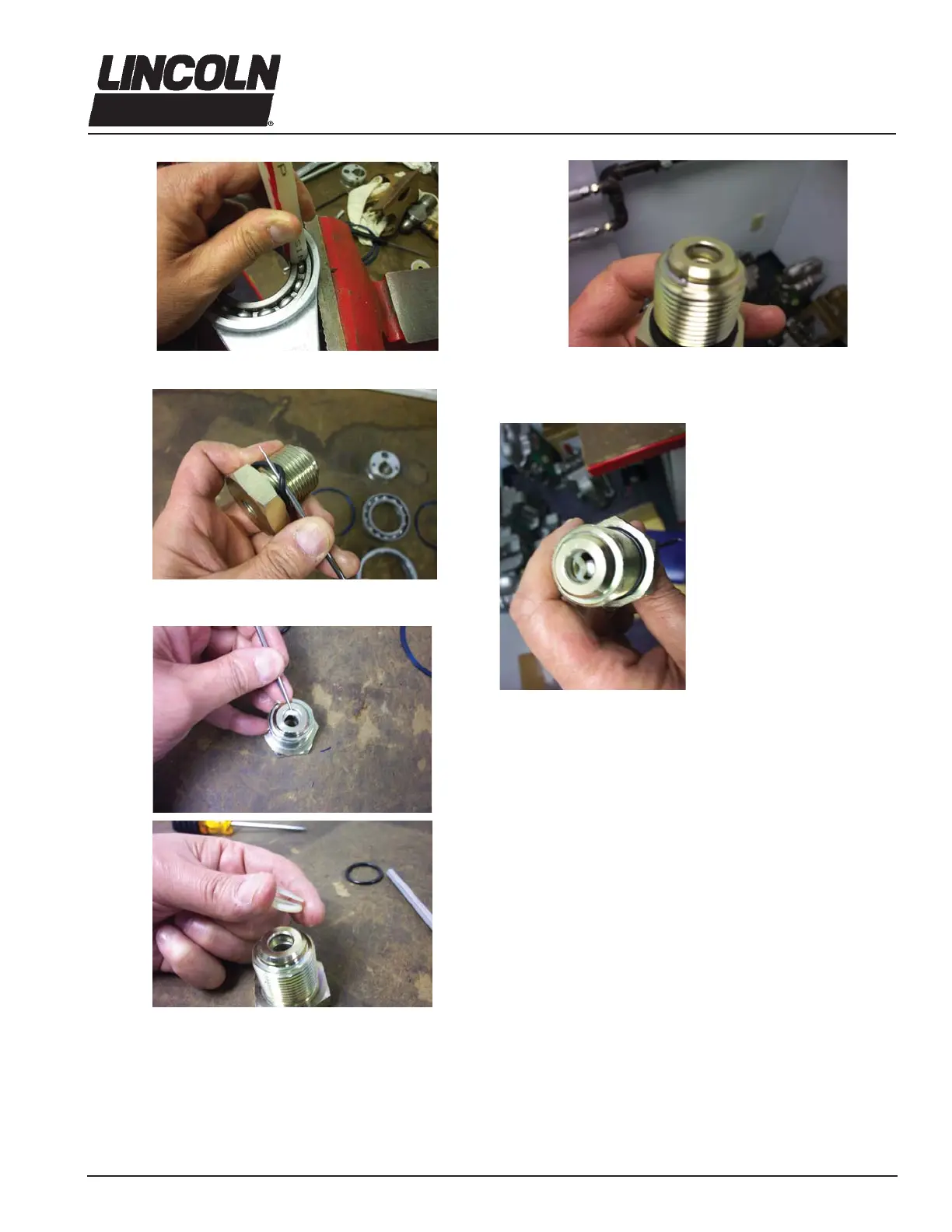

69. Drive ball bearing (Item 7) out of crank rod (Item 4).
70. Remove O-Ring seal (Item 33) from outlet nut (Item 32).
71. Remove O-ring seal (Item 34) and backup washer (Item
35) from outlet nut (Item 32). Note the position of the backup-
washer in photo.
72. Reassembly recommendations: To install the O-ring (Item
34) and backupwasher (Item35) most easily, install the backup
ZDVKHU¿UVW
73. And then feed the O-ring
(Item 34) under the backup
ZDVKHUSXVKLQJXSWKH¿QDO
bulge of the O-ring with a blunt
rod.
