FlowMaster™ Rotary Driven Electric Pump
Maintenance and Repair
Form 402753

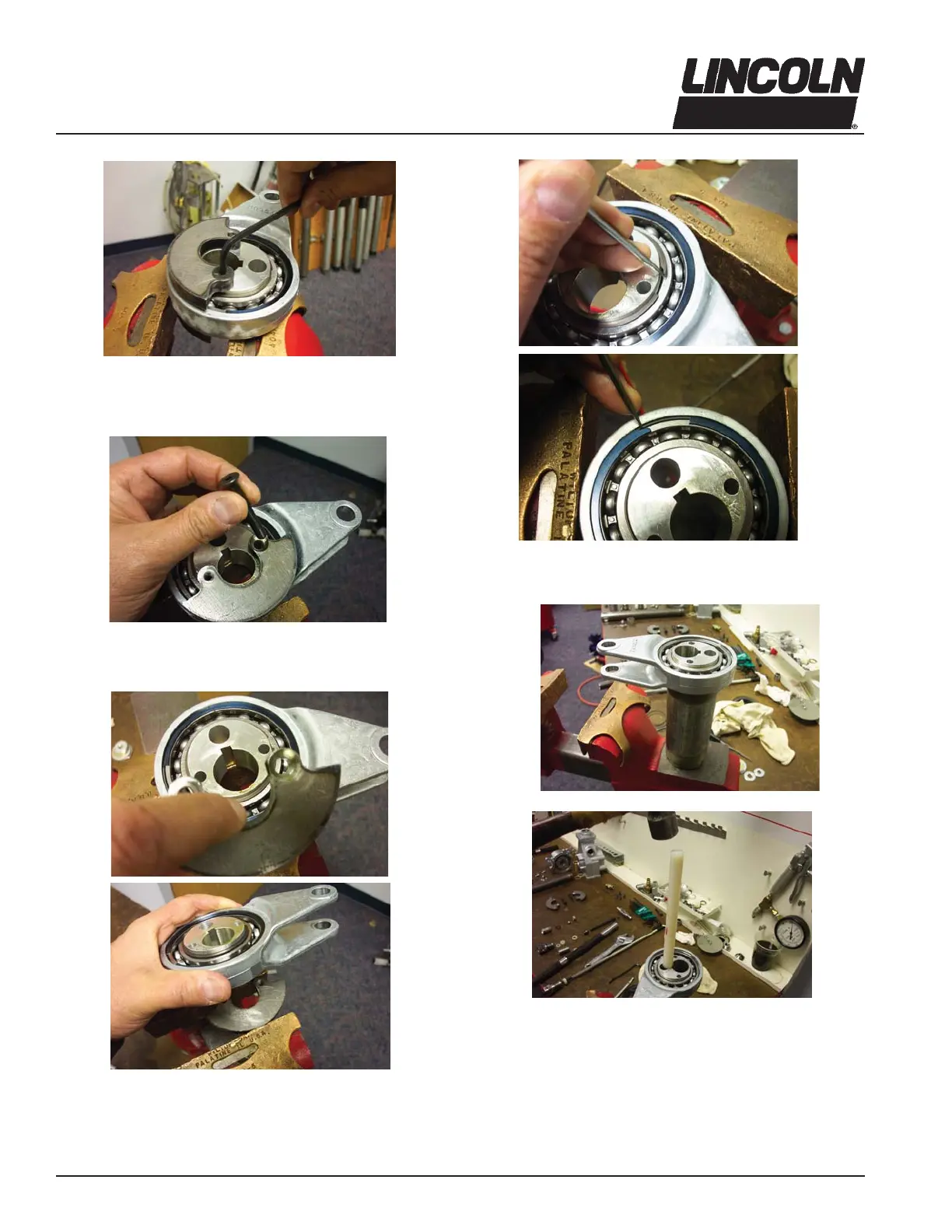

:LWKERWKÀDWKHDGVFUHZVUHPRYHGUHPRYHFRXQWHUEDO-
ance weights (Item 2).
66. Remove inner and outer retaining ring (Item 5 and Item 3)
from both sides.
67. Place assembly on 2” schedule 40 pipe.
68. Drive crank eccentric (Item 6) out of ball bearing (Item 7).
5HPRYHÀDWKHDGVFUHZV,WHPV5HDVVHPEO\UHFRP-
mendation: use loctite 242 on screw threads).
/RRVHQÀDWKHDGVFUHZ,WHP5HDVVHPEO\WRUTXH
100-110 in. lbs.)
