SCISSOR VEHICLE LIFT STD-5335A
For the connection of the pneumatic lines proceed as follow:
• Connect the pneumatic lines pre-assembled on the lift to the solenoid air valve in the control unit
according to the pneumatic diagram;
• Connect the pneumatic system of the lift to the pneumatic supply at site;
• Check the pneumatic control operations for proper performance.
• Fix the limit switch onto the base platform.
• Raise the lift at a height of 2050 mm to check for the proper function.

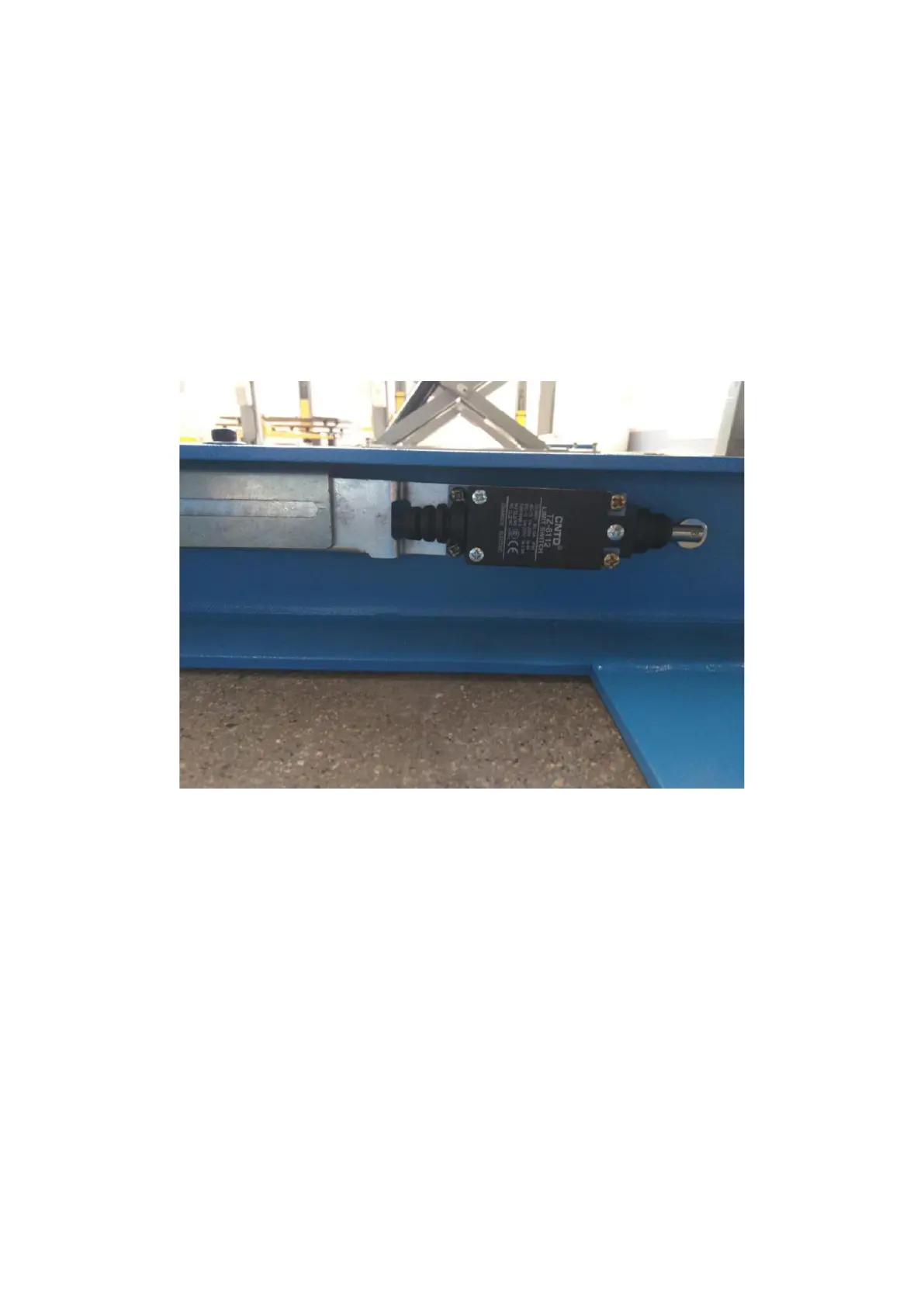

4.8. INSTALLATION OF LIMIT SWITCH
