ELECTRICAL CONNECTIONS
WH25
LINDAB SAFE
36/50
 Motorized version
Belimo servomotor:
BFL24T, BFN24T, BF24T, BFL230T, BFN230T, BF230T.
Siemens servomotor:
GRA126, GNA126, GGA126.
Siemens servomotor:
GRA326, GNA326, GGA326.

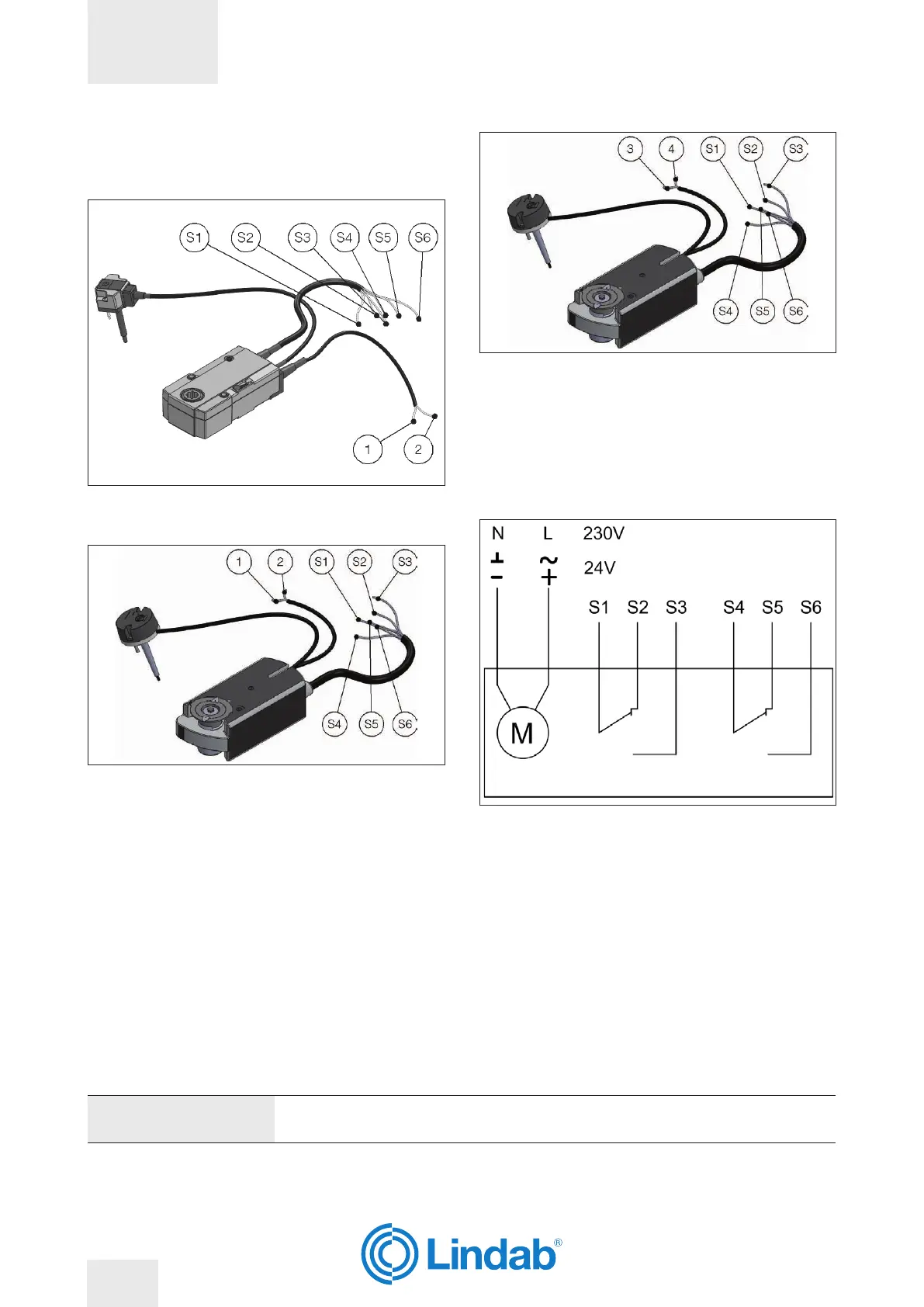

Motorized re dampers electical wiring
To connect the dampers to the power supply, proceed as
follows:
• Check that the voltage and electrical frequency are
equivalent to those of the motor of the servomotor
(check the motor's information label);
• Make the connections as shown in the below diagram.
Microswitches position for motorized version
24V AC/DC power supply
/- Negative (DC) or neutral (AC) black wire
~/+ Positive (DC) or phase (AC) red wire
230V AC power supply
N Neutral blue wire
L Phase brown wire
Microswitches position contacts
S1 Common closed damper microswitch
S2 Normally closed, closed damper microswitch
S3 Normally opened, closed damper microswitch
S4 Common open damper microswitch
S5 Normally closed, open damper microswitch
S6 Normally opened, open damper microswitch
 Electrical specications
Manual and compact manual
Manual with magnet
Belimo motorized version
Siemens motorized version
