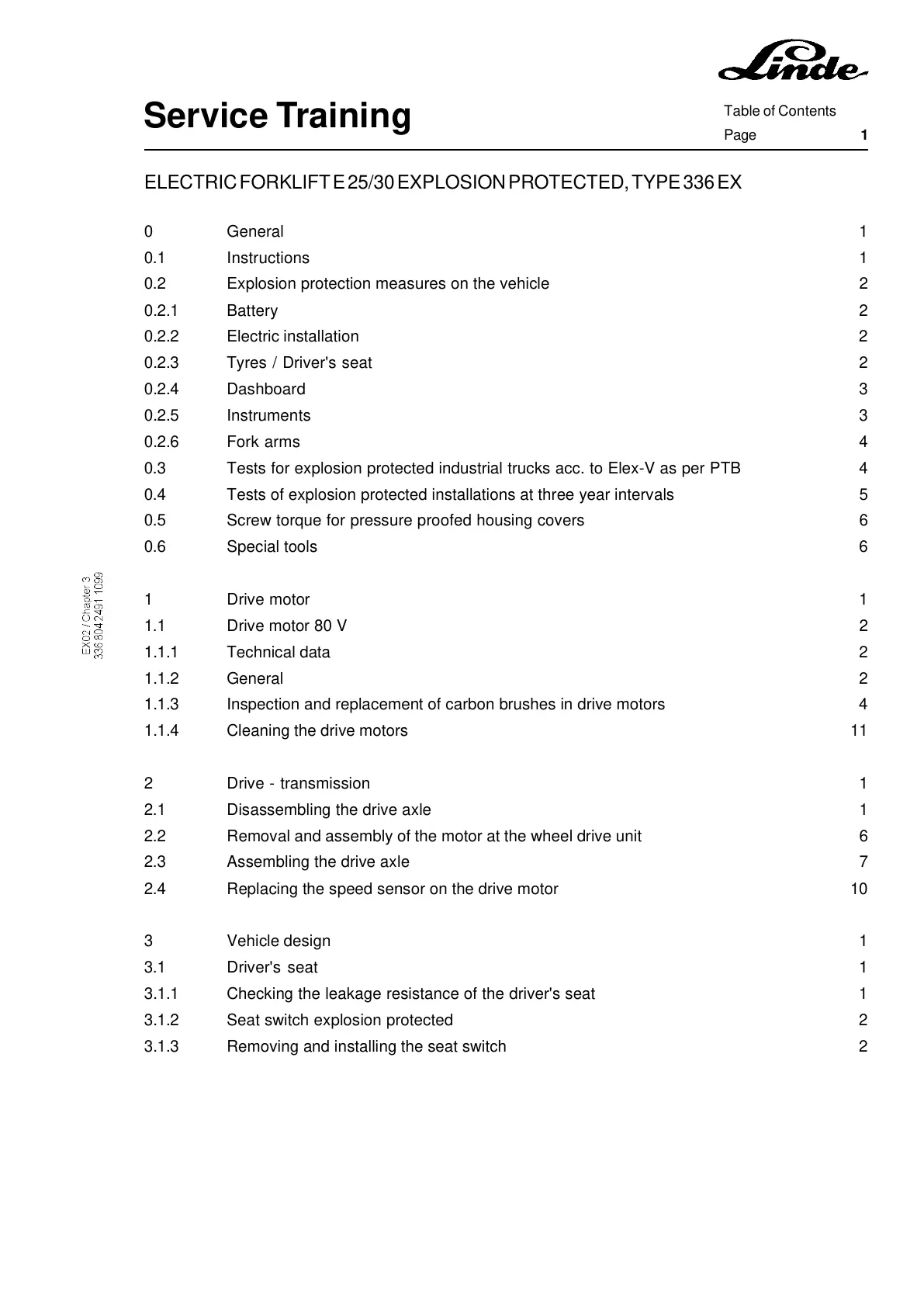

Service Training
Table of Contents
Page 1
ELECTRIC FORKLIFT E 25/30 EXPLOSION PROTECTED, TYPE 336 EX
0 General 1
0.1 Instructions 1
0.2 Explosion protection measures on the vehicle 2
0.2.1 Battery 2
0.2.2 Electric installation 2
0.2.3 Tyres / Driver's seat 2
0.2.4 Dashboard 3
0.2.5 Instruments 3
0.2.6 Fork arms 4
0.3 Tests for explosion protected industrial trucks acc. to Elex-V as per PTB 4
0.4 Tests of explosion protected installations at three year intervals 5
0.5 Screw torque for pressure proofed housing covers 6
0.6 Special tools 6
1 Drive motor 1
1.1 Drive motor 80 V 2
1.1.1 Technical data 2
1.1.2 General 2
1.1.3 Inspection and replacement of carbon brushes in drive motors 4
1.1.4 Cleaning the drive motors 11
2 Drive - transmission 1
2.1 Disassembling the drive axle 1
2.2 Removal and assembly of the motor at the wheel drive unit 6
2.3 Assembling the drive axle 7
2.4 Replacing the speed sensor on the drive motor 10
3 Vehicle design 1
3.1 Driver's seat 1
3.1.1 Checking the leakage resistance of the driver's seat 1
3.1.2 Seat switch explosion protected 2
3.1.3 Removing and installing the seat switch 2
