Linde H 50 D - Work on the Overhead Guard

Service Training
Section 4.3
Page 3
1 Overhead guard pivot articulation on the mast
2 Front mounting of tilt cylinders
3 Overhead guard
4 Rear mounting of tilt cylinders
5 Roller mount
6 Overhead guard guide roller
4.3.1.1 WORK ON THE OVERHEAD GUARD
DISASSEMBLY
- Slacken the fastening screws on the left and right roller mounts (5) and slide the mount outward in the
area of the bearing holes.

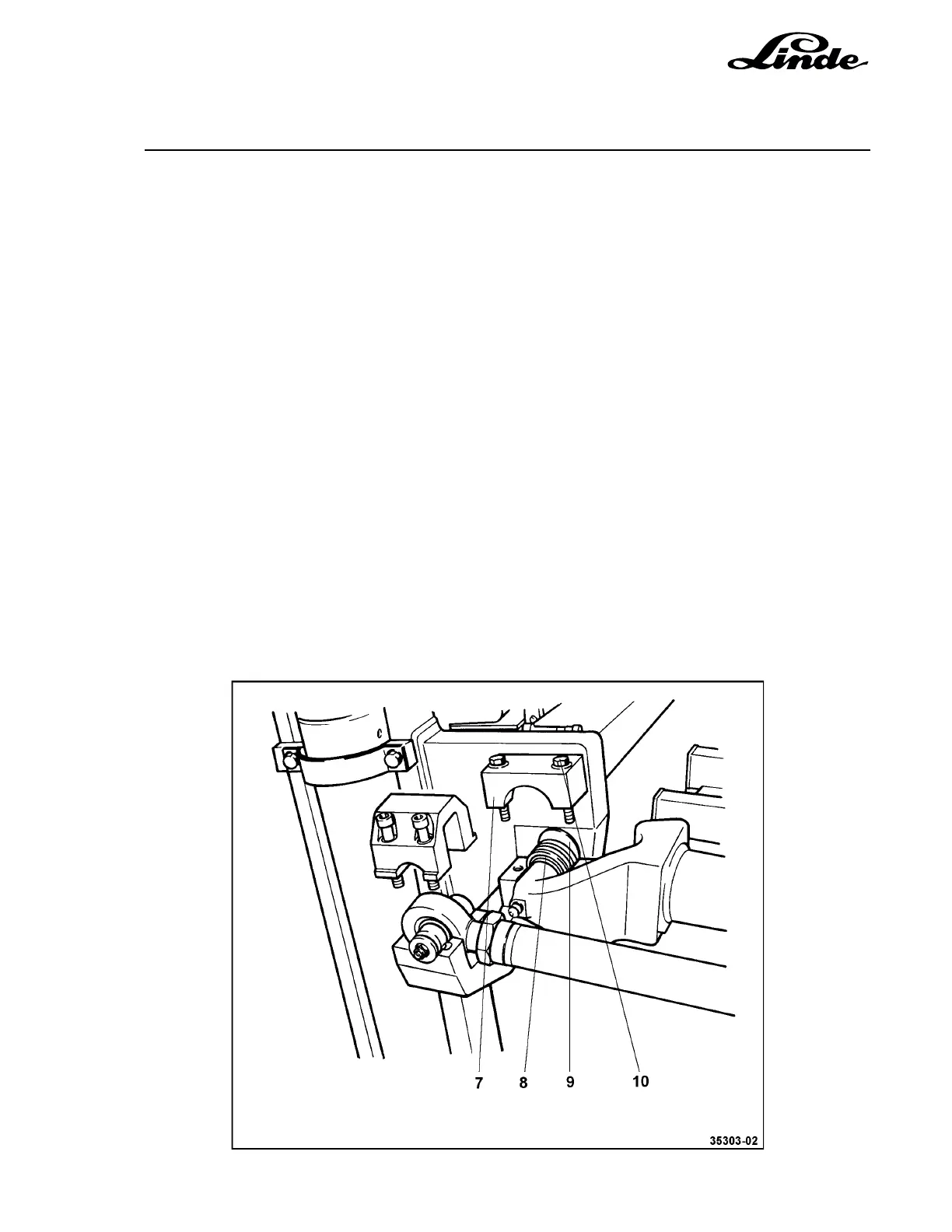

- Dismantle the left and right bearing bracket (7).
- Take off the overhead guard by lifting it up.
ASSEMBLY
- Place the overhead guard along with the mounted bearings (8) into the outer mast mounting.
