Service Training
Page 37
Section 4.6
09.04

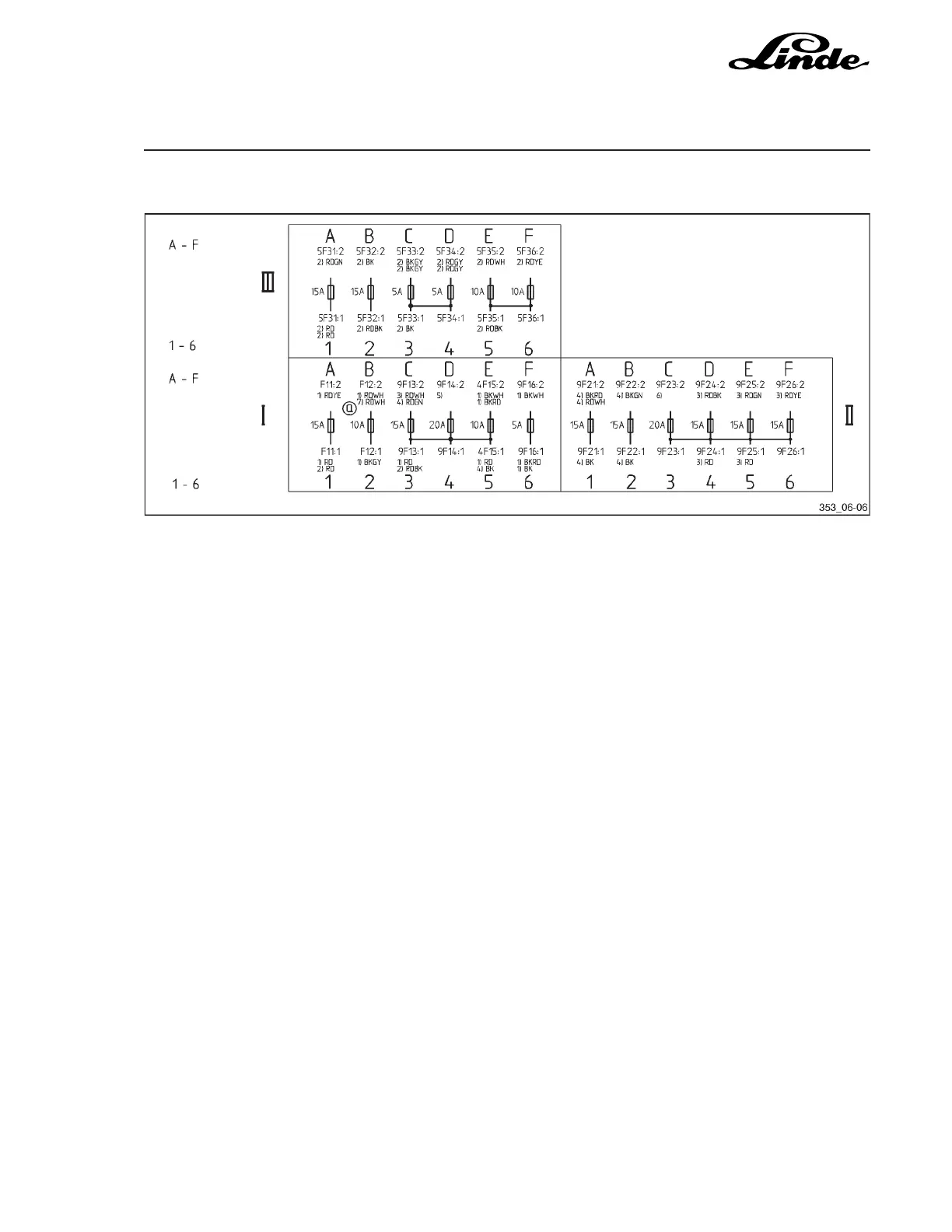

TOP VIEW OF FUSE BOXES I - III
Fuse output
Fuse input
Fuse output
Fuse input
Fuse box I
1 Ignition starter, display (F11) 15 A
2 Supply of glow time control device (F12) 10 A
3 Switch illumination, heating* (9F13) 15 A
4 Seat heating* (9F14) 20 A
5 Horn (4F15) 10 A
6 Single-pedal model* (9F16 5 A
Fuse box II
1 Front wiper*,
Interior lights (9F21) 15 A
2 Windscreen wiper*, rear, roof (9F22) 15 A
3 Spare fuse* (9F23) 20 A
4 Working light* (9F24) 15 A
5 Working light* (9F25) 15 A
6 Working light* (9F26) 15 A
Fuse box III
1 Turn-signal system* (5F31) 15 A
2 Turn-signal system* (5F32) 15 A
3 Side marker* left side(5F33) 5 A
4 Side marker* right side (5F34) 5 A
5 Dip beam* left (5F35) 10 A
6 Dip beam* right (5F36) 10 A
* Optional equipment
