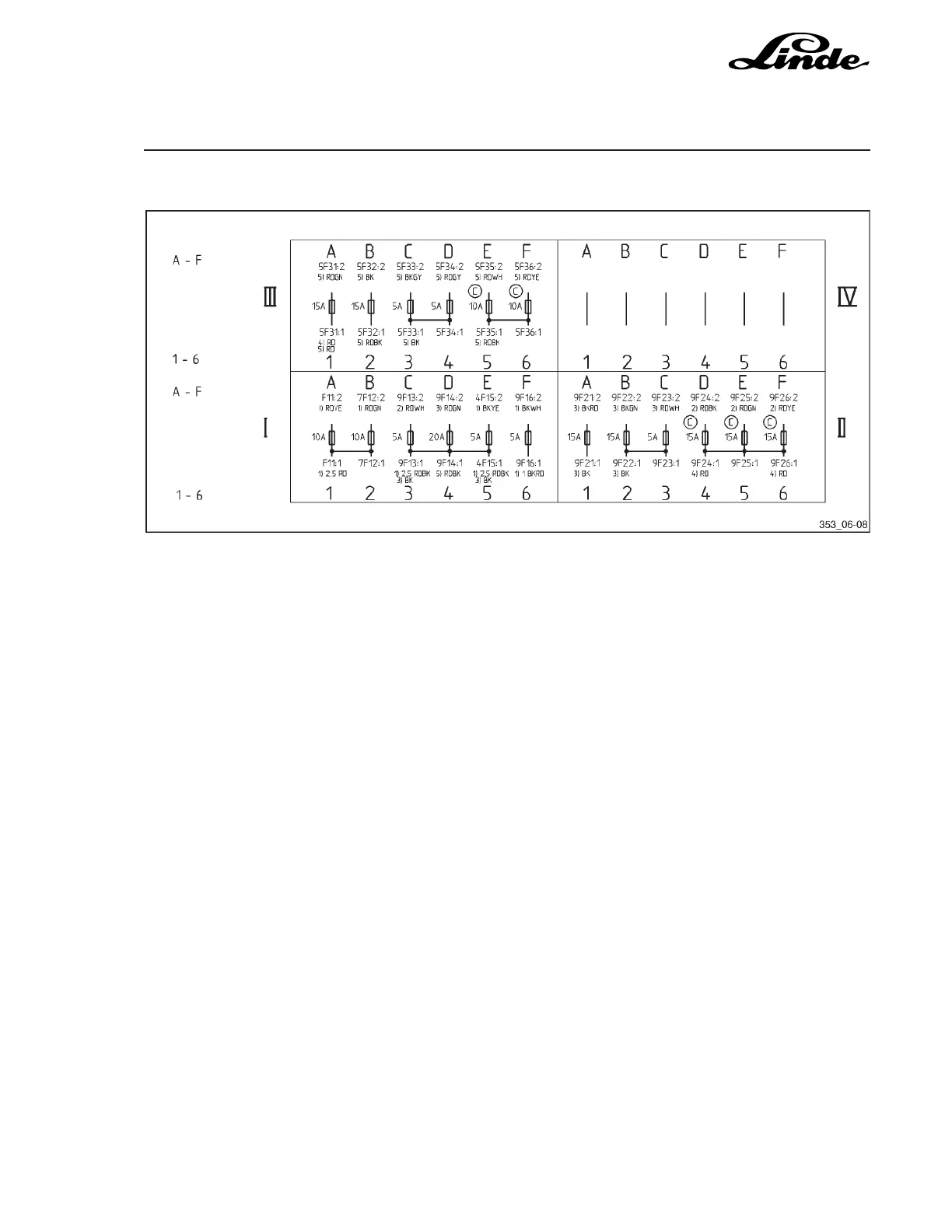

TOP VIEW OF FUSE BOXES I - IV
Fuse output
Fuse input
Fuse box I
1 Indicating device, ignition starter switch (F11) 10 A
2 Catalyst* (7F12) 10 A
3 Switch illumination for working lights* (9F13) 5 A
4 Heating*, revolving light* (9F14) 20 A
5 Horn (4F15) 5 A
6 Single pedal model* (9F16) 5 A
Fuse box II
1 Windscreen wiper* front 9F21) 15 A
2 Windscreen wiper* rear, roof (9F22) 15 A
3 Interior light* (9F23) 5 A
4 Working light* (9F24) 15 A
5 Working light* (9F25) 15 A
6 Working light* (9F26) 15 A
Fuse box III
1 Turn-signal system* (5F31) 15 A
2 Turn-signal system* (5F32) 15 A
3 Side marker* left side (5F33) 5 A
4 Side marker* right side (5F34) 5 A
5 Dip beam* left side (5F35) 10 A
6 Dip beam* right side(5F36) 10 A
* Optional equipment
Fuse output
Fuse input
