Section 6
Page 5
Service Training
No. Description
1. Line contactor LES - 3K1
2. Line contactor LAC 1K2
3. Hour meter indicator - 6P1
4. Inclinometer - 1A8
5. Steering controller LES 3A1
6. Inclinometer support
7. Horn - 4H1
8. 29-track connector for LES -3X1
9. Connector support
10. LAC fans - 9M1 9M2
11. Power cables for traction motor and pump motor
12. Traction and hydraulic controller LAC - 1A1
13. Key switch - S1
14. Emergency stop button -7S1 / 7S5
15. Power fuse LES - 3F1
16. Power fuse LAC - 1F1
17. Control fuse - 1F3

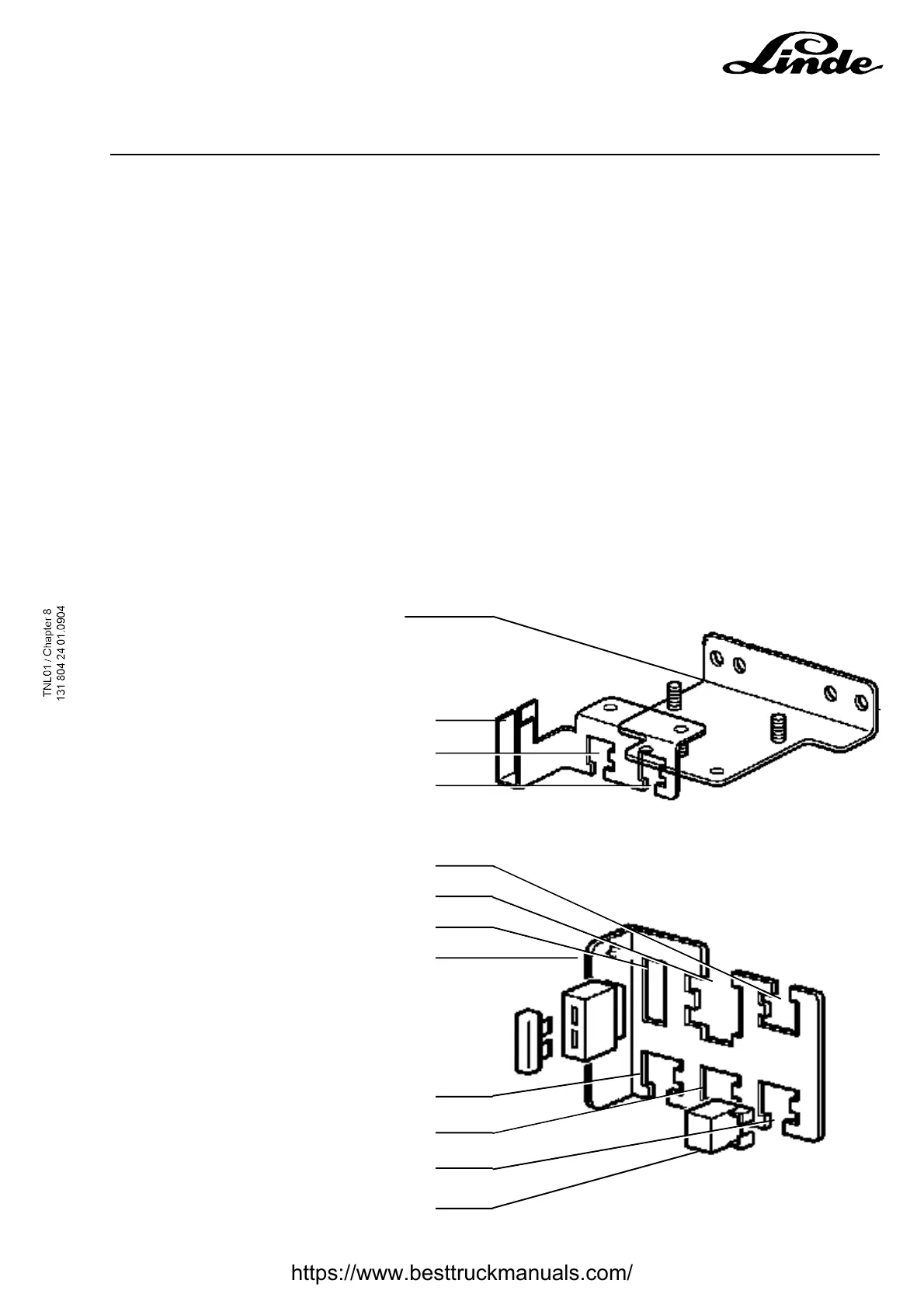

Inclinometer support
A1 connector 1X3 (tiller panel card)
1A8 connector 1X26 (inclinometer)
1B6 connector 1X25 (T° motor 1M1)
Y1 connector 7X5 (electrobrake)
Connector support LAC side
Connector 9X1 for 9M1/9M2 (fans)
Fuse support 1F3
1S9 connector 1X9 (operator presence)
1S15 connector 1X20 (platform)
7A5 connector X13 (wheel brake)
Stopper for 1S15 on 131 SP
