Section 6
Page 9
Service Training

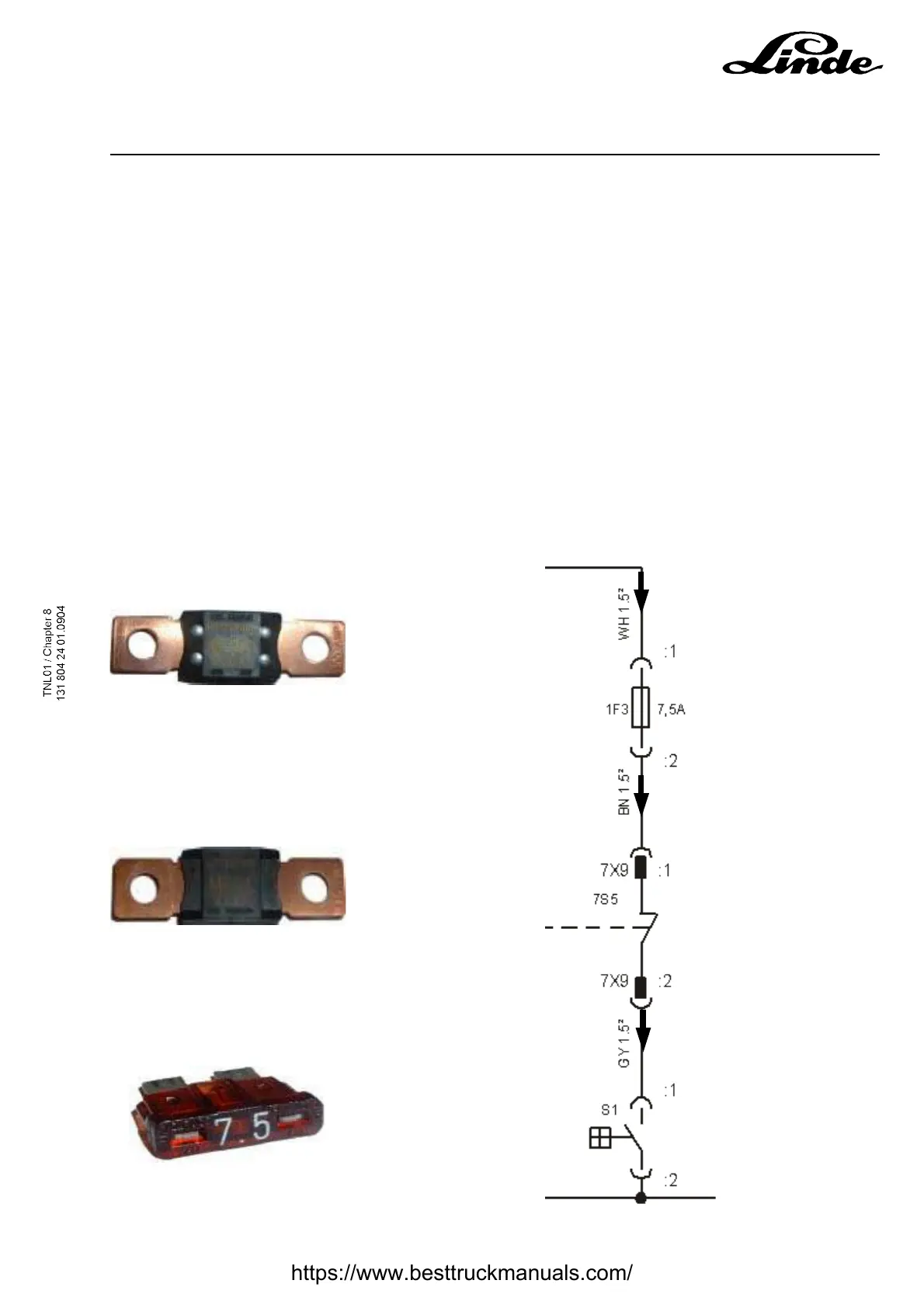

6.1.4 Fuses - 1F1 - 1F3 - 3F1
The power circuit fuses are located on the LAC plate under the emergency stop.
The small control fuse is located on a bracket below the controller of the LES, it protects the entire control harness (LAC
and LES).
1. The nominal power of the fuse 3F1 (steering) is 100 A
2. The nominal power of the battery main fuse 1F1 is 225 A
3. 1F3 7.5A Key switch, traction/hydraulic and steering control circuits
NOTE: Although this control fuse might be interchangeable with the fuses with automobile type plate,
the USE OF AUTOMOBILE FUSES IS FORBIDDEN. Only original Linde fuses have the adequate capacity to
enable proper functioning with the voltages present in the truck.
POWER FUSE LES 3F1
CONTROL FUSE 1F3
POWER FUSE LAC 1F1
B
