6.1.11.3 Inclinometer - 1A8
The inclinometer is a bubble level that transmits the inclination degree of the truck to the LAC.
The values displayed in % are ratios of the supply voltage. The inclinometer must be calibrated if it is
changed or if the LAC is changed. No mechanical regulation is possible.
A 50% value corresponds to a horizontal truck. The stabiliser blocking and unblocking thresholds can be
controlled with the PathFinder software.
0°
-10°
50%
0%
Blocked right stabiliser
0°
10°
50%
100%
Blocked left stabiliser
Turn left
Turn right

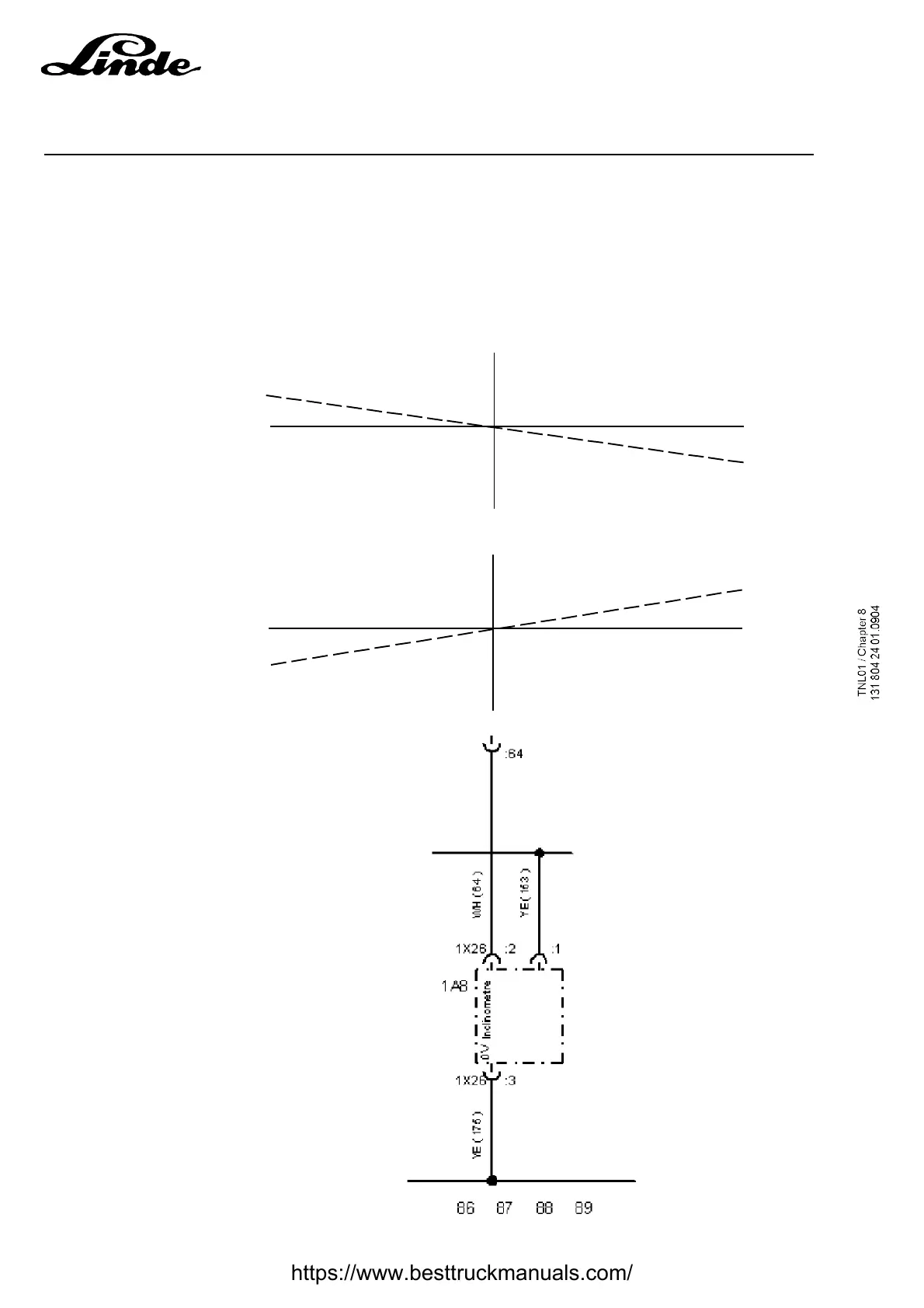

Connector 1X26
Terminal
Colour Function
1 YE(153) Positive supply
2 WH(64) Signal
3 YE(175) Negative supply
