Linde T20 SP - Page 89

Section 6
Page 35
Service Training

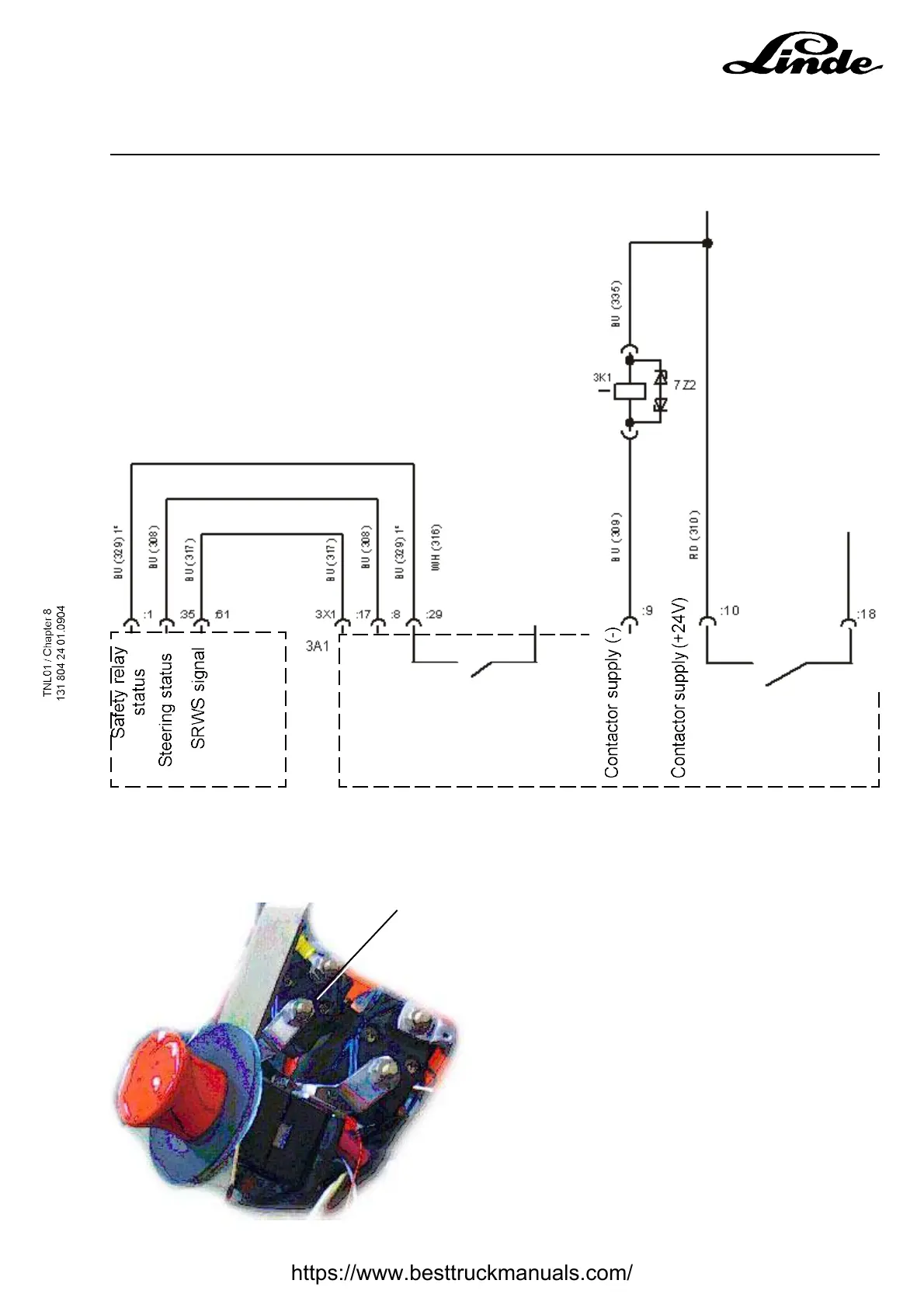

STEERING LINE CONTACTOR 3K1 AND TRACTION AUTHORISATION
3K1
Characteristics of the line contactor coil:
Resistance (20° C) 44 Ohms
Coil interference Diode
No series resistance.
LES
LAC
Safety relay B
+24V
0V
Safety relay A
+24V
