Guide to the Television

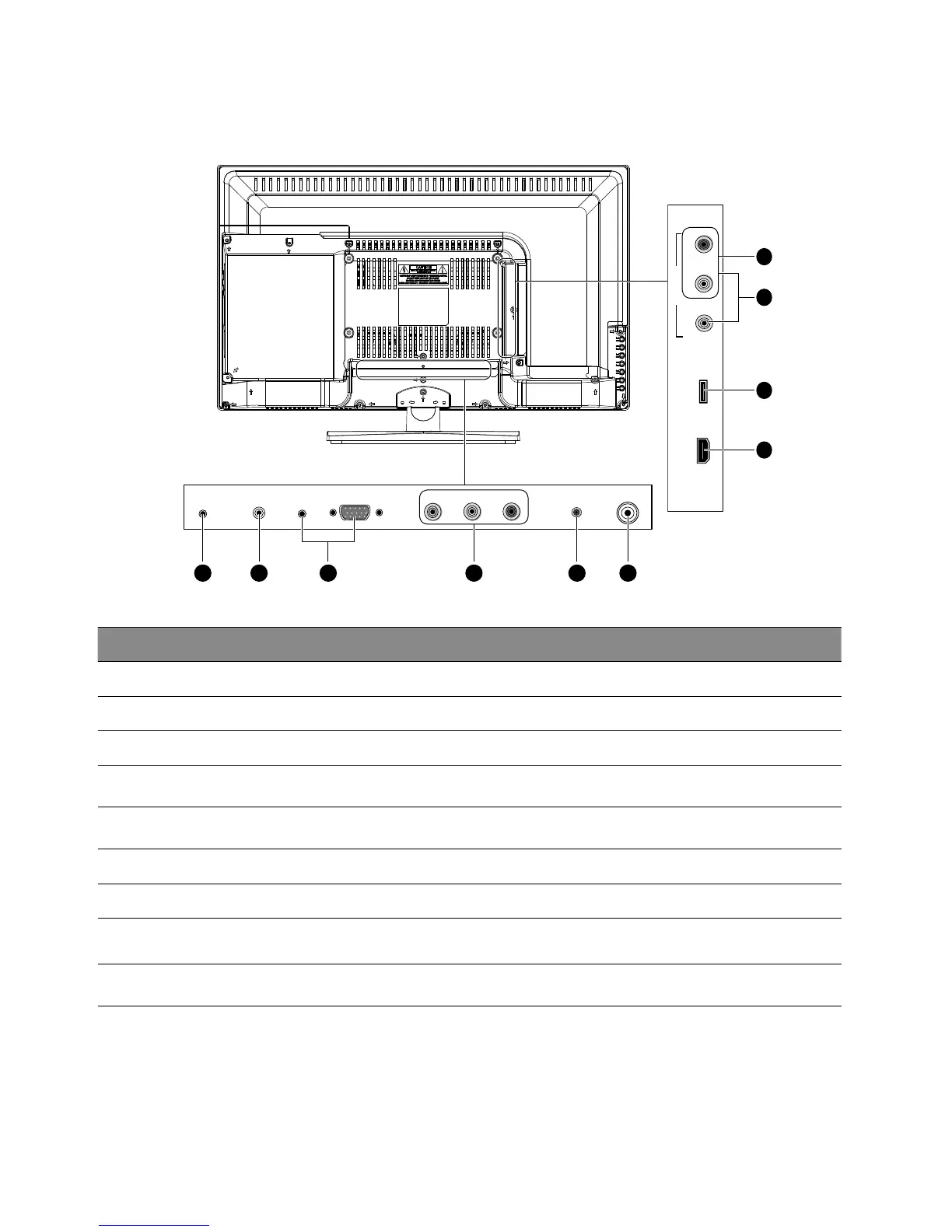

Rear View and Sockets
Item Description
1 DC IN
Connects the mains adapter cable to the mains socket.
2 HEADPHONE Connects to the headphones.
3 PC AUDIO / VGA Connects to a computer or other devices with a VGA interface.
4 Y, Pb, Pr / AUDIO (L/R)
Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
5 Digital Audio Output
(Coaxial)
To connect to the audio socket on the digital/standard 5.1 audio system.
6 RF Connects to the aerial socket on the wall with the RF coaxial cable.
7 VIDEO / AUDIO (L/R) Connects to the Composite output sockets on external video devices.
8 USB
Allows the insertion of a USB storage device to play video, audio, photo and text
files (USB mode) and record DTV programmes on to a USB storage device.
9 HDMI
Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-
ray disc player or AV receiver.
21 43 5 6
USBHDMI
RL
AV INPUT
VIDEO
RF
Digital Audio Output
(COAXIAL)
PC AUDIO HEADPHONEDC IN
VGA Y Pb Pr
9
8
7
4
