05/30/08 Page 4 of 6
LINE 6 CONFIDENTIAL

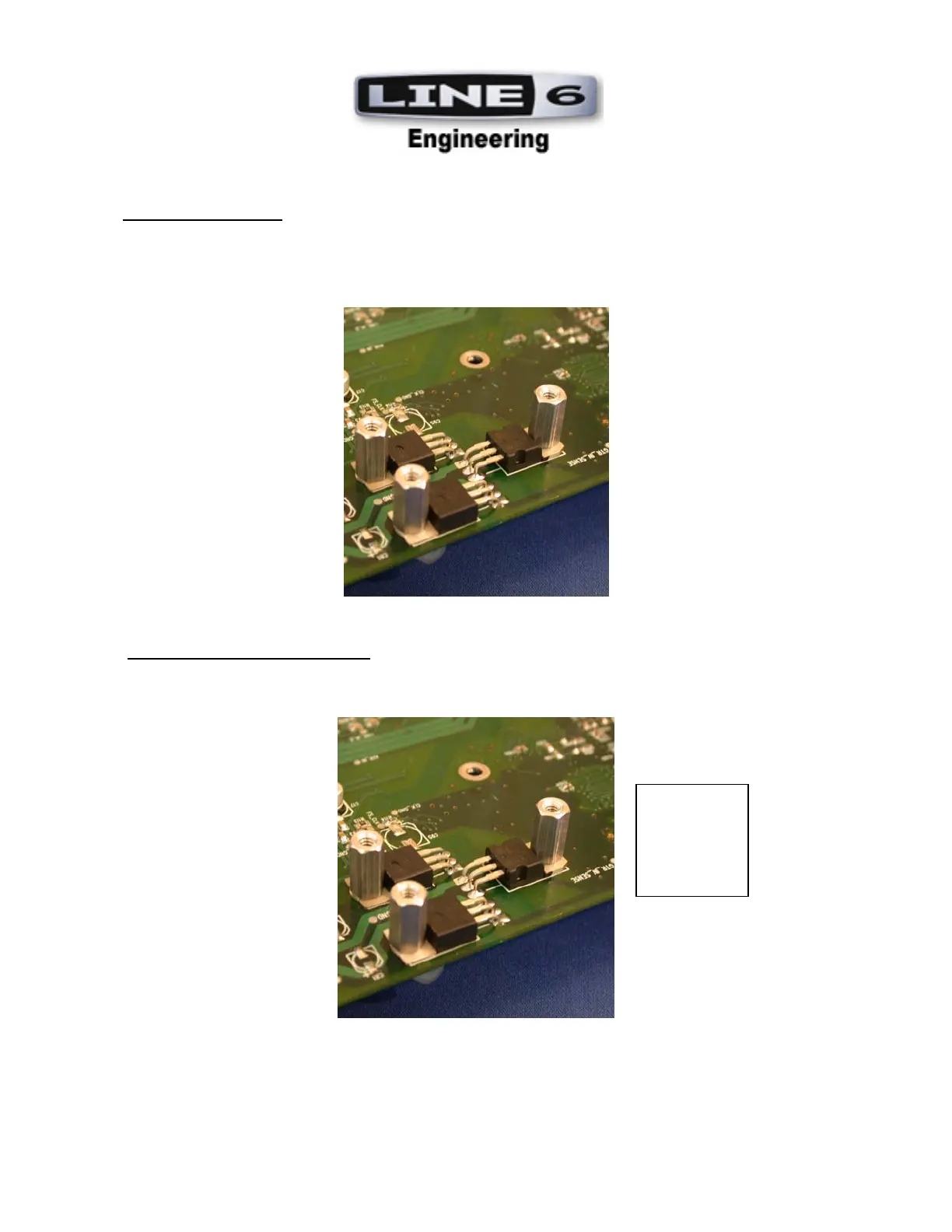

6. REGULATOR ICs: U19 (12-02-7812), U20 (12-02-7912), U21 and U23 (12-02-7805), and U22
(12-00-0317) are to be installed with the case of each IC resting at a 90 degree angle, flush to the
PCB. Be sure that the case of each regulator is lined up with the silkscreen outline within +/-1 degree
of accuracy. See Photo:
7. REGULATOR STANDOFFS: Securely install HEX STANOFF (30-12-0009 STANDOFF HEX
.250 6-32 M-F 0.250-IN AL) at all regulators (U19-23) using Screw (30-00-0043) See Photo:
Standoffs are
not to size –
picture is for
reference
only.
To Next Page
