Line 6 Mechanical Engineering
FloorJam F8-1 Complete
Unit
Assembly Instructions Rev B
Document # L6D000184
Confidential
Page 8 of 22
5/23/2008

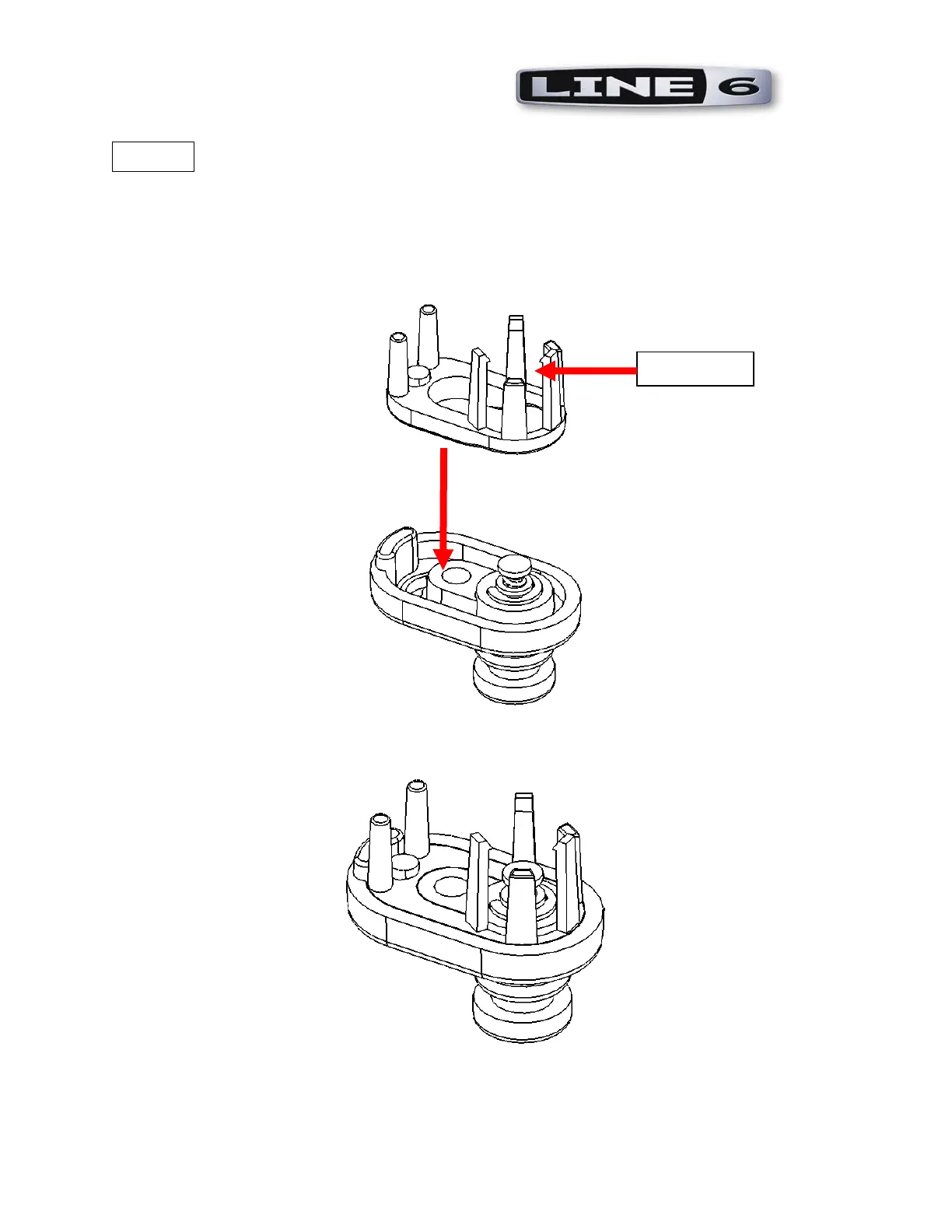

STEP 6
P/N required:
1 each
30-27-0261
FOOTSWITCH LIGHT PIPE
Insert the FOOTSWITCH LIGHT PIPE into the FOOTSWITCH BASE.
REPEAT THE PREVIO
US 3 STEPS
TO CREATE 4 SUBASSEMBLIES.
30-27-0261
33
35
Table of Contents
M13 Stompbox Modeler
1
Main PCBA Schematic
2
UI PCBA Schematic
10
Main PCBA Assembly Instructions
14
UI PCBA Assembly Instructions
20
FLOOR JAM USER INTERFACE_BREAKAWAY PCBA
20
ASSEMBLY INSTRUCTIONS
20
B - Instruction updated to include Ribbon Cable Assemblies. 03/27/2008 ANTHONY PASCUZZO
25
Final Assembly Instructions
27
JM4 Parts List
49
