Line 6 Mechanical Engineering
FloorJam F8-1 Complete
Unit
Assembly Instructions Rev B
Document # L6D000184
Confidential
Page 9 of 22
5/23/2008

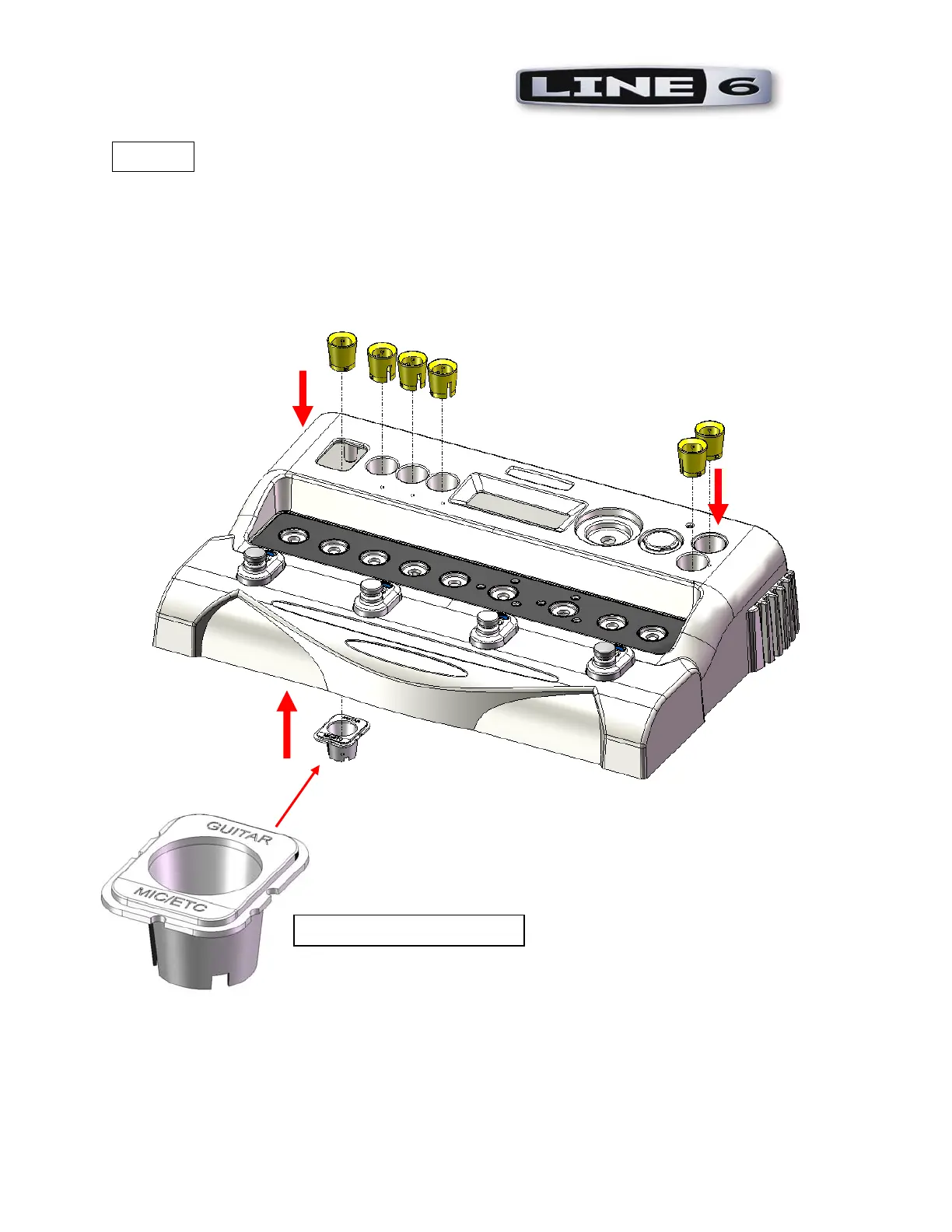

STEP 7
P/N required:
1 each
30-27-0249
BEZEL GUITAR MIC IN 2.5 x .38 PC CLEAR A11-1
6 each
30-27-0251
LIGHTPIPE .60 DIA x .75 AC
RYLIC SEMI-TRANSPARENT
Install the LIGHT PIPES and BEZEL as shown.
Correct BEZEL orientatio
n
34
36
Table of Contents
M13 Stompbox Modeler
1
Main PCBA Schematic
2
UI PCBA Schematic
10
Main PCBA Assembly Instructions
14
UI PCBA Assembly Instructions
20
FLOOR JAM USER INTERFACE_BREAKAWAY PCBA
20
ASSEMBLY INSTRUCTIONS
20
B - Instruction updated to include Ribbon Cable Assemblies. 03/27/2008 ANTHONY PASCUZZO
25
Final Assembly Instructions
27
JM4 Parts List
49
