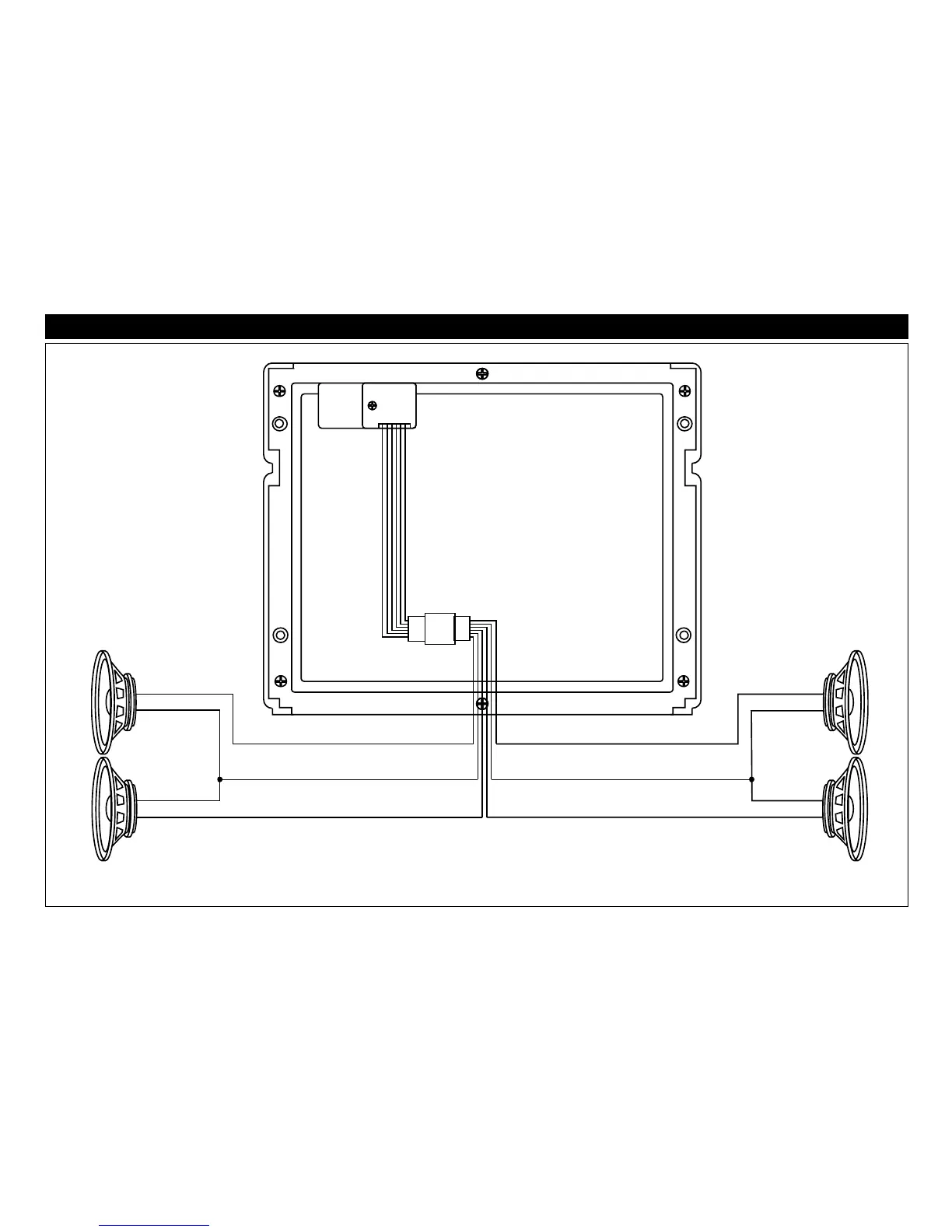

SPEAKER CONNECTIONS
+
_
+
_
+
_
+
_
Left Speaker (B)
Left Speaker (A)
Right Speaker (B)
Right Speaker (A)
BROWN Wire
ORANGE Wire
GREEN Wire
GRAY Wire
WHITE Wire
BLUE Wire
Speaker Connections: Do not confuse the A and B speaker sets
