HSLG Slide Gate Operator Installation Guide - 18 - P1220 Revision X8 6-22-2011

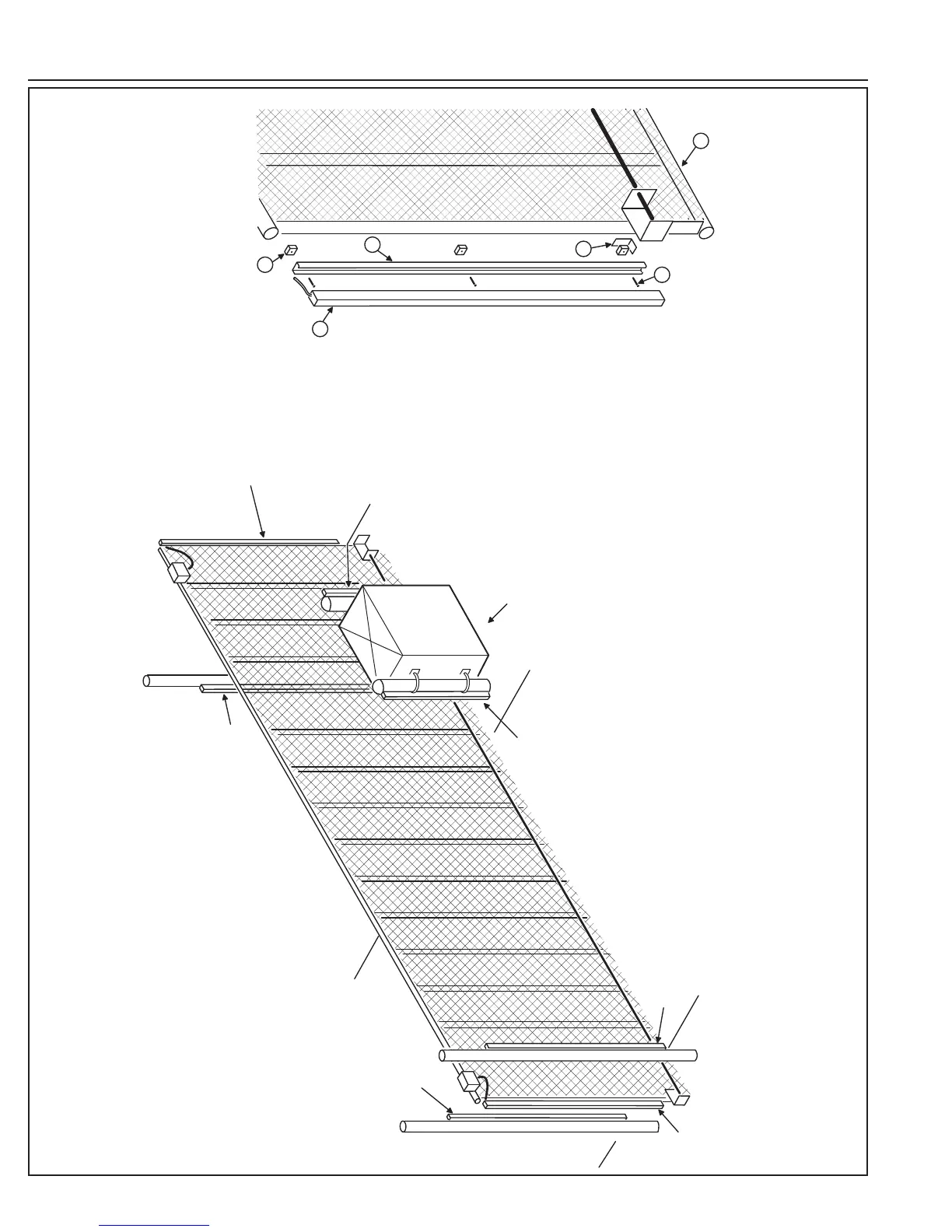

Safety Edge Layout Illustration #1
NOTES:
1. WIRE THESE EDGES FOR CLOSE OBSTRUCTION
2. WIRE THESE EDGES FOR OPEN OBSTRUCTION
3. ON LEADING EDGE, WIRE FOR CLOSING OBSTRUCTION
OR REVERSING IF DESIRED
4. ON TRAILING EDGE, WIRE FOR OPEN OBSTRUCTION
REFER TO ACCESSORY CONNECTIONS PAGES FOR DETAILS
5. IF SEN
SOR EDGES ARE HARD WIRED TO THE OPERATOR, CARE
MUST BE TAKEN IN ROUTING THE WIRES SUCH THAT THEY DO
NOT BECOME DAMAGED DURING NORMAL OPERATION
(AVOID PINCHING AND ABRASION)
THIS DRAWING IS INTENDED TO DRAW ATTENTION TO POSSIBLE
LOCATIONS FOR THE INSTALLATION OF CONTACT OR NON-CONTACT
OBSTRUCTION SENSING DEVICES. OTHER AREAS OF ENTRAPMENT
MAY EXIST DEPENDING ON EACH SPECIFIC INSTALLATION.
SEE NOTE
ITEM #4
SEE NOTE
ITEM #1
SEE NOTE
ITEM #2
SLIDE GATE OPERATOR WITH
RADIO RECEIVER MOUNTED INSIDE
SEE NOTE
ITEM #2
SEE NOTE
ITEM #1
SEE NOTE
ITEM #1
SEE NOTE
ITEM #3
1 GATE (REFERENCE ONLY)
2 EDGE
3 EDGE EXTRUSION
4 SPACERS (3)
5 8-32 X 1" SCREWS (3)
6 RETAINING BRACKET
REVERSING EDGE
ASSY CLOSEUP
1
2
3
4
5
6
ITEM DESCRIPTION
FOR CLARITY, FENCE AND
PEDESTRIAN GATE NOT SHOWN
