6.4 CHARGING SYSTEM

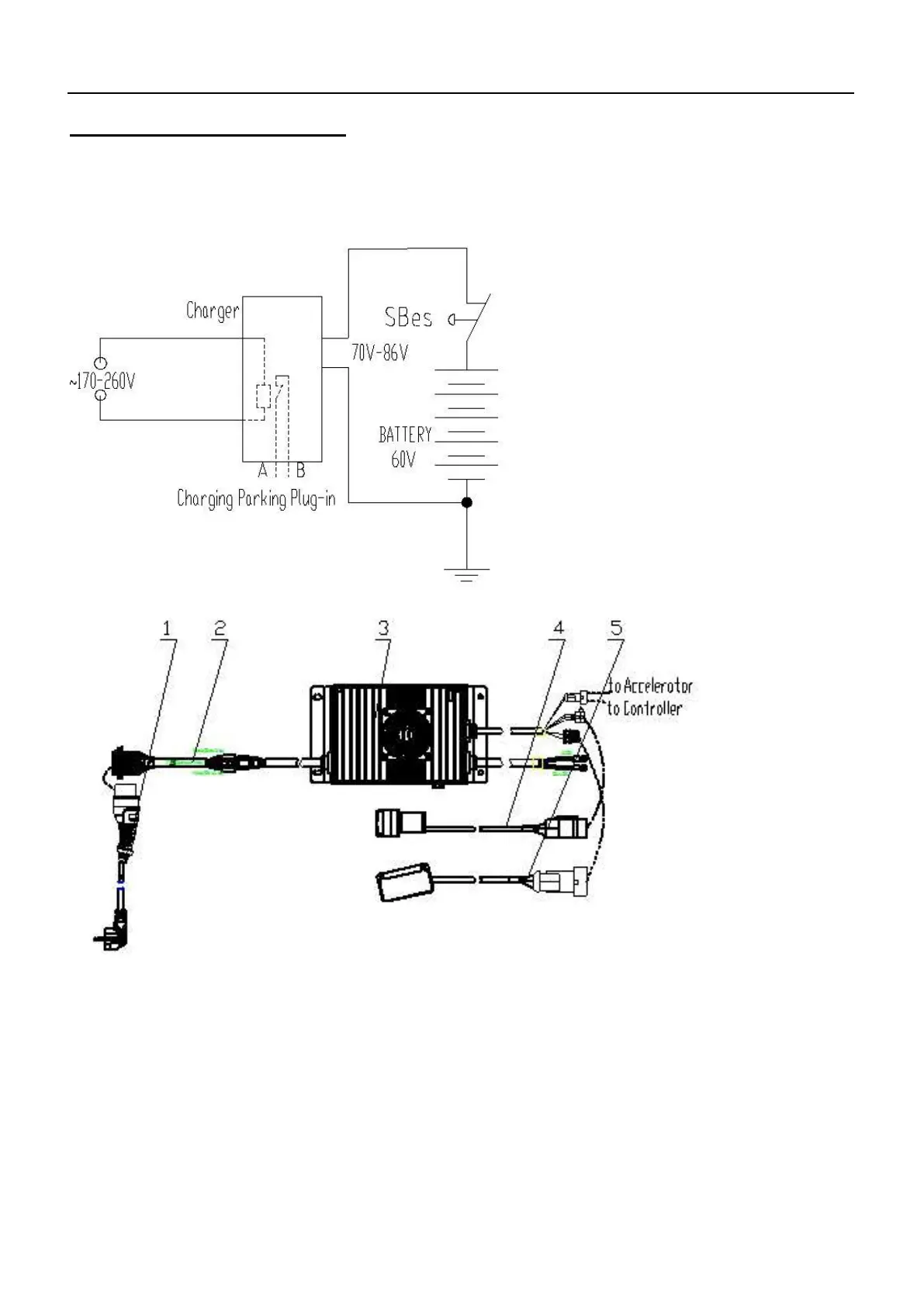

CHARGING SYSTEM CIRCUIT DIAGRAM
Connecting positive and negative poles of battery pack (Red Wire Connecting Positive Pole)
1、Charging interface：
2、Charger socket
3、Charger body
4、Charging display lamp：
5、Battery temperature sensor
When the charger is connected to 220V AC power supply, the voltage at both ends of the battery pack
increases by 5-25V.
