9
3. To complete the debugging of one of the following special-shaped 2 stitching as an example: (This
image is HDMI signal input, the debug image is the above USB input as an example)

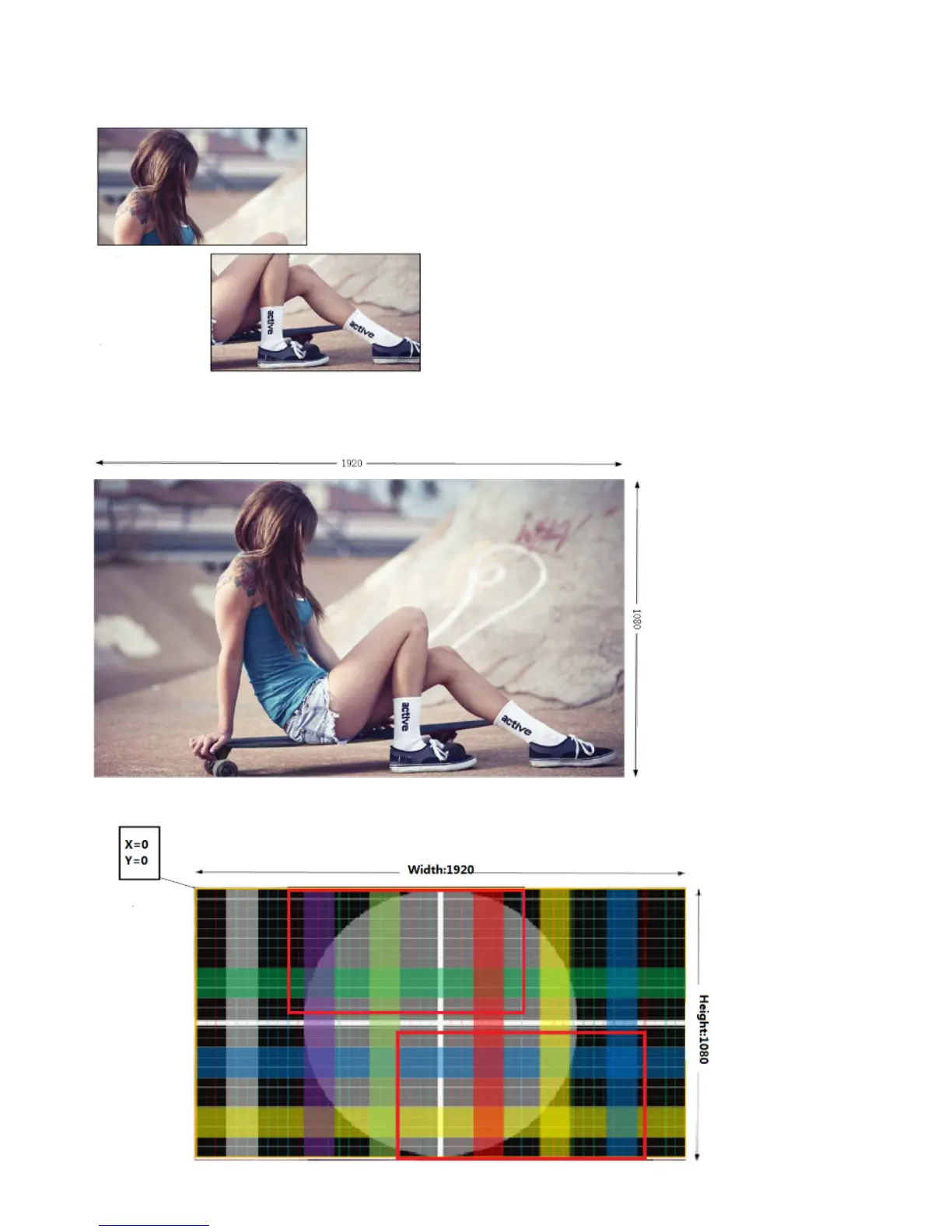

5. Define the signal input to the splicing processor as an image with a length of 1920 pixels and a height of 1080 pixels. The
upper left corner is the starting point 0 of the horizontal X and the vertical Y, as shown in the following figure:
3.2, Estimate the starting point of the coordinates and the width and height of the image as follows:
