Linksys AE1000 User Manual

Linksys AE1000 Chapter 3: Wireless Network Configuration
6
High Performance Wireless-N USB Adapter

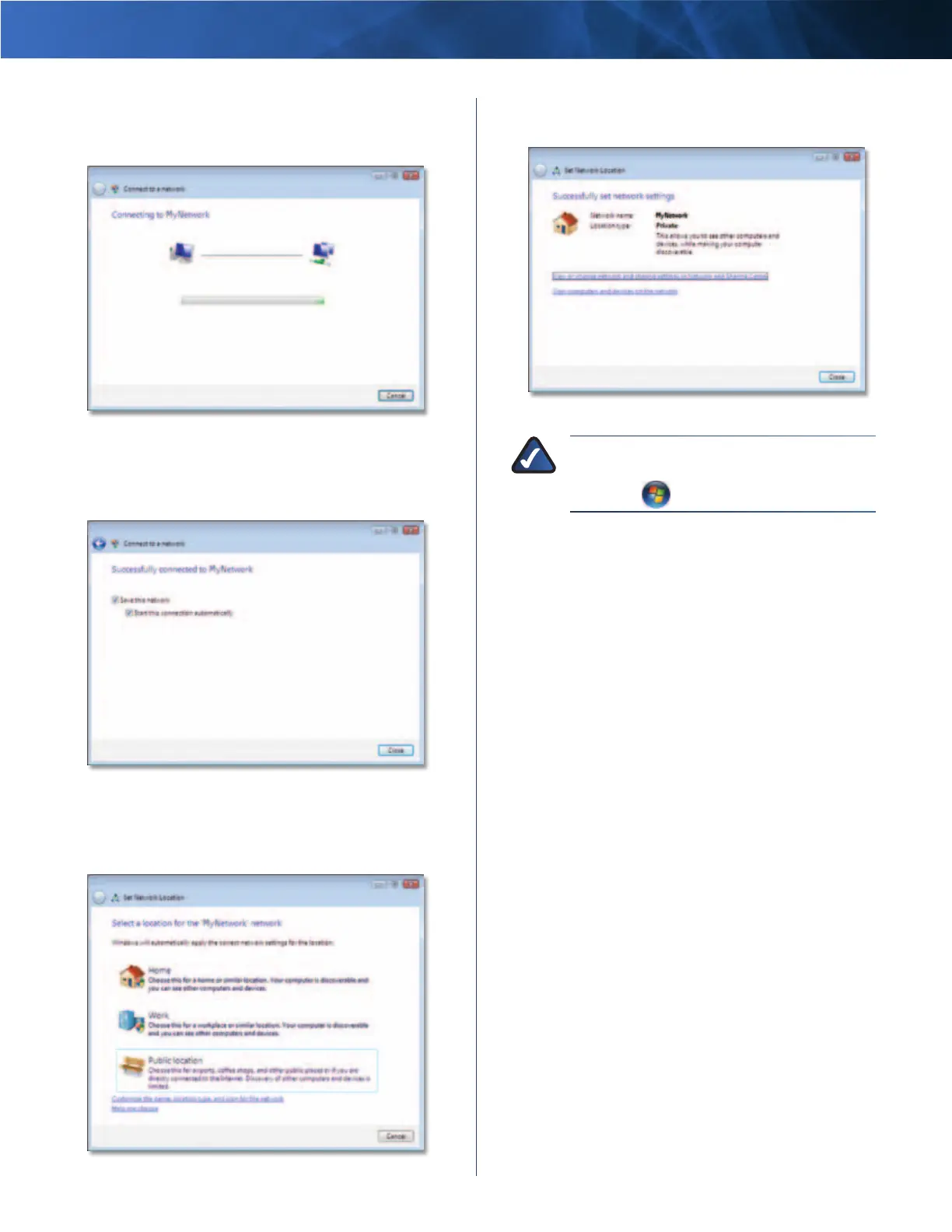

6. This screen appears while the Adapter connects to
your network. Do not cancel, unless you want to end
the installation.
Connecting to Network
7. This screen appears when you are connected to your
network. Select Save this network, if you want to save
your settings. Click Close.
Connected to Network
8. The Set Network Location screen may appear. This
screen helps apply the correct settings for your type of
location. Select Home, Work, or Public location.
Select Network Location
9. This screen varies according to the selected location.
Click Close.
Network Settings Saved
NOTE: For help with the Wireless Network
Conguration utility, refer to Help and Support.
Click Start
> Help and Support.
Your computer is now connected to your
wireless network.

Linksys AE1000 Specifications

General

Interface	WLAN
Connectivity technology	Wireless
Chipset	-
Internal	No
Certification	FCC, CE, IC, UL, RoHS, WEEE, IDA, C-Tick, Wi-Fi A/B/G/N
Product color	Black
Security algorithms	WEP, WPA, WPA2
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Link/Act LED	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	79.9 mm
Width	25.4 mm
Height	12.4 mm
Weight	11 g
