Field Electronics Setup Guide APPENDIX
Rev 10 1/23/2013 26 ©2012 FIRST Tech Challenge
Critical
Cable distance between the FCS computer and the Drivers Station Hub
cannot exceed 15’
DO NOT USE EXTENDERS ON THE USB CABLES.
NOTE: If the FCS computer does not have at least 3 USB ports, use of a
USB hub should only be used for the mouse and flash drives. Reserve the
computer's direct USB Ports for Controller Hubs
7. APPENDIX
8.1. Field Setup Illustration
Recommended:

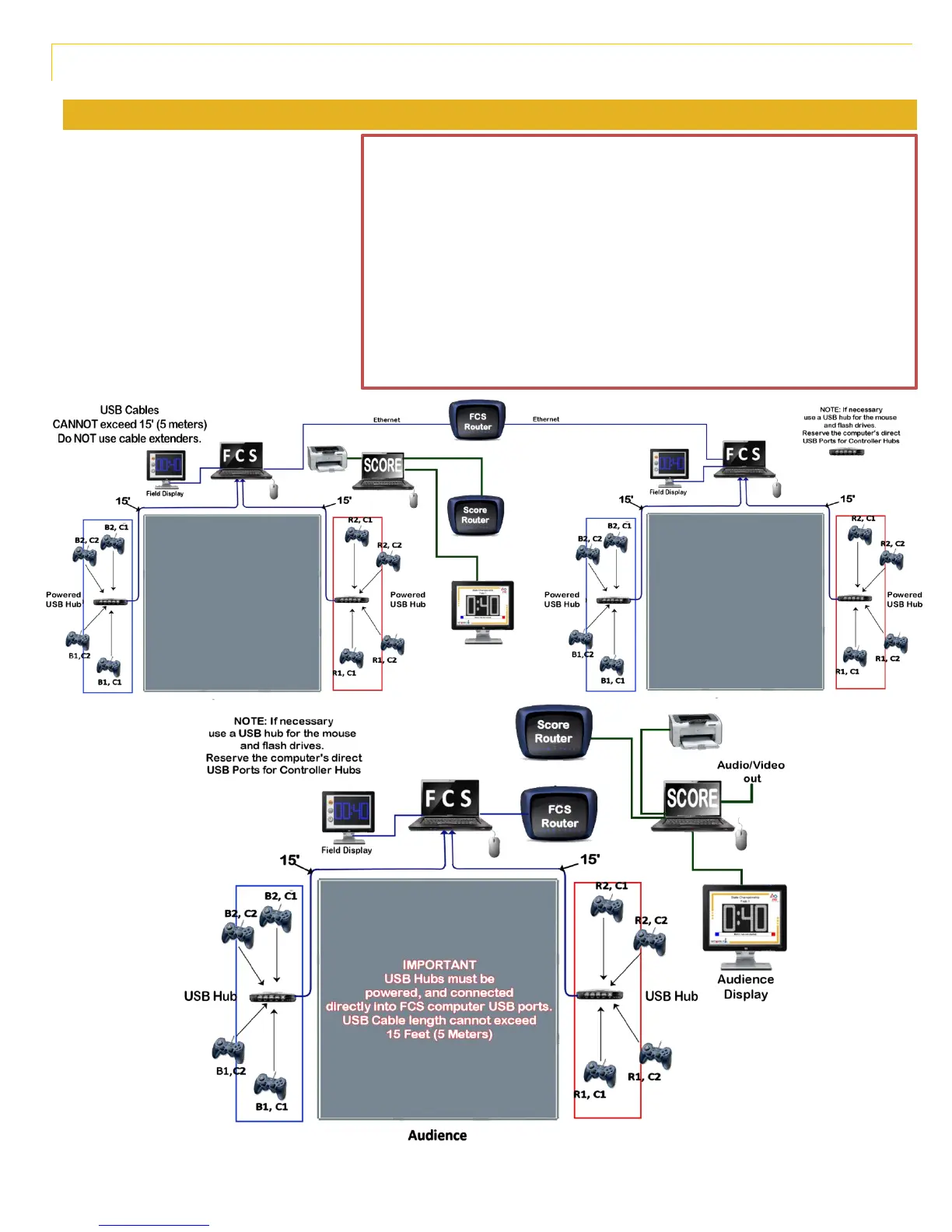

Below is a floor representation of the
field layout with the Scoring System
separate from the FCS. The controllers
should be labeled as shown, to
correspond with the screen perspective
of the FCS software.
