A.1 Examples of NMEA 2000® Client/Server Architectures
N2KServer
®
may run on a Windows PC (using Maretron’s USB100 gateway - see and ) or
N2KServer
®
may run directly on an IPG100 (see Figure 2).

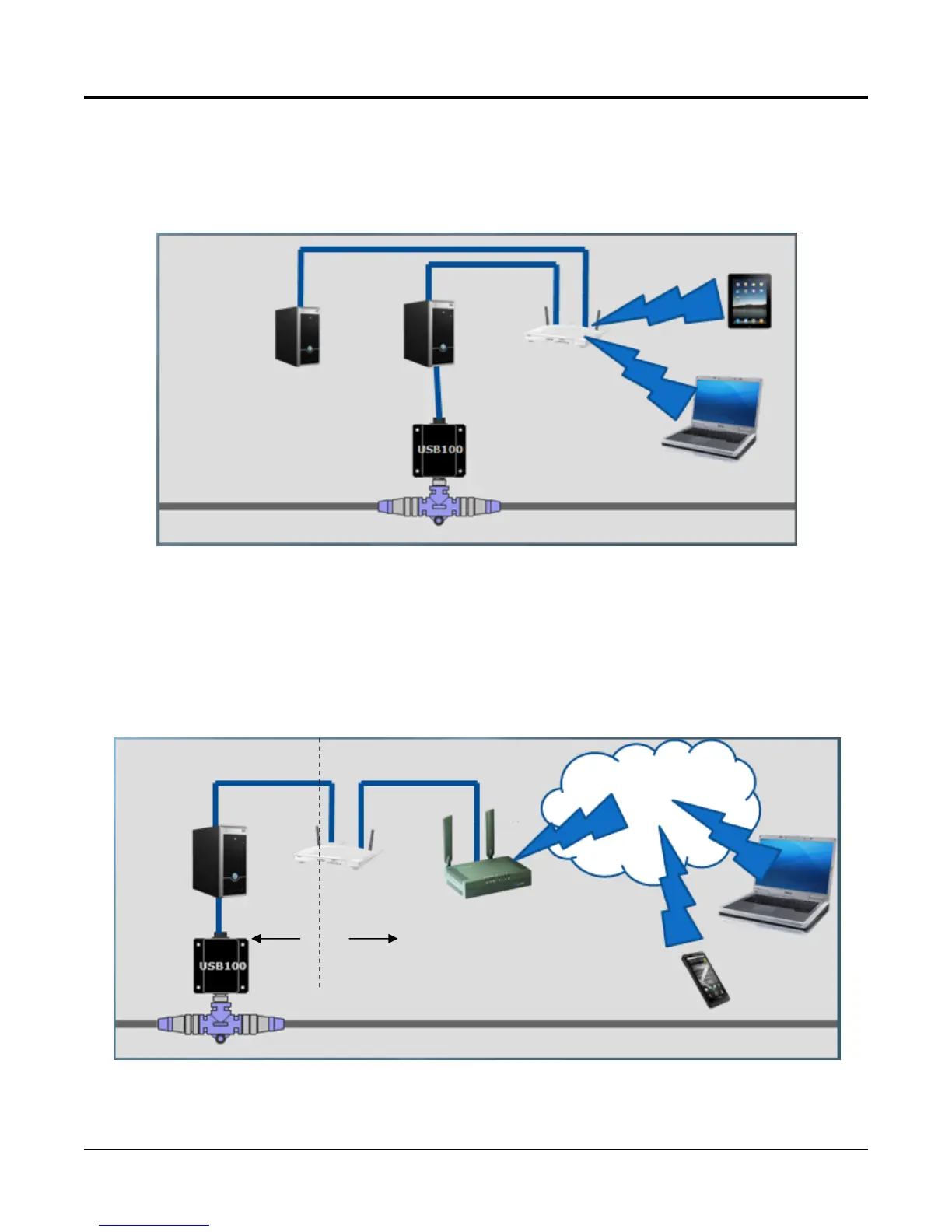

Figure 2 – LAN Client/Server Architecture Example with USB100
Figure 2 shows an example of a Local Area Network (LAN) connection including the PC to
NMEA 2000
®
network connection through a USB100 gateway. A copy of N2KServer
®
must run
on the PC connected to the USB100, and an N2KView
®
Hardware License Key must be
plugged in to the PC to supply sufficient licenses for the maximum number of simultaneously
connected clients. N2KView
®
clients may run on either the PC connected to the USB100, or to
another PC connected to the router, or to a laptop or mobile device connected wirelessly.
Page 20 Revision 1.1
LAN WAN
Figure 3 – WAN Client/Server Architecture Example through the Internet
