Linksys E2000 Configuration Guide

®®
From now on, we will just show the screens from Firefox – the screens from other browsers will
be very similar.

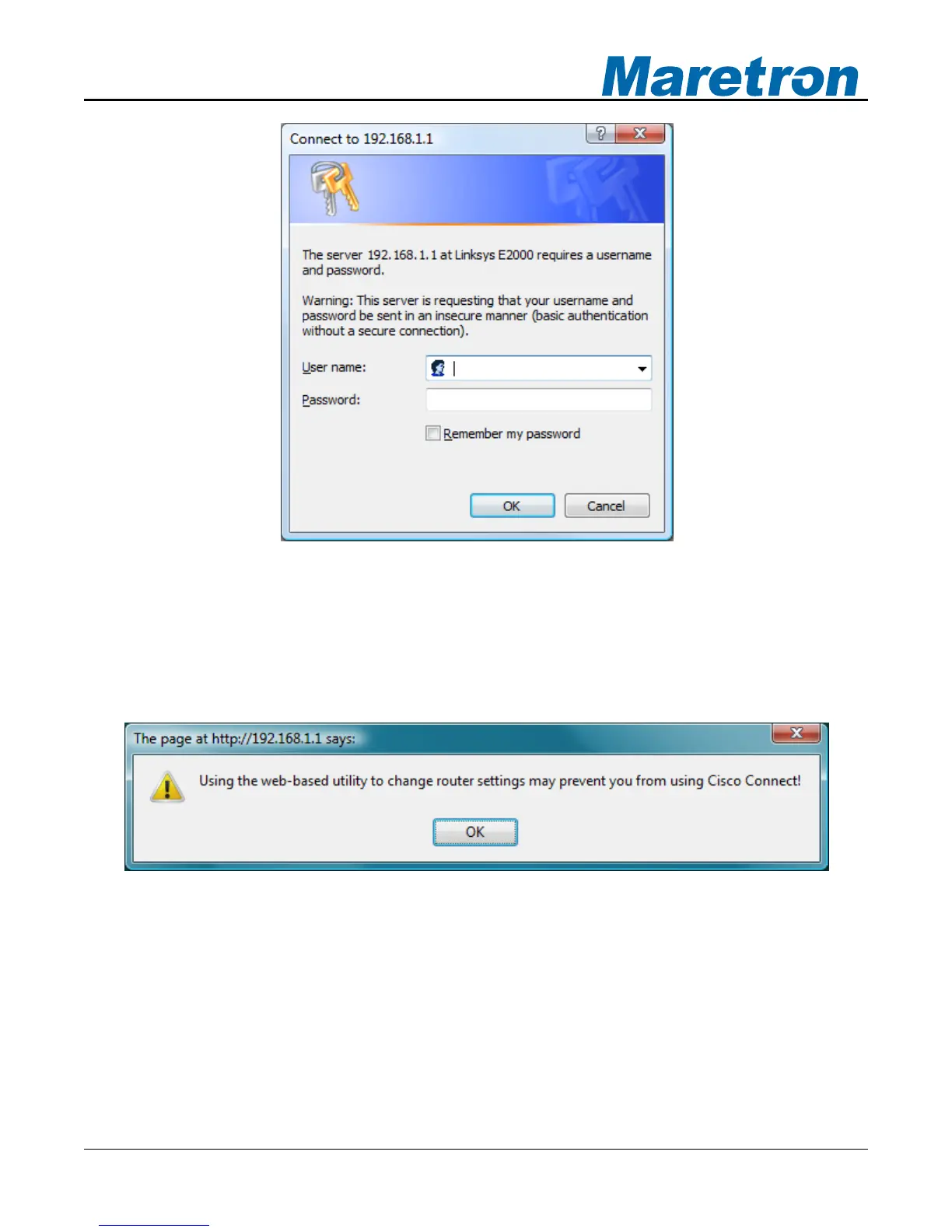

Leave the User name blank, and enter the default Password, which is admin and press the
OK button.
You may see the following message:
Cisco connect is a utility that comes with the router. It generalizes the setup procedures, but
we will not be using it to configure the WiFi/Router, so press the OK button to remove the
message.
Revision 1.1 Page 7

Linksys E2000 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Input current	1 A
Input voltage	12 V
Dimensions (WxDxH)	202 x 34 x 160 mm
WLAN data transfer rates supported	300 Mbit/s
DHCP client	-
Antennas quantity	3
Antenna gain level (max)	2.2 dBi
Web-based management	No
Security algorithms	WEP, WPA, WPA2
Certification	FCC, CE, IC-03, Wi-Fi
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Weight	300 g
