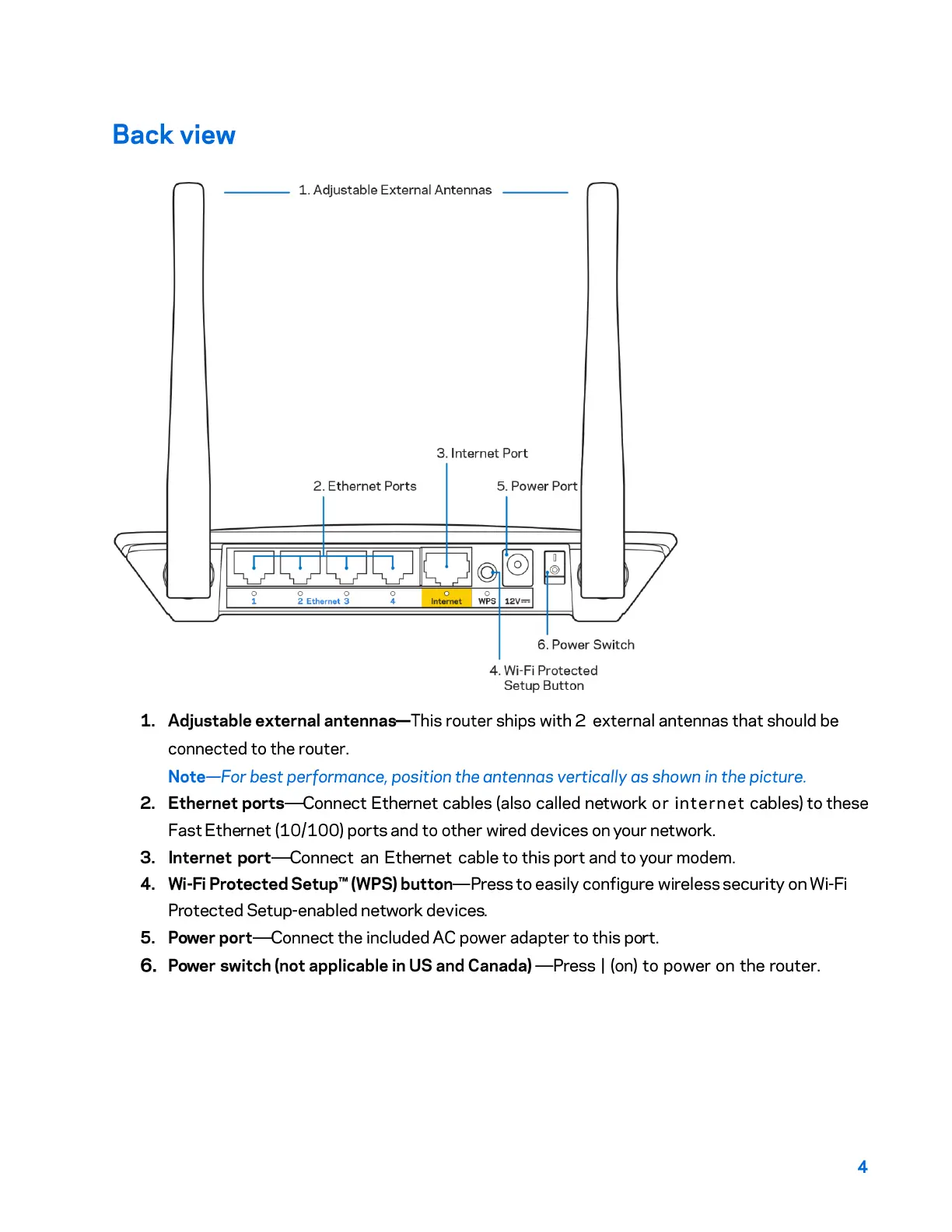

Linksys E2500 User Manual

Back view
--- 1. Adjustable External Antennas
0
1
2. Ethernet Ports
0 0
2 Ethernet 3
0
4
3. Internet Port
5. Power Port
0 O
Internet
WPS 12V=
6. Power Switch
4.
Wi-Fi Protected
Setup Button
1. Adjustable external antennas- This router ships with 2 external antennas that should be
connected
to the router .
Note-For best performance , position the antennas vertically as shown in the picture .
2. Ethernet
ports-Connect Ethernet cables (also called network or internet cables) to these
Fast
Ethernet (10/100) ports and to other wired devices on your network .
3. Internet
port-Connect an Ethernet cable to this port and to your modem.
4. Wi-Fi Protected
Setup™ (WPS) button-Press to easily configure wireless security on Wi-Fi
Protected Setup-enabled
network devices.
5. Power
port-Connect the included AC power adapter to this port .
6. Power switch (not applicable in US and Canada) -Press I (on) to power on the router .
4

Linksys E2500 Specifications

General

Color	black
Wi-Fi Speed	600 megabits per second
Band Technology	dual
Frequency Band	2.4 ghz, 5.0 ghz
QoS Traffic Prioritization	yes
Ethernet Standard	10/100/1000
Wireless Standard	n
Parental Control	yes
Firewall	spi
Data Encryption	yes
Encryption Type	wpa, wpa2
Security Features	yes
Ports	rj-45
WAN Ports	1
Built In Modem	yes
System Requirements	pc: windows xp (sp3), vista (sp1) or 7; mac: os x leopard 10.5 or snow leopard 10.6; cd or dvd drive

Weight and Dimensions

Height	10.1 inches
Width	12.8 inches
Net Weight	1.7 pounds
