Linksys EA6100

1
Product Overview
Linksys EA-Series
EA6100

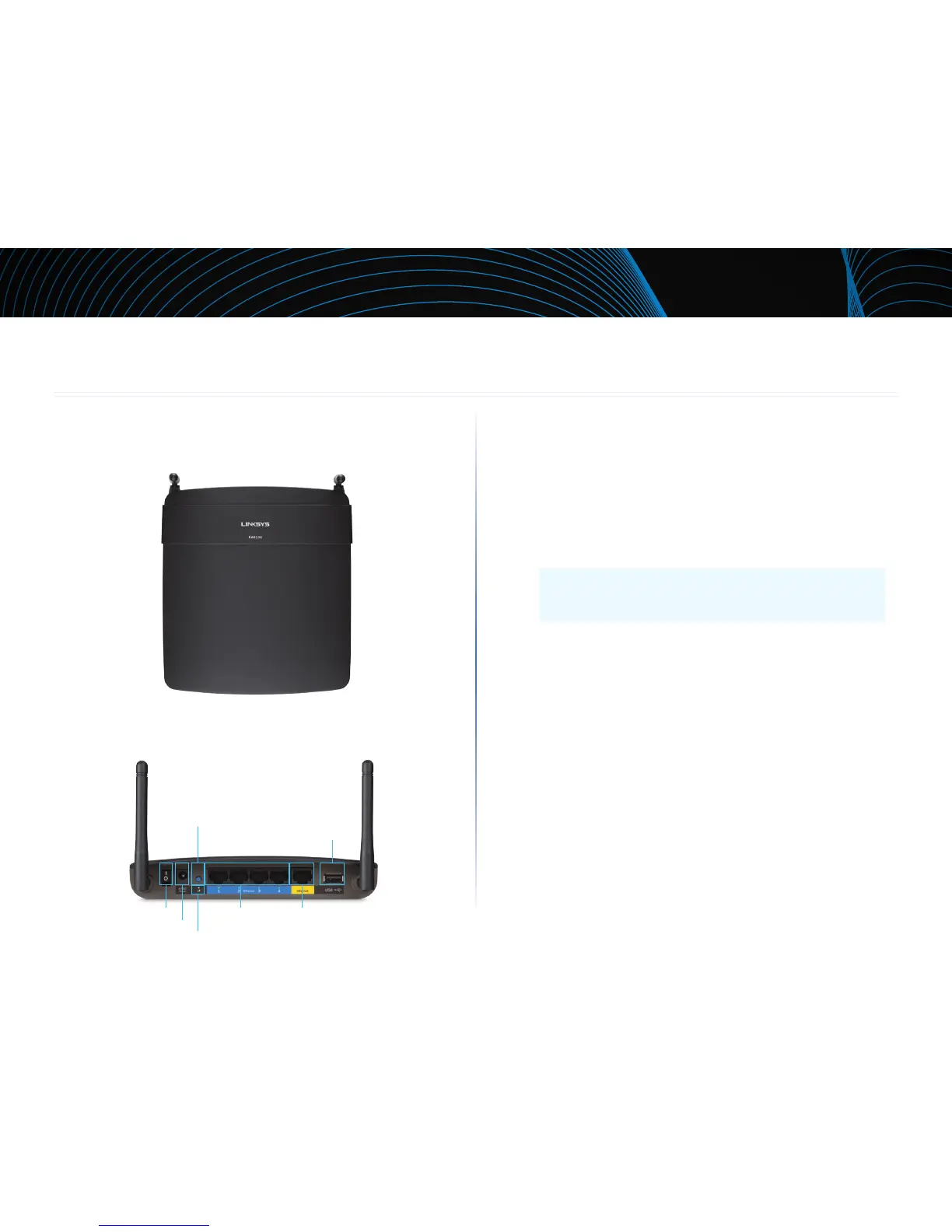

Top View
Back View
• Power switch — Press | (on) to turn on the router. Only available on
European model.
• Power port — Connect the included AC power adapter to this port.
• Indicator light — Stays on steadily while power is connected and
following a successful Wi-Fi Protected Setup™ connection. Flashes
slowly during bootup, during firmware upgrades, and during a Wi-Fi
Protected Setup connection. Flashes quickly when there is a Wi-Fi
Protected Setup error.
• Wi-Fi Protected Setup button —Press this button to easily configure
wireless security on Wi-Fi Protected Setup-enabled network devices.
NOTE
For best performance, use CAT5e or higher rated cables on the
Ethernet ports.
• Ethernet ports — Connect Ethernet cables (also called network
cables) to the blue Fast Ethernet (10/100) ports, and to wired devices
on your network.
• Internet port — Connect an Ethernet cable (also called a network or
Internet cable) to the yellow port and to your modem.
• USB port — Connect a USB device to share with other users on your
network or on the Internet. You can connect a storage device or a
USB printer.
Product Overview
Power port
Power switch
Indicator light
Wi-Fi Protected Setup™ button
Ethernet ports Internet port
USB port
