Linksys WRT54G Configuration Note

Linksys Wireless G WRT54G
Interlink Networks, Inc. Page 2 of 9
Linksys WRT54G Router.doc 11/8/2004 2:11 PM
Connecting to the Router
1 Connect the Router to the same network hub as the workstation you will use to configure it.
This workstation does not necessarily have to be the LucidLink server host computer.
o Connect the Ethernet Cable to the Ethernet connector port.
o Connect the power pack output to the power port.
o Reset to factory default with reset button in back.
3 Open an Internet browser and in the address field enter the default IP address 192.168.1.1.

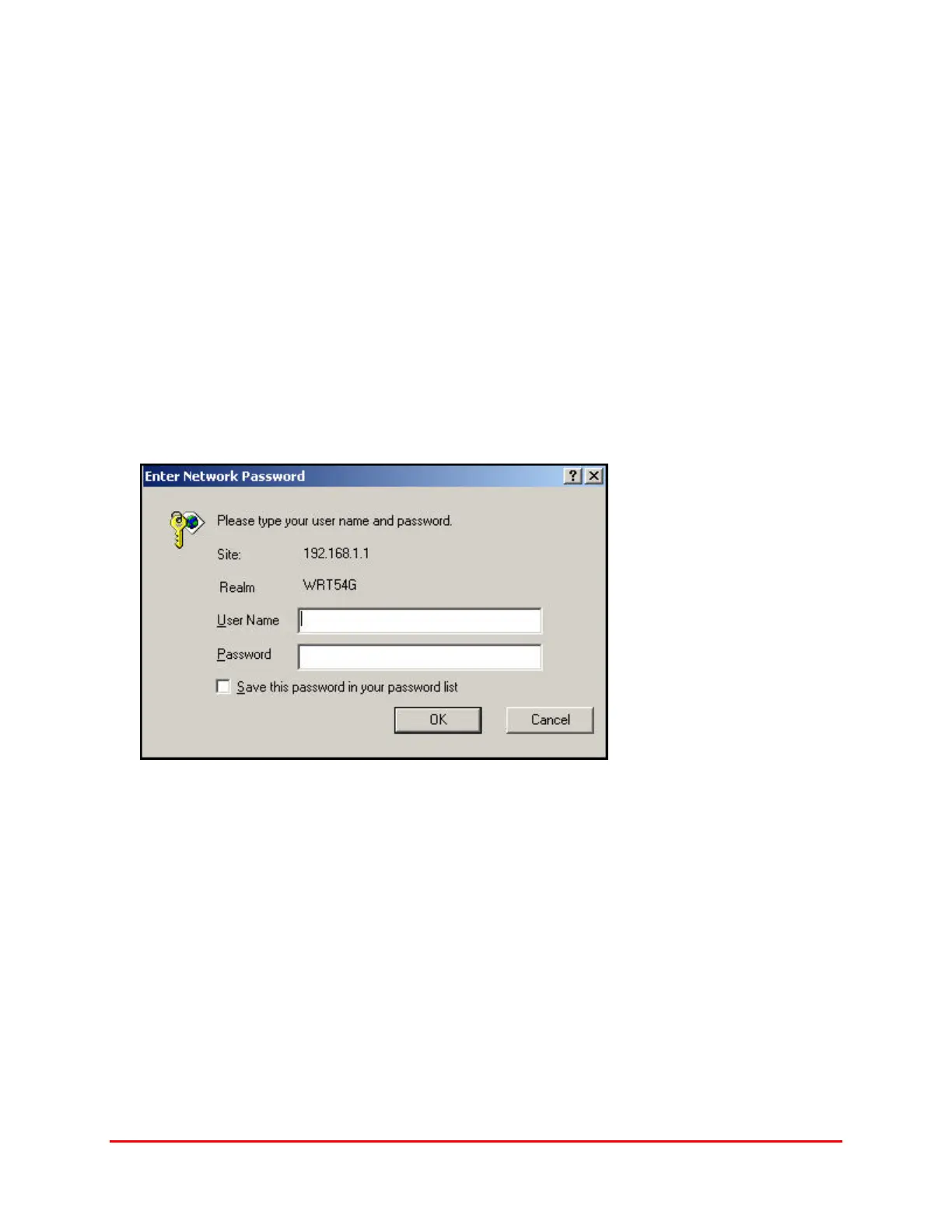

4 At the login box, enter User Name and Password.
Linksys factory defaults are blank for User Name and admin for Password.

Linksys WRT54G Specifications

Power

power output	18 dBm
power supply	External, 12V DC, 0.5A

Operating Environment

operating temperature	0° C to 40° C (32° F to 104° F)
storage temperature	-20° C to 70° C (-4° F to 158° F)
operating humidity	10% to 85% Non-Condensing
storage humidity	5% to 90% Non-Condensing

Ports & Interfaces

internet port	One 10/100 RJ-45 Port
lan ports	Four 10/100 RJ-45 Switched Ports
power port	One Power Port

Weight and Dimensions

dimensions	7.32” x 1.89” x 6.06” (186 x 48 x 154 mm)
weight	13.09 oz. (371 g)
