Chapter 2: Get started
Linx 5900 & 7900 Quick Start Guide 20 FA69315–5 English
2.3.2 Manual raster selection
After you save a message you still have the option to manually select a
raster for that message. The Message Type page is displayed. This shows a
list with the currently selected raster highlighted and any associated rasters.

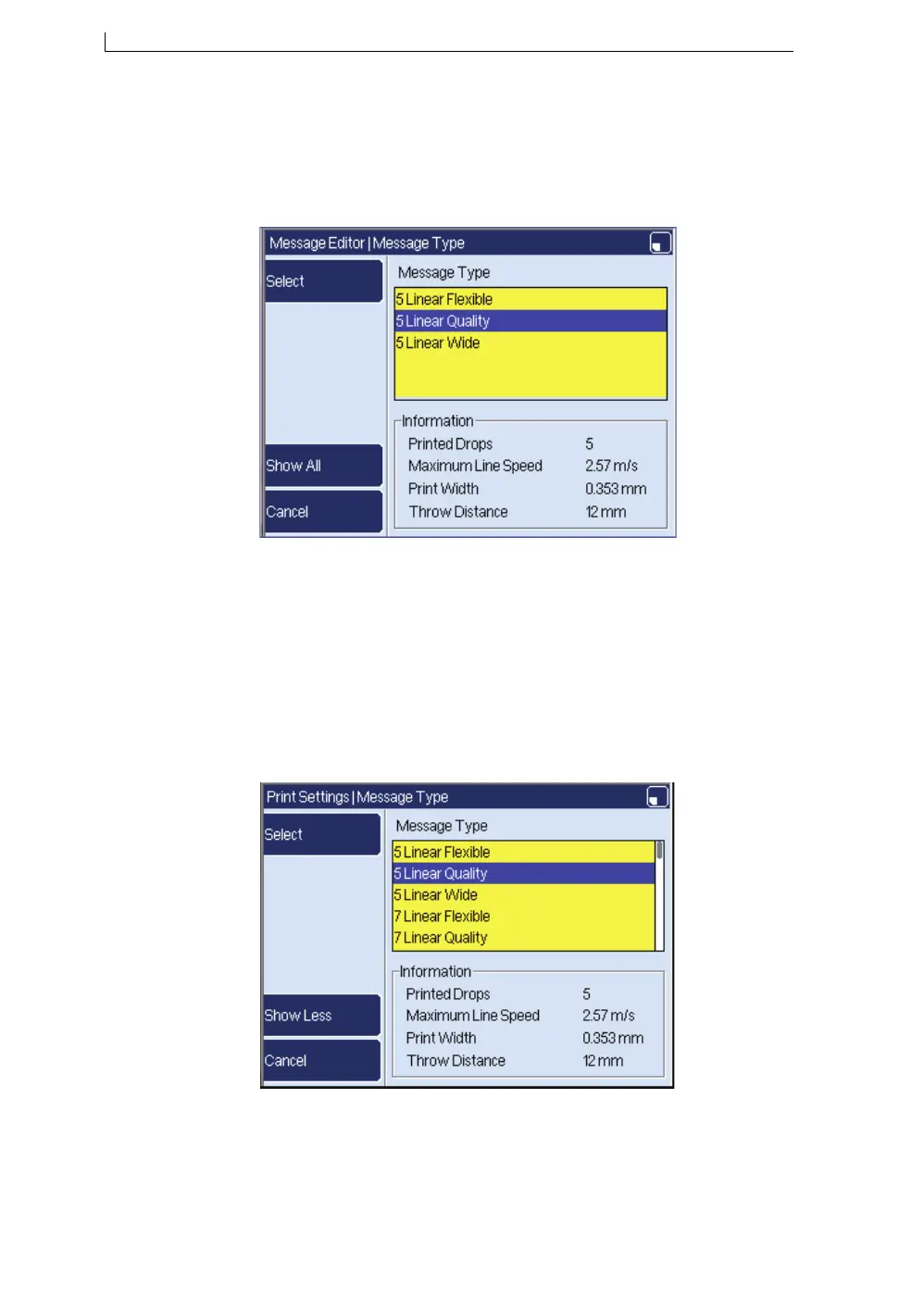

Figure 2-8. Message Type page: Message Type (short raster list)
The Information box contains information about each raster to help you
select the most suitable one for your application.
If the message is new and has not been saved, or has had a raster
specifically selected, the full list of available rasters is displayed.
If the short list of rasters is displayed, press the Show All key to view the
full list of available rasters. The name of the key changes to Show Less.
Press the key again to display the short list of rasters.
Figure 2-9. Message Type page: Message Type (full raster list)
