Rev: 08.30.21 Page 10 CCD-0004385
A

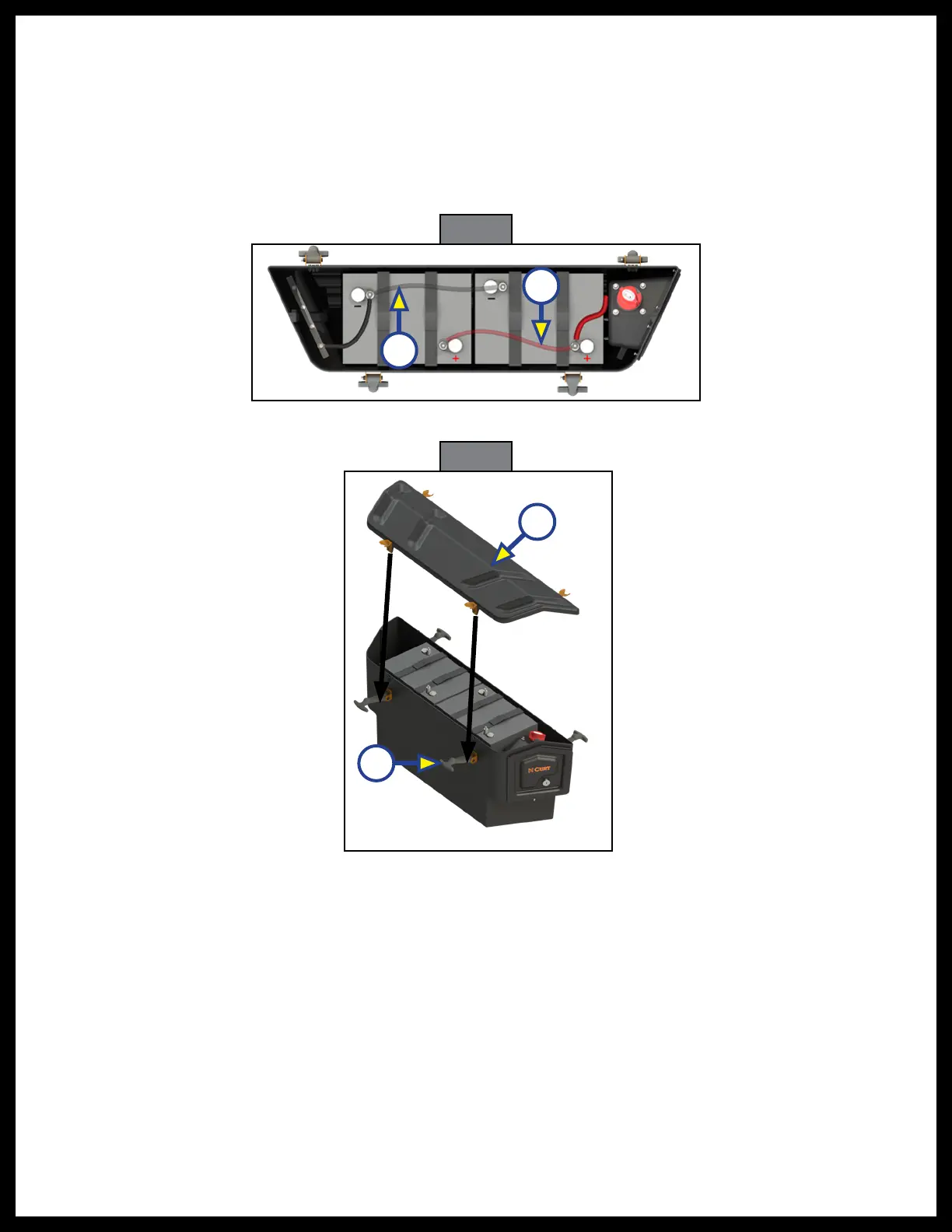

5. If two 12V batteries are used, they should be wired up in parallel:
A. 6 AWG cable should be attached to the negative, frame grounded terminal of one battery and
connected to the negative terminal of the other battery (Fig. 13A).
B. A 6 AWG cable should be connected to the positive post of the one battery, and to the positive
post of the other battery (Fig. 13B).
Note: If applicable when installing the battery.
Note: Cables depicted in a lighter shade (Fig. 18A and B) not supplied.
6. Attach the top on the battery box (Fig. 14A) and clamp shut (Fig. 14B).
Fig. 13
Fig. 14
B
A
B
To Next Page
