Preparation
Note: Adhere to all manufacturer's torque specs for OEM-supplied materials.

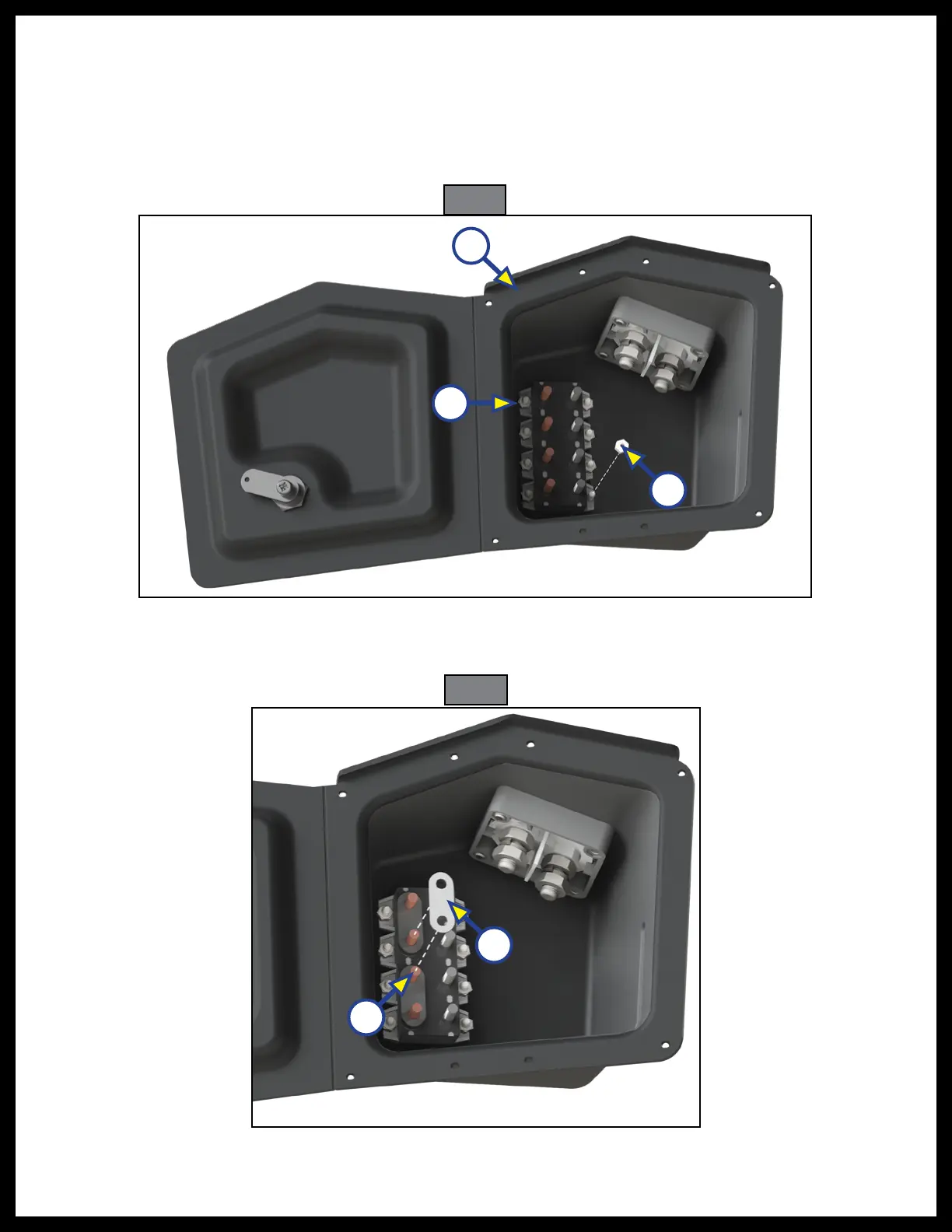

1. Mount ignition protected circuit breaker(s) (Fig. 1A) into the side door housing (Fig. 1B) using a 1/2" #8
bolt with nylock nut. Pre-drill holes that match the breaker mounting points (Fig. 1C). Install the nut on
the inside of the box.
Fig. 1
C
A
B
B
A
Note: Insert the circuit breaker mounting bolts through the back side of the side door housing and install
the nylock nuts on the breaker side.
