Lipper Curt - Installation

Rev: 08.30.21 Page 6 CCD-0004385

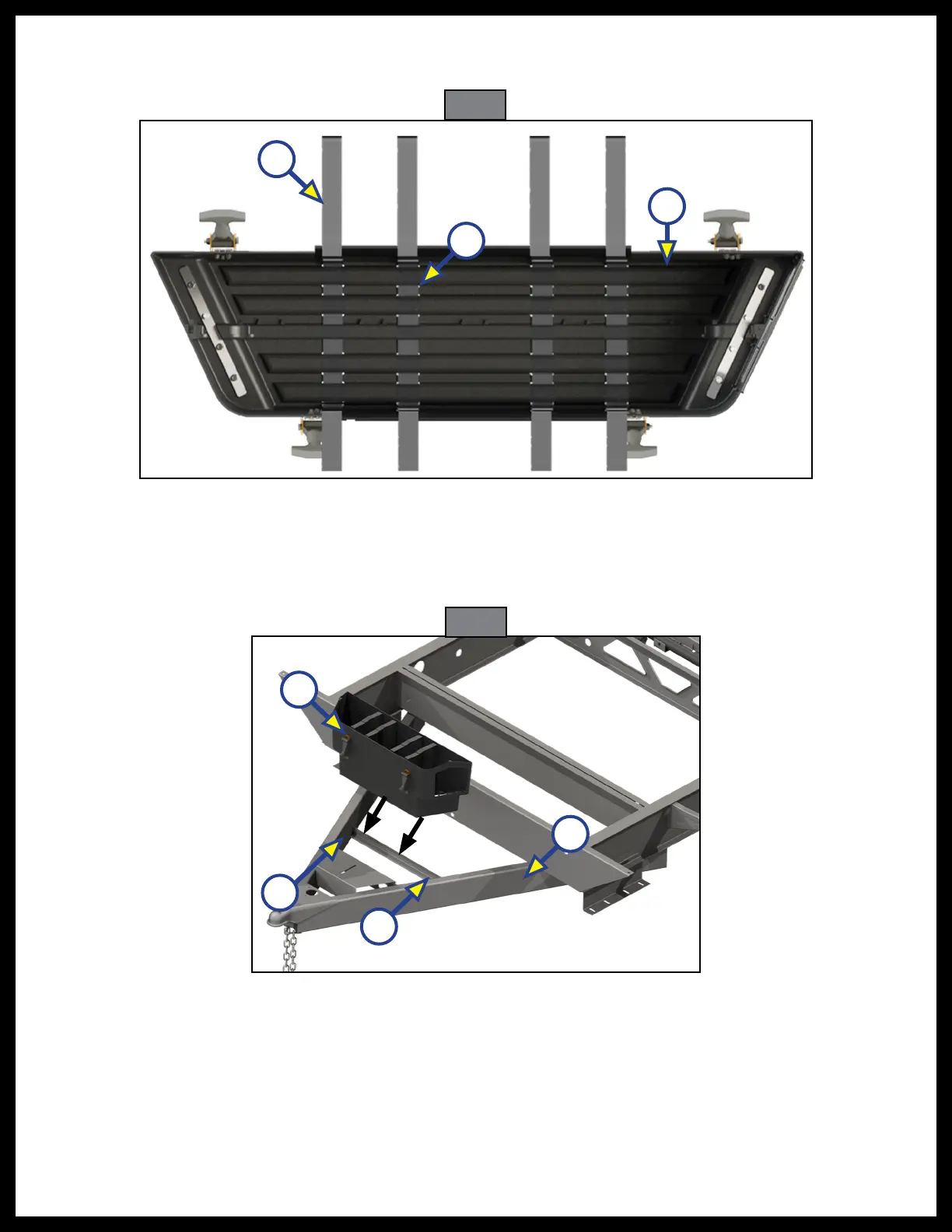

Fig. 5
B
6. Insert nylon battery hold down straps (Fig. 5A) through the slits (Fig. 5B) in the bottom of the battery
box base assembly (Fig. 5C).
A
C
Fig. 6
Installation
1. Set the battery box base assembly (Fig. 6A) into the A frame (Fig. 6B) of the trailer, between the angle
support brackets (Fig. 6C).
A
C
B
C
