3
lci1.com 574-537-8900 Rev: 08.20.20CCD-0003866
Flow Max
™
40V Portable Power Cleaner
Installation and Owner’s Manual
(For Aftermarket Applications)

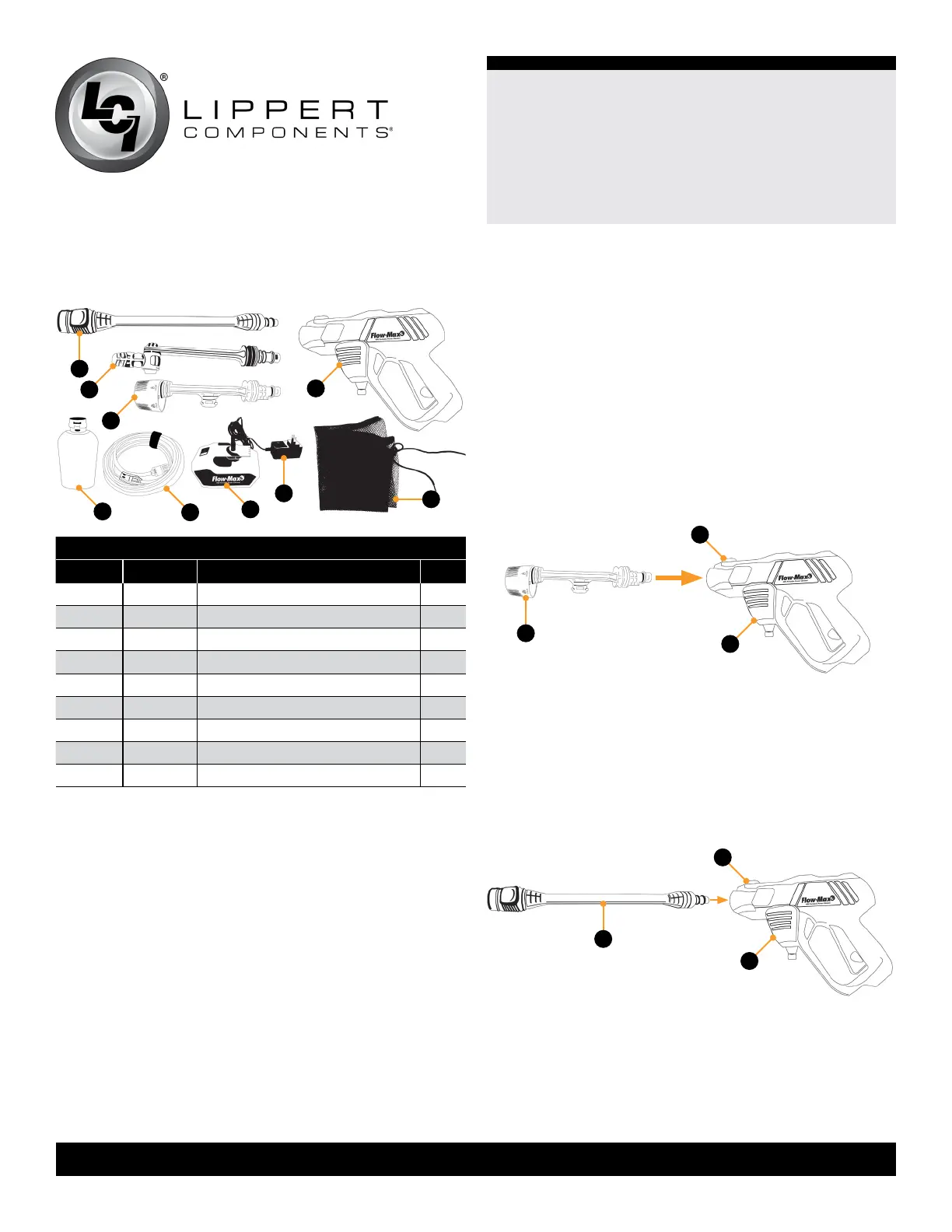

Parts List
Flow MaxFlow Max
TMTM
Power Cleaner Kit Power Cleaner Kit——202011765202011765
LetterLetter PNPN DescriptionDescription QtyQty
A NA Handle assembly 1
B NA Nozzle extension 1
C NA 360-degree nozzle 1
D NA 6-position nozzle 1
E NA Additive bottle 1
F NA Water supply hose with filter 1
G NA Battery (2.0 Ah, 40V) 2
H NA Battery charger 1
I NA Mesh fabric storage bag 1
NOTE: Part numbers are shown for identification purposes
only. Not all parts are available for individual sale. All parts
with a link to the Lippert Store can be purchased.
Assembly
The Flow Max Power Cleaner can be assembled into four
different configurations to accommodate the user and the
application.
• Handle assembly with 6-position nozzle
• Handle assembly with nozzle extension and 6-position
nozzle
• Handle assembly with 360-degree nozzle
• Handle assembly with nozzle extension and 360-degree
nozzle
NOTE: The additive bottle cannot be used with the
360-degree nozzle.
Nozzles
1. To only use the 6-position nozzle (Fig.1A):
A. Press and hold the lock button (Fig.1B) located on the
top of the handle assembly (Fig.1C) while inserting the
nozzle.
B. Release the lock button when the nozzle seats into
the handle assembly.
C
B
D
E
G
H
I
A
A
B
C
Fig.1
2. To use the nozzle extension (Fig.2A) with the 6-position
nozzle:
A. Press and hold the lock button (Fig.2B) located on the
top of the handle assembly (Fig.2C) while inserting the
nozzle extension.
B. Release the lock button when the extension seats into
the handle assembly.
B
A
C
Fig.2
C. Press and hold the lock button located at the end of
the extension (Fig.3A) while inserting the 6-position nozzle
(Fig.3B).
D. Release the lock button when the nozzle seats into
the extension.
F
