lci1.com 574 - 537- 8900 Rev:0 4.10.18
Flow Max
TM
Galley Faucets
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0001241

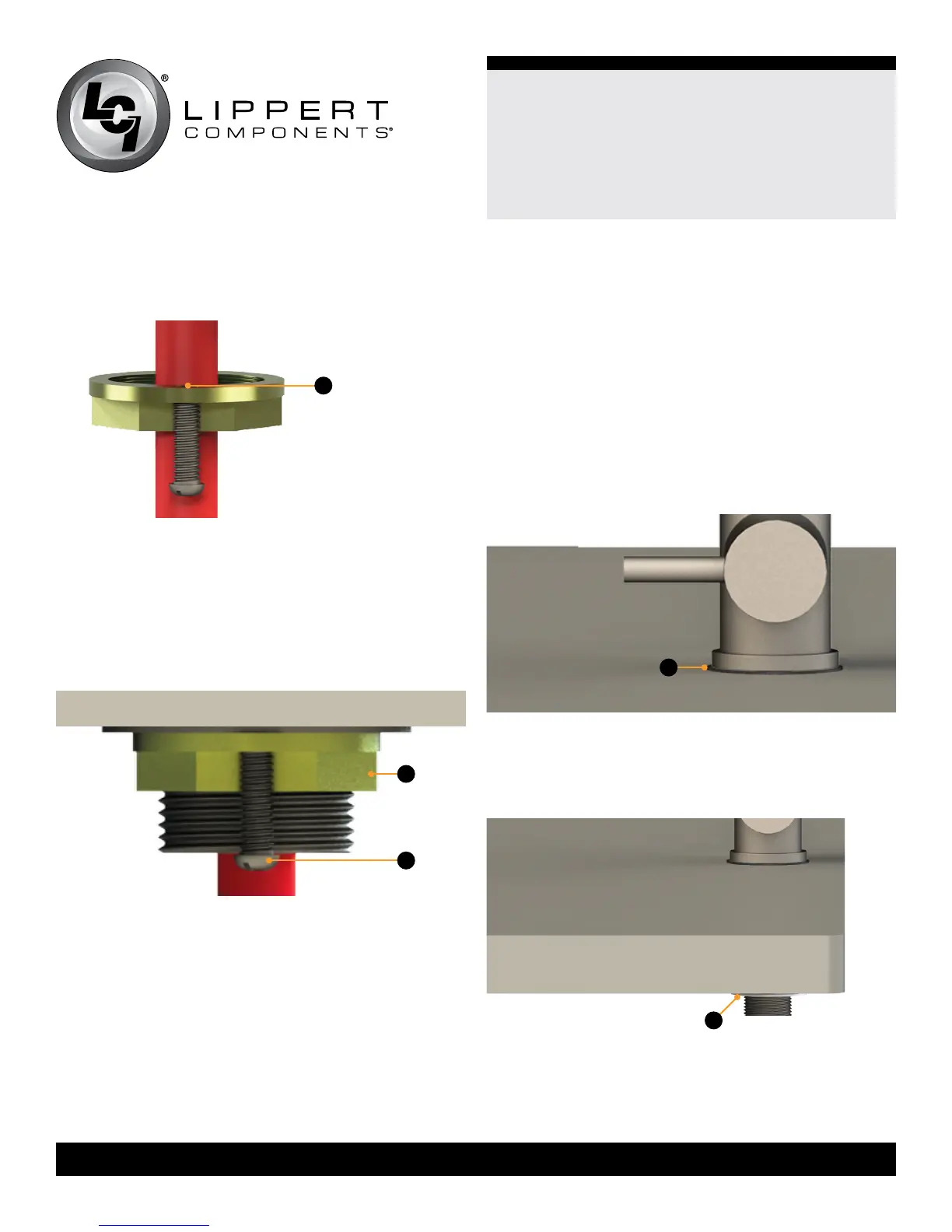

6. Make sure the two screws on the coupler are evenly
inserted and are ushed with the top of the coupler (Fig.4A).
7. Screw the coupler onto the faucet base all the way up to
the metal washer (Fig.5A).
NOTE: Make sure the handle of the faucet is placed in the
desired position.
8. Using a Phillips screwdriver, tighten the two screws
(Fig.5B) on the coupler to hold the coupler into place.
NOTE: The red marked supply line is for hot water and the
blue marked supply line is for the cold water.
9. Thread the nut on the hot water supply line onto the hot
water outlet supply valve and tighten with an adjustable
wrench. Do not over tighten.
10. Thread the nut on the cold water supply line onto
the cold water outlet supply valve and tighten with an
adjustable wrench. Do not over tighten.
11. Turn the hot and cold water outlet supply valves back on
and check for any leaks.
Pull Down Faucet
1. Unscrew the black plastic coupler from the faucet base
and slide off from the faucet assembly.
NOTE: Wiggle the plastic coupler off the supply lines one
line at a time.
2. Slide the clear plastic washer off the faucet assembly.
3. Place the faucet supply lines through the mounting
hole on the deck, making sure the black rubber washer
and faucet base are seated rmly on the deck of the sink
(Fig.6A).
4. Under the sink, slide the clear plastic washer over the
supply lines up to the underside of the sink deck and
covering the mounting hole (Fig.7A).
