Lippert Components Lippert Insight - Operation; Live View Adjustment; Camera Settings

Rev: 04.28.21 Page 8 CCD-0004030
Camera
Operation
1. When in full view (Fig. 20), you can use your thumb and index finger to "pinch zoom" the main viewing
area of the camera.
2. While zoomed in, a small full view window will appear in the lower right corner of the screen (Fig. 21A).
A. Use your index finger to move around the main zoomed in view.
B. Double tap the full view window (Fig. 21A) to return to full camera view (Fig. 20).
3. The gear icon (Fig.20A) may be used to view the current password or change it if desired.
A. Input new password and tap Update (Fig. 22A).
B. Remove Camera (Fig. 22B) will remove the camera connection to the OneControl app.
Troubleshooting
Note: The Lippert Back-up Camera is adjustable for acceptable visibility.
1. With a ladder, climb to location of the camera, which is located on the back of unit (Fig. 23).
2. Rotate camera up or down to achieve the desired view (Fig. 24).
A
B
A
A

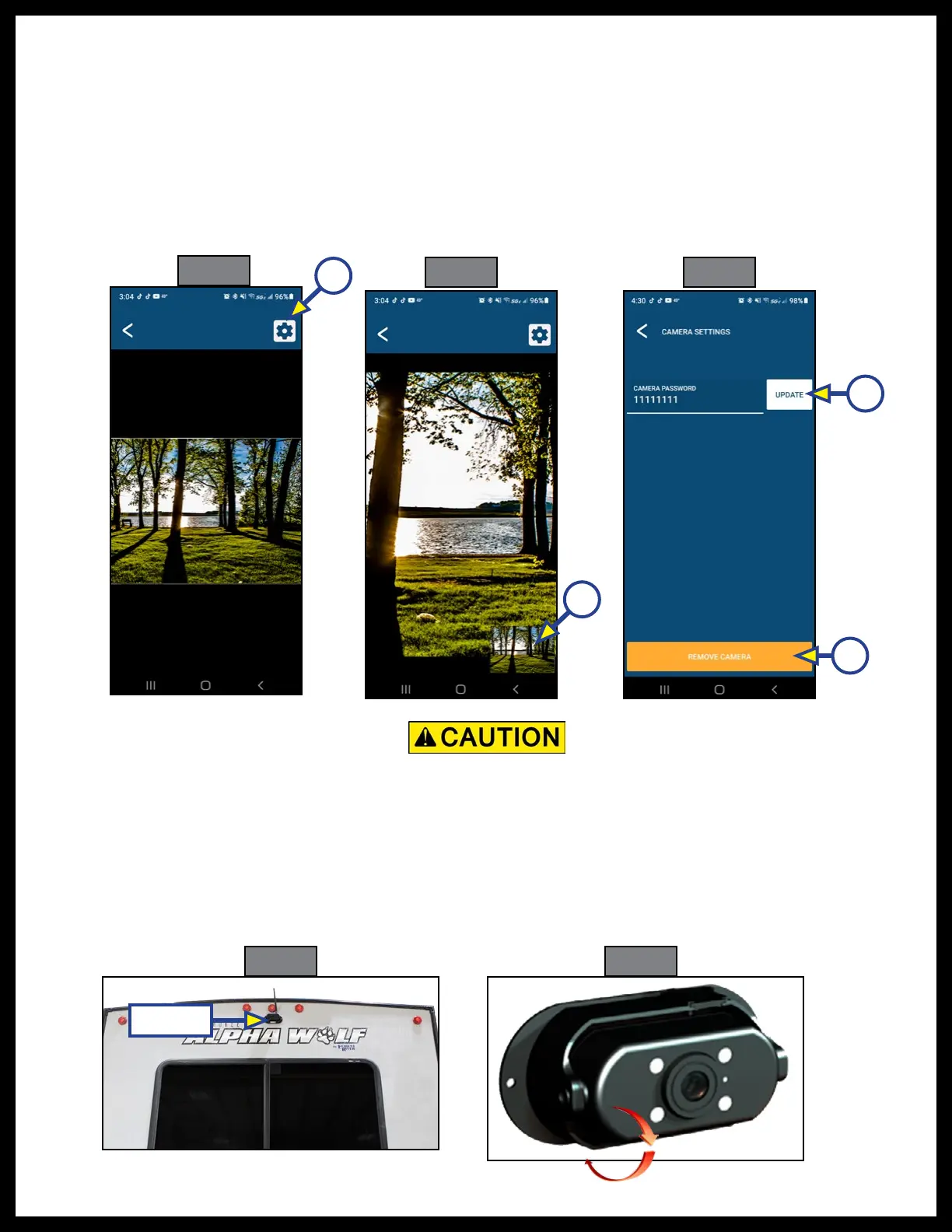

Fig. 20
Fig. 21 Fig. 22
Fig. 23
Fig. 24
Adhere to all product or tool safety labels and weight limits to prevent possible personal injury.
Do NOT exceed product/tool weight limits.
