Rev: 12.21.18 Page 7
CCD-0001440
7. Landing Gear, if equipped:
A. Pressing the Landing Gear icon (Fig. 2) will allow you to access the landing gear control screen (Fig. 10).
I. To extend the landing gear, press the EXTEND button (Fig. 10A).
II. To retract the landing gear, press the RETRACT button (Fig. 10B).
9. Lighting, if equipped:

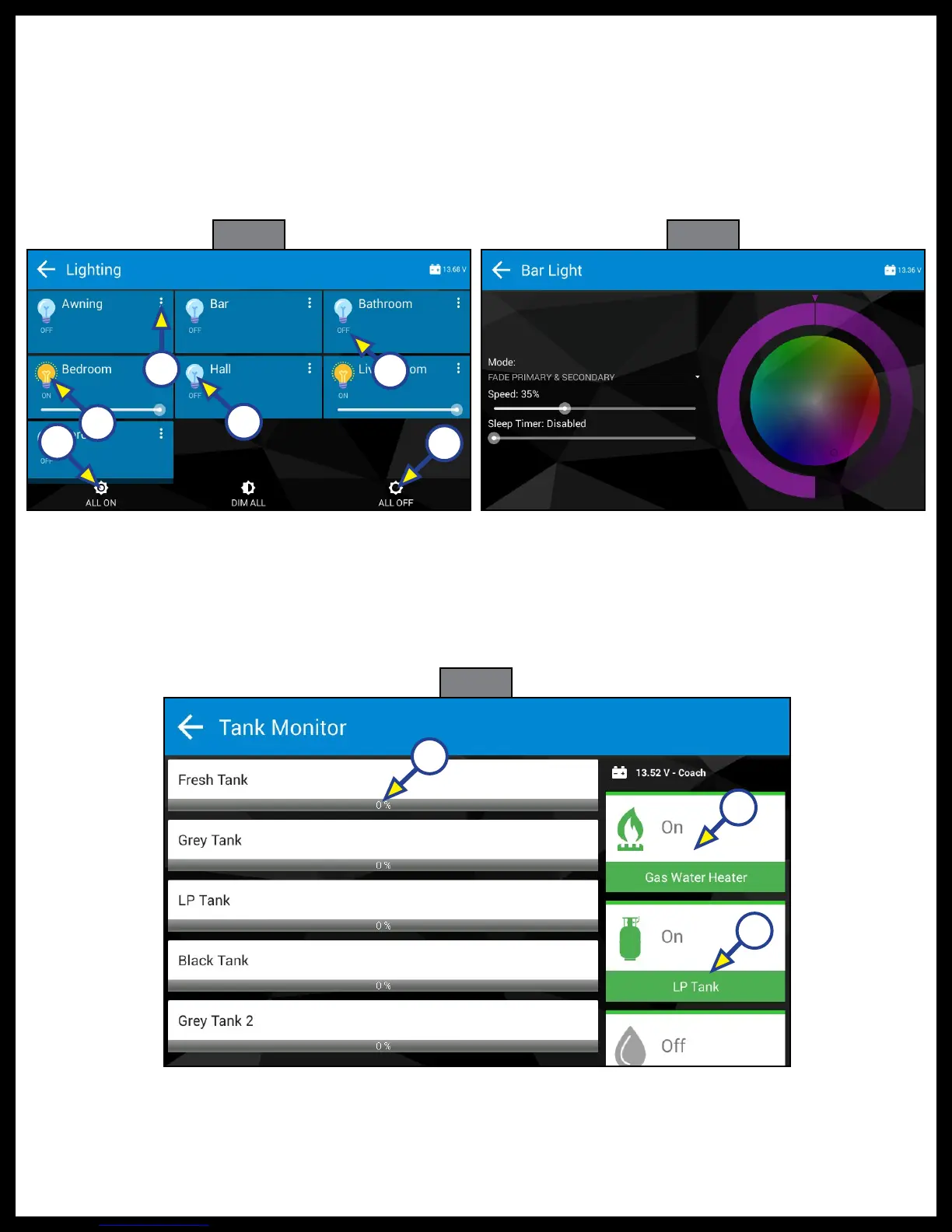

A. Pressing the Lighting icon (Fig. 2) will allow you to access the lighting control screen (Fig. 12).
I. Pressing the highlighted ALL ON or ALL OFF (Fig. 12A) will turn all lights on or off.
II. Pressing the highlighted ON or OFF (Fig. 12B) will turn individual lights on or off.
III. If the unit is equipped with colored lighting, pressing the settings icon (ellipsis) (Fig. 12C) will
allow the adjustment of the light name, mode, color, intensity and speed (Fig. 13).
NOTE: Status of individual lights is displayed by the light bulb to the left of the light name. The light icon
will display a lit bulb (Fig. 12D) if the light is on and a dim bulb (Fig. 12E) if the light is off.
10. Tank Monitor, if equipped:
A. Pressing the Monitor Panel icon (Fig. 2) will allow you to access the tank monitor control
screen (Fig. 14).
B. The monitor tank capacity levels (Fig. 14A) to the left will show current fill levels for a given tank.
C. Pressing the device buttons on the right (Fig. 14B) will activate the component. The icon to the
right will turn green when the corresponding device is in use (Fig. 14C).
A
A
B
C
D
E
Fig. 12 Fig. 13
C
B
Fig. 14
A
