Lippert Components Stabilizer Jack User Manual

Rev: 10.09.2017
Page 7
Electric Stabilizer Jack Owners Manual

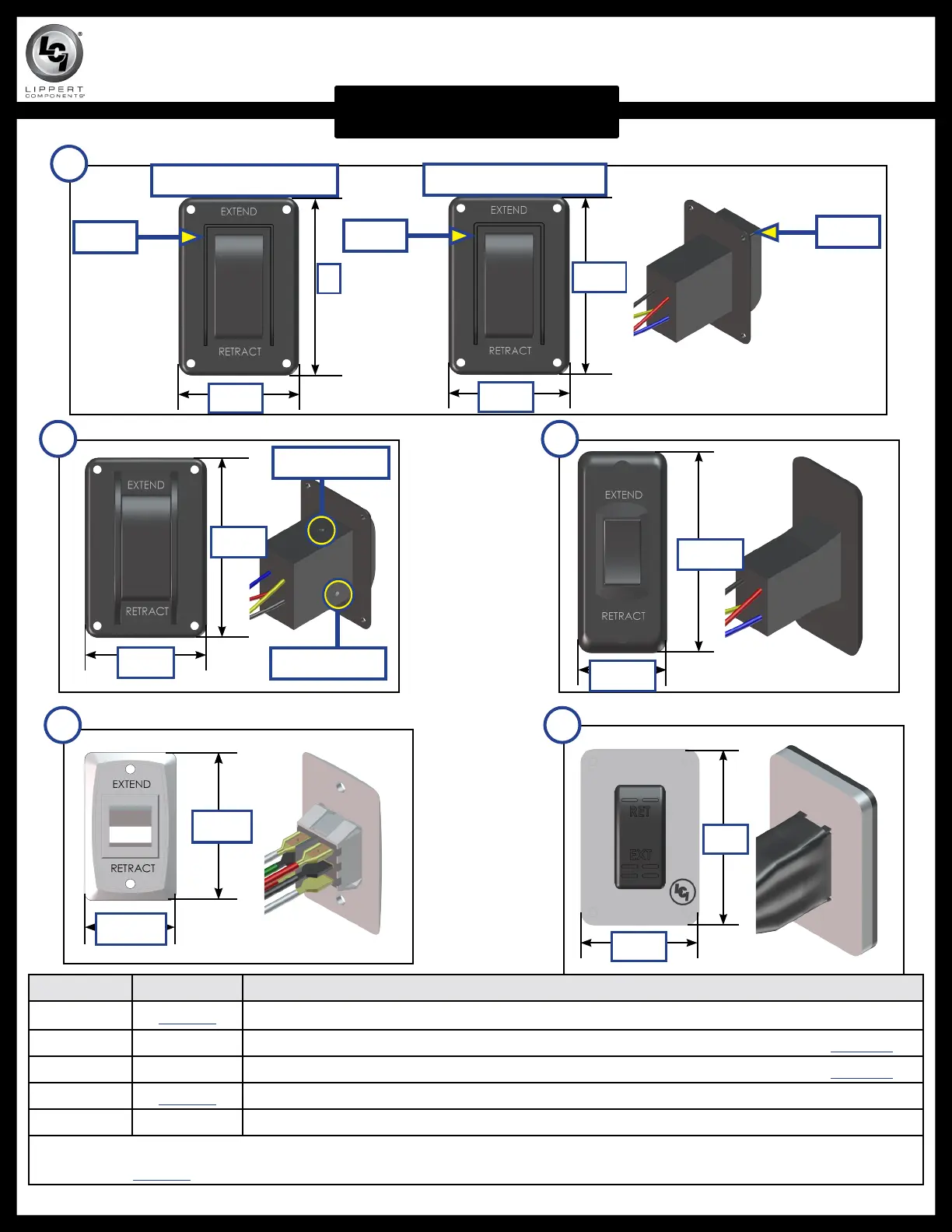

ELECTRIC STABILIZER JACK COMPONENTS
LEVELING AND STABILIZATION
1.80"
"
Hood
Hood
Original Dimensions
2.25"
3.25"
Hood
Current Dimensions
A
1.625"
3.625"
C
2.25"
3.25"
Weep Holes
Weep Holes
B
2.75"
1.625"
D
3.3"
2.22"
E
Callout Part # Description
A
387874 Waterproof Electric Stabilizer Jack Switch with Harness
B 344484*
Waterproof Electric Stabilizer Jack Switch with Harness (OBSOLETE - Use 387874)
C 242409*
Waterproof Electric Stabilizer Jack Switch with Harness (OBSOLETE - Use 387874)
D
144214 Non-Waterproof Electric Stabilizer Jack Switch with Bezel and Harness
E 138415 Non-Waterproof Electric Stabilizer / Hydraulic Landing Gear Switch
NOTE: (*) When purchasing a switch for exterior use without a waterproof enclosure box, purchase
387874.
